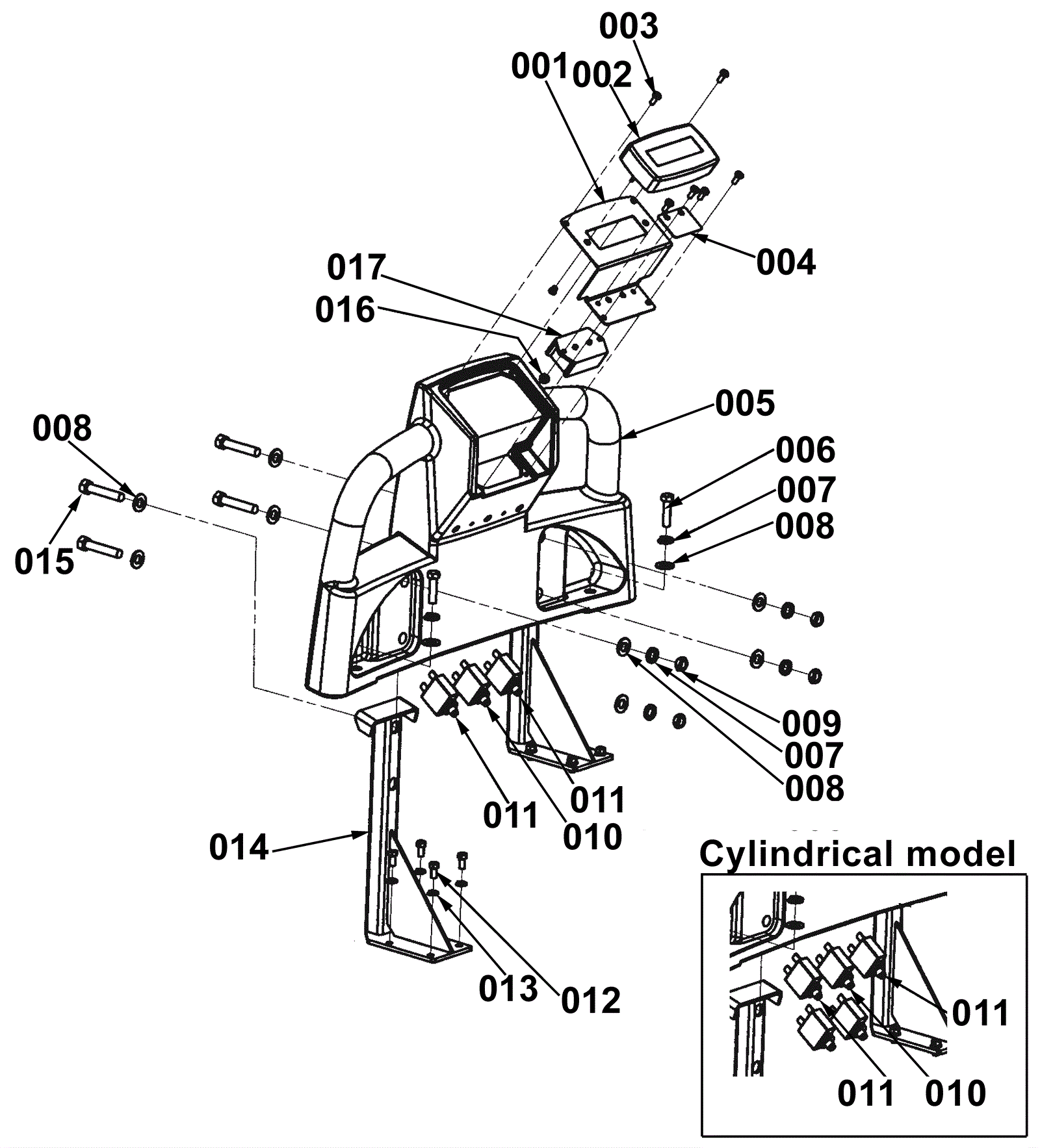

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-7299
|
LCD display module |
1 |
|
|
002 |
170-7298
|
LCD control panel display |
1 |
|
|
003 |
999-0723
|
Screw 10-32 x 1/2 pan head slotted stainless steel |
6 |
|
|
004 |
270-0121
|
Solution level decal (OBSOLETE) |
1 |
|
|
005 |
170-7296
|
Front cover (OBSOLETE) |
1 |
|
|
006 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
|
007 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
6 |
|
|
008 |
999-0032
|
Washer 3/8 USS flat plain finish |
10 |
|
|
009 |
999-0170
|
Nut 3/8-16 hex plain finish |
4 |
|
|
010 |
991-1625
|
30amp circuit breaker |
1 x 3 |
(brush) |
|
011 |
991-1627
|
5amp circuit breaker |
2 |
(main/key switch) |
|
012 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
8 |
|
|
013 |
999-0060
|
Washer 1/4 split lock plain finish |
8 |
|
|
014 |
170-8878
|
Cover mount (OBSOLETE) |
2 |
|
|
015 |
999-0550
|
Bolt 3/8-16 x 2 hex head stainless steel |
4 |
|
|
016 |
999-0460
|
Nut 10-32 hex |
2 |
|
|
017 |
170-7297
|
Solution level module |
1 |
|
|
