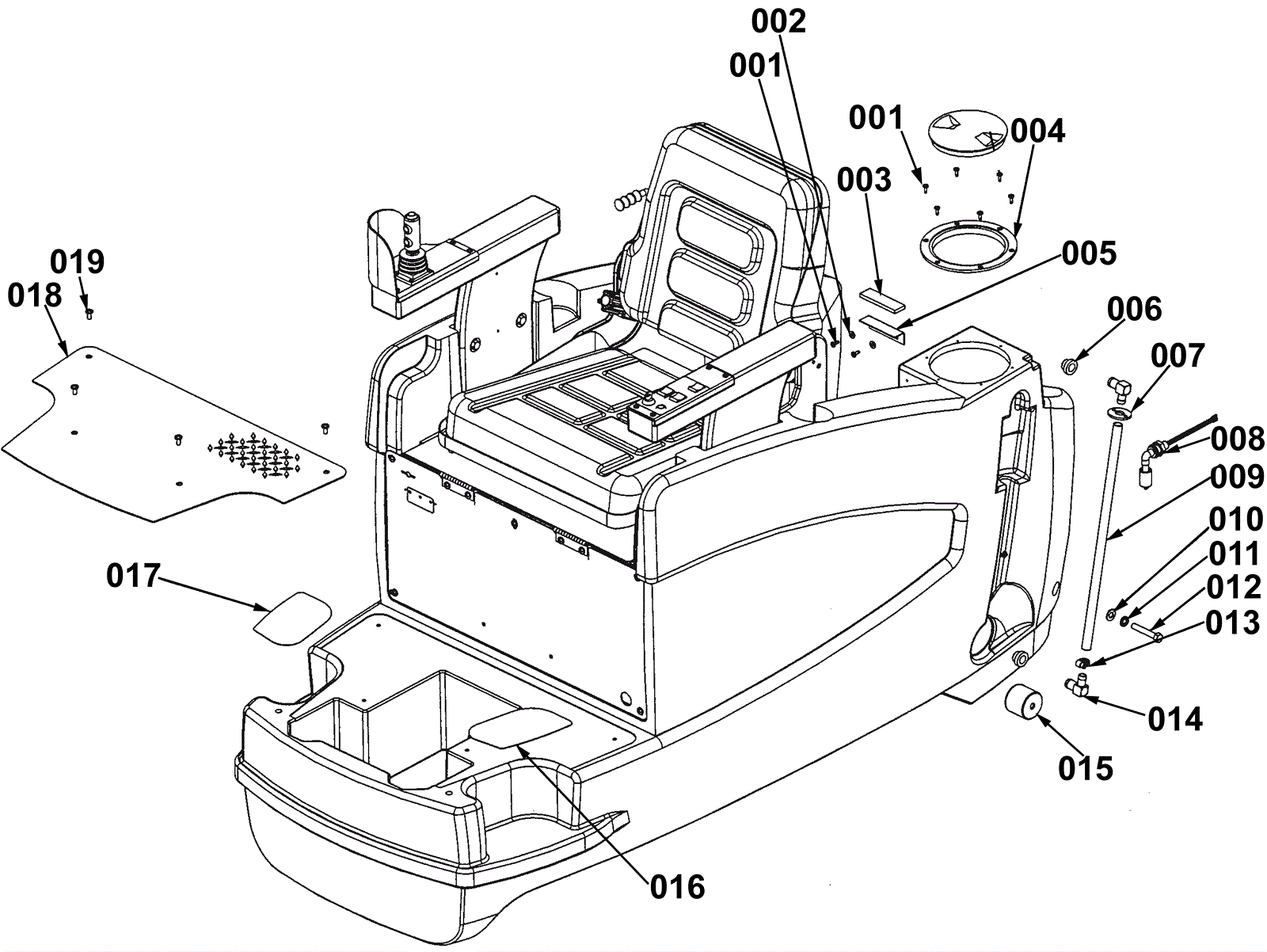

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
8 |
|
|
003 |
170-7289
|
Gasket |
1 |
|
|
004 |
170-7290
|
Solution tank lid (OBSOLETE) |
1 |
|
|
006 |
170-1387
|
Bushing fitting |
2 |
|
|
007 |
170-7293
|
Sight tube washer |
1 |
|
|
008 |
170-7270
|
Water level sensor (OBSOLETE) |
1 |
|
|
009 |
170-7294
|
Solution level indicator hose |
1 |
|
|
010 |
999-0032
|
Washer 3/8 USS flat plain finish |
10 |
|
|
011 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
10 |
|
|
012 |
999-1079
|
Bolt 3/8-16 x 2 1/4 hex head grade 5 zinc plated |
2 |
|
|
013 |
997-2002
|
Hose clamp #6 |
1 |
|
|
014 |
170-1386
|
Hosebarb |
2 |
|
|
015 |
170-7282
|
Pivot (OBSOLETE) |
2 |
|
|
016 |
170-7295
|
Left solution tank step pad |
1 |
|
|
017 |
170-7300
|
Right solution tank step pad |
1 |
|
|
018 |
170-7301
|
Deck plate (OBSOLETE) |
1 |
|
|
019 |
999-0343
|
Screw 1/4-20 x 1/4 pan head phillips stainless steel |
4 |
|
|
