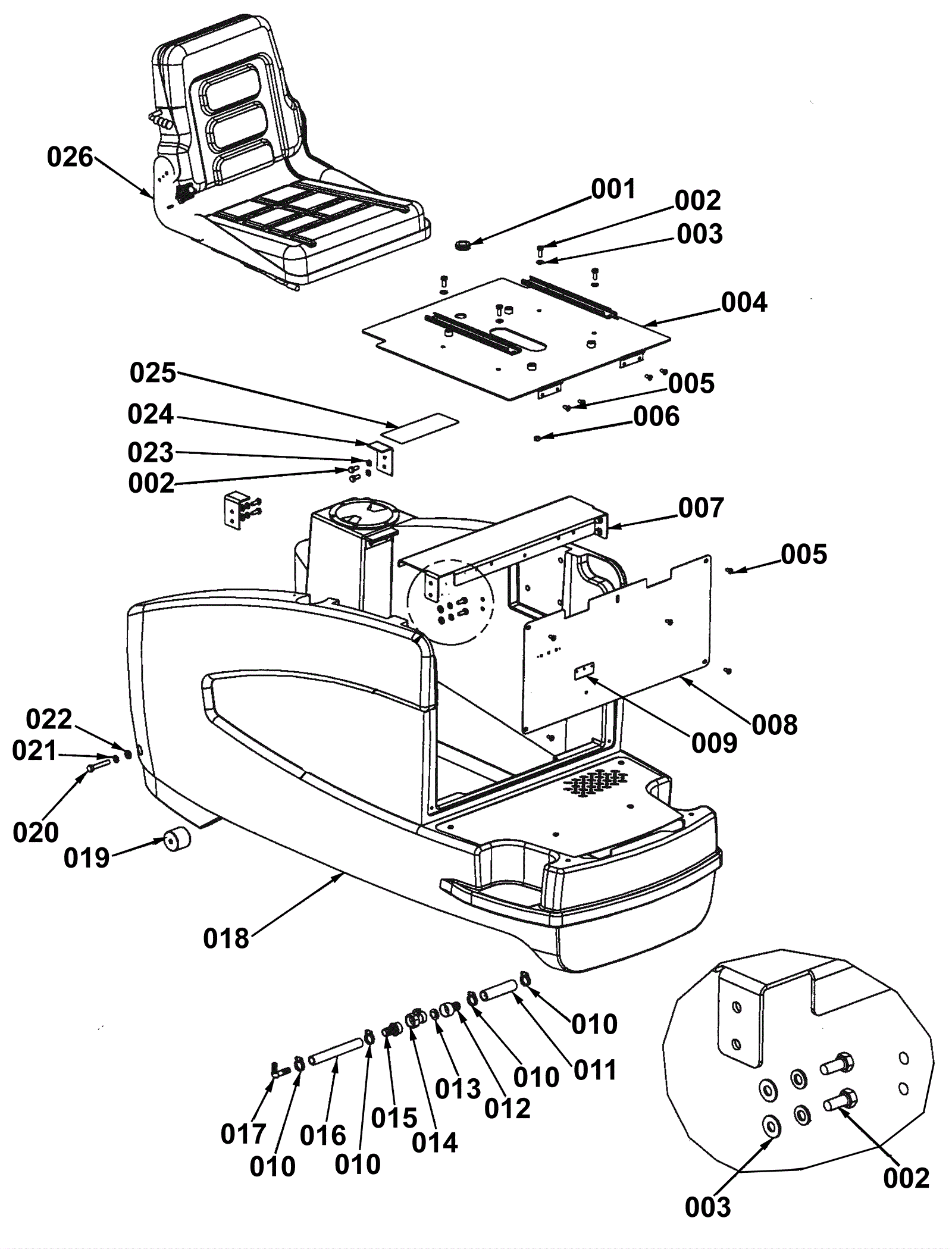

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-0776
|
Rubber grommet |
1 |
|
|
002 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
12 |
|
|
003 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
13 |
|
|
004 |
170-7275
|
Seat support plate (OBSOLETE) |
1 |
|
|
005 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
9 |
|
|
006 |
999-0593
|
Nut 5/16-18 hex stainless steel |
1 |
|
|
007 |
170-7277
|
Seat assembly mount (OBSOLETE) |
1 |
|
|
010 |
997-2002
|
Hose clamp #6 |
4 |
|
|
011 |
170-7280
|
Hose 5/8 x 4 inch |
1 |
|
|
012 |
170-7103
|
Connector |
1 |
|
|
013 |
164-0065
|
Filter screen |
1 |
|
|
015 |
170-0264
|
Hose barb |
1 |
|
|
016 |
170-7102
|
Solution hose |
1 |
|
|
017 |
170-7287
|
90 degree strainer |
1 |
|
|
019 |
170-7282
|
Pivot (OBSOLETE) |
2 |
|
|
020 |
999-1079
|
Bolt 3/8-16 x 2 1/4 hex head grade 5 zinc plated |
2 |
|
|
021 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
022 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
023 |
999-0028
|
Washer 5/16 split lock plain finish |
8 |
|
|
024 |
170-7284
|
Seat stop bracket (OBSOLETE) |
2 |
|
|
025 |
170-7288
|
Battery installation decal (OBSOLETE) |
1 |
|
|
