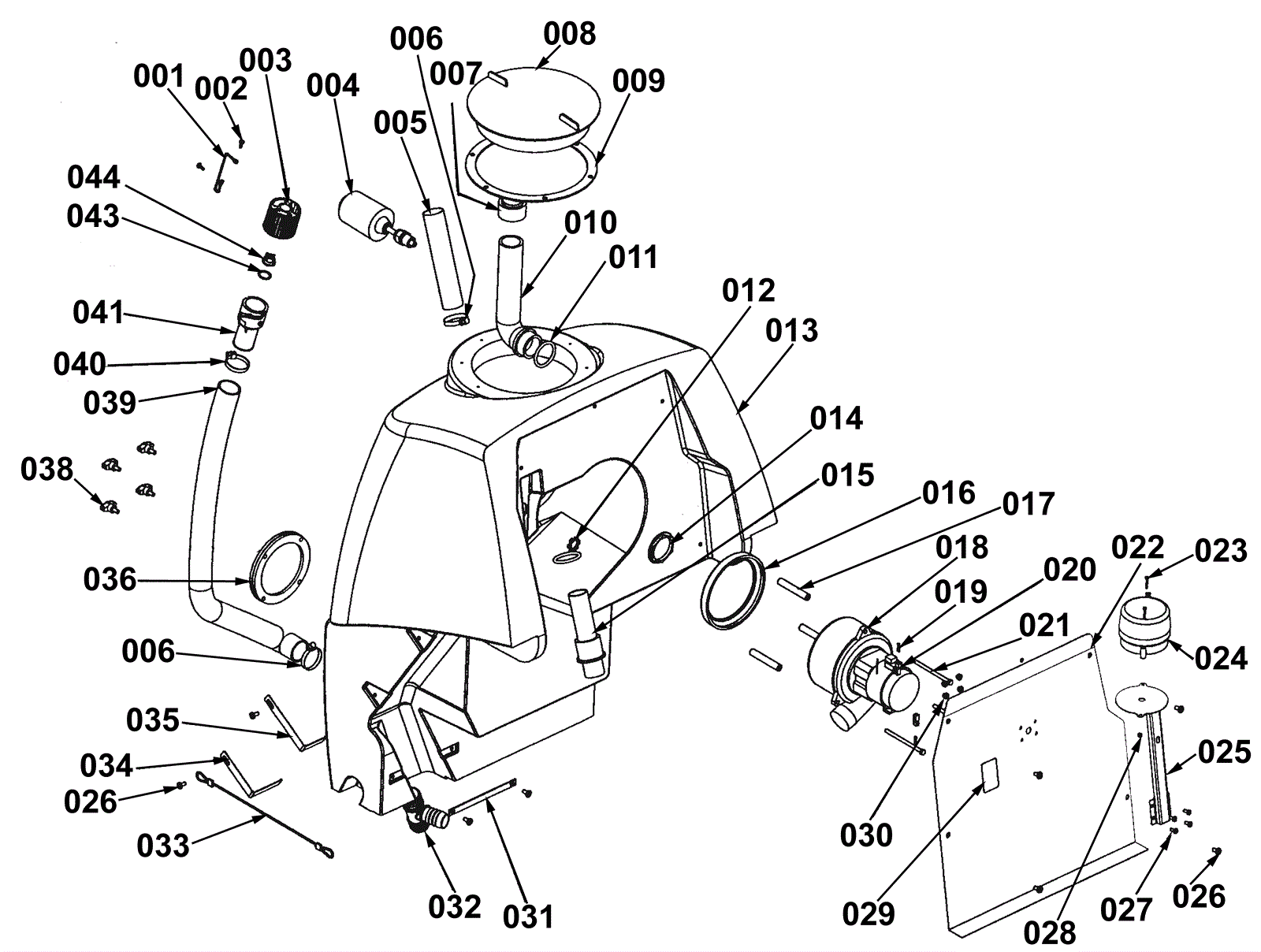

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-0268
|
Drain chain assembly |
1 |
|
|
002 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
2 |
|
|
003 |
170-7251
|
Drain hose housing |
1 |
|
|
004 |
170-7081
|
Float switch (includes strain relief) |
1 |
|
|
005 |
170-7252
|
Vacuum exhaust hose |
1 |
|
|
006 |
997-2000
|
Hose clamp |
1 |
|
|
007 |
170-7104
|
Vacuum filter screen |
1 |
|
|
008 |
170-7253
|
Recovery tank lid (OBSOLETE) |
1 |
|
|
009 |
170-7254
|
Recovery tank lid gasket (OBSOLETE) |
1 |
|
|
010 |
170-1361
|
Vacuum standpipe |
1 |
|
|
011 |
170-0273
|
O-ring |
2 |
|
|
012 |
170-0294
|
Nut 1/2 conduit lock |
1 |
|
|
013 |
170-7256
|
Recovery tank |
1 |
|
|
014 |
170-0647
|
Lock nut |
1 |
|
|
015 |
170-7257
|
Straight tube (OBSOLETE) |
1 |
|
|
016a |
164-0881
|
Vacuum motor gasket |
1 |
|
|
016b |
991-3029
|
Vacuum motor gasket |
1 |
(NON-OEM) |
|
017 |
170-0274
|
Vacuum motor spacer |
3 |
|
|
018a |
270-0102
|
36V 3 stage vacuum motor |
1 |
(Alto-Clarke) |
|
018b |
991-1202
|
36V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
|
018c |
991-1222
|
Plastic covered carbon brush (sold individually) |
2 |
|
|
019 |
170-0279
|
Contact |
2 |
|
|
020 |
170-0280
|
Connector housing (black) |
2 |
|
|
021 |
999-0165
|
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
3 |
|
|
022 |
170-7258
|
Access panel |
1 |
|
|
023 |
999-0656
|
Screw #6-32 x 7/8 pan head phillips zinc plated |
2 |
(optional) |
|
024 |
170-7259
|
Strobe light |
1 |
(optional) |
|
025 |
170-7260
|
Strobe light bracket (OBSOLETE) |
1 |
(optional) |
|
026 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
8 |
|
|
027 |
999-0723
|
Screw 10-32 x 1/2 pan head slotted stainless steel |
4 |
(optional) |
|
028 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
|
029 |
170-0230
|
Falling parts warning decal |
1 |
|
|
030 |
999-0460
|
Nut 10-32 hex |
4 |
(optional) |
|
031 |
170-7262
|
Lower hose retainer |
1 |
|
|
032 |
170-7261
|
Hose coupler |
1 |
|
|
033 |
170-7263
|
Cable (OBSOLETE) |
1 |
|
|
034 |
170-7264
|
Middle hose retainer |
1 |
|
|
035 |
170-7265
|
Upper hose retainer (OBSOLETE) |
1 |
|
|
036 |
170-7266
|
Clean-out gasket |
1 |
(optional) |
|
038 |
170-7268
|
Knob |
4 |
(optional) |
|
039 |
170-1819
|
Drain hose (OBSOLETE) |
1 |
|
|
040 |
164-0218
|
Nylon hose clamp |
2 |
|
|
041 |
170-7269
|
Drain valve (OBSOLETE) |
1 |
|
|
043 |
170-7271
|
O-ring |
1 |
|
|
044 |
170-7272
|
Drain plug |
1 |
|
|
N/S |
170-1792
|
Hose connector |
1 |
|
|
N/S |
170-7274
|
Vacuum hose with cuff (OBSOLETE) |
1 |
|
|
N/S |
170-7270
|
Water level sensor (OBSOLETE) |
1 |
(optional) |
|
N/S |
170-7267
|
Clean-out drain |
1 |
(optional) |
|
N/S |
170-7273
|
Squeegee vacuum hose |
1 |
|
|
