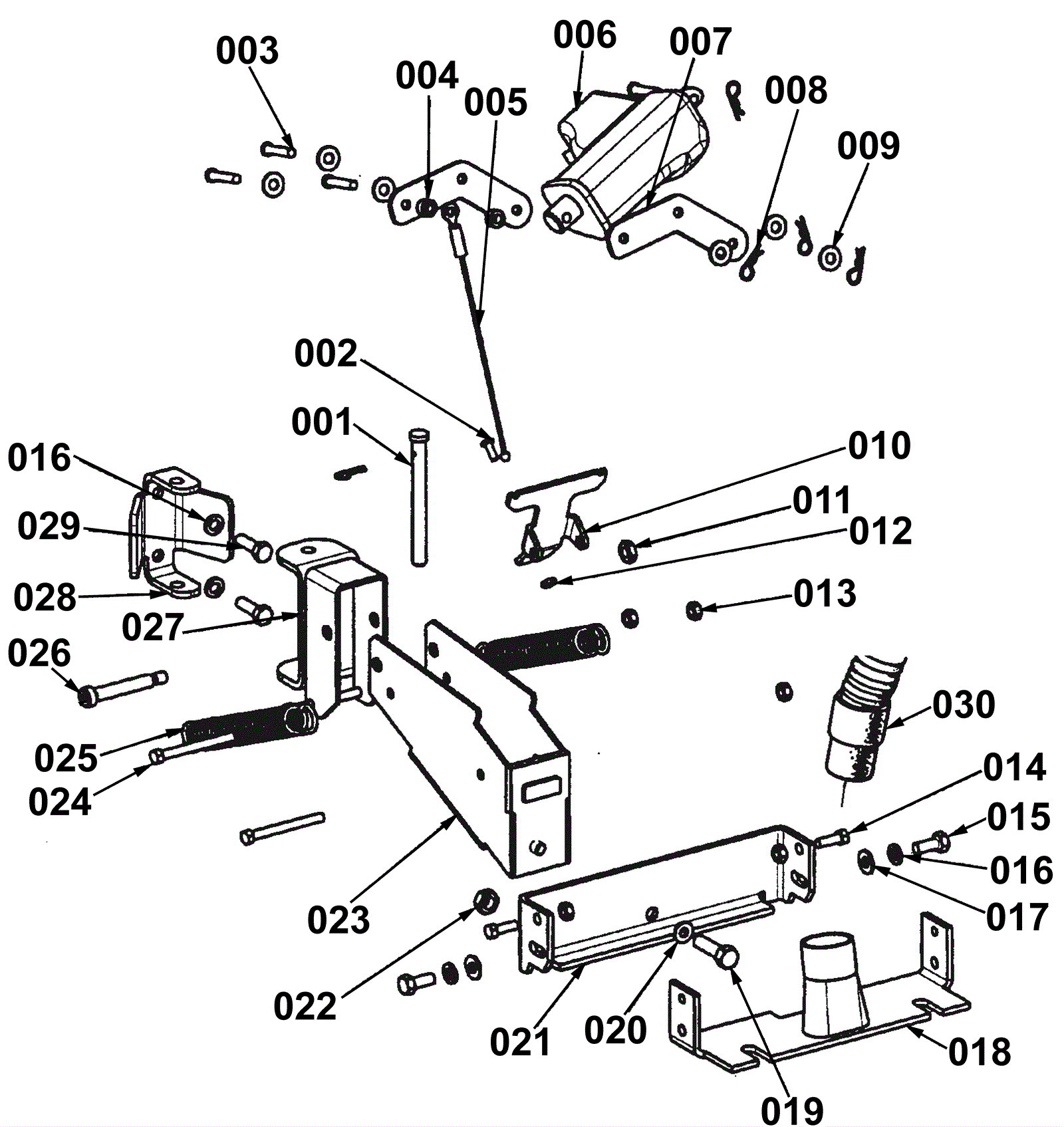

FOCUS 34 DISK Rear Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-0145 Clevis pin $11.99 1 usually ships 16-41 days
002 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
003 170-8994 Clevis pin (OBSOLETE) $10.52 4 usually ships 1-5 days
004 170-7363 Spacer (OBSOLETE) $8.80 2 usually ships 16-41 days
005 170-8166 Squeegee lift cable $40.45 1 usually ships 16-41 days
006 170-7364 Squeegee actuator $761.01 1 usually ships 16-41 days
007 170-7365 Pivot $16.28 2 usually ships 1-5 days
008 170-0135 Cotter pin (OBSOLETE) $11.99 5 usually ships 16-41 days
009 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
010 170-7366 Spring lever (OBSOLETE) $41.15 1 usually ships 16-41 days
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
013 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
014 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
015 999-1186 Screw 5/16-24 x 3/4 hex head $11.99 2 ships same day
016 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
017 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
018 170-7119 Squeegee hose bracket $103.26 1 usually ships 16-41 days
019 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 1 ships same day
020 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
021 170-7118 Squeegee mounting bracket $168.21 1 usually ships 16-41 days
022 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
023 170-7367 Rear arm weldment $320.45 1 usually ships 1-5 days
024 999-1187 Bolt 1/4-20 x 2 1/2 hex head stainless steel $2.22 2 ships same day
025 170-7116 Squeegee pressure spring $11.99 2 usually ships 16-41 days
026 170-2069 Screw 3/8-16 x 2 shoulder $11.75 2 usually ships 1-5 days
027 170-7368 Front arm mount $115.30 1 usually ships 1-5 days
028a 170-7369 Squeegee mount bracket $46.20 1 (rotary) usually ships 1-5 days
028b 170-8898 Squeegee mount bracket $120.37 1 (cylindrical) usually ships 1-5 days
029 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
030 170-7273 Squeegee vacuum hose $26.92 1 usually ships 16-41 days
