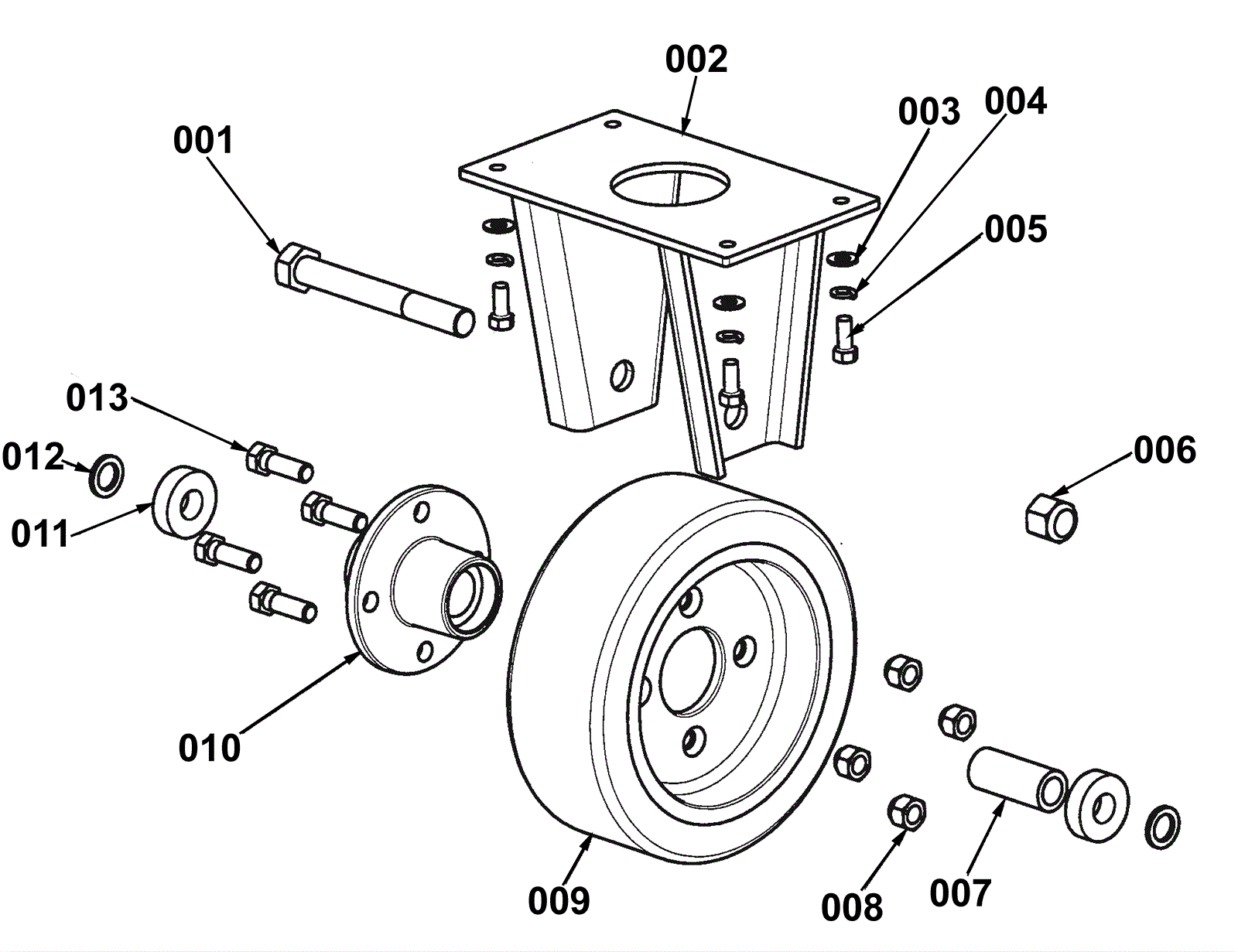

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-1197
|
Bolt 3/4-16 x 6 hex head grade 5 plain finish |
1 |
|
|
002 |
170-7357
|
Steering yoke weldment (OBSOLETE) |
1 |
|
|
003 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
004 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
4 |
|
|
005 |
999-0812
|
Screw 3/8-16 x 7/8 hex head grade 5 plain finish |
4 |
|
|
006 |
170-7358
|
Nut 3/4-16 |
1 |
|
|
007 |
N/A
|
Not available |
1 |
(Spacer) (available with 010) |
|
008 |
170-7142
|
Nut 1/2-20 lug (OBSOLETE) |
4 |
|
|
009 |
170-8885
|
10 inch solid wheel |
1 |
|
|
010 |
270-0120
|
Front wheel hub assembly |
1 |
(includes 007, 011 and 012) |
|
011 |
N/A
|
Not available |
2 |
(Bearing) (available with 010) |
|
012 |
N/A
|
Not available |
2 |
(Spacer) (available with 010) |
|
013 |
999-0711
|
Bolt 1/2-20 x 1 1/2 hex head grade 5 zinc plated |
4 |
|
|
