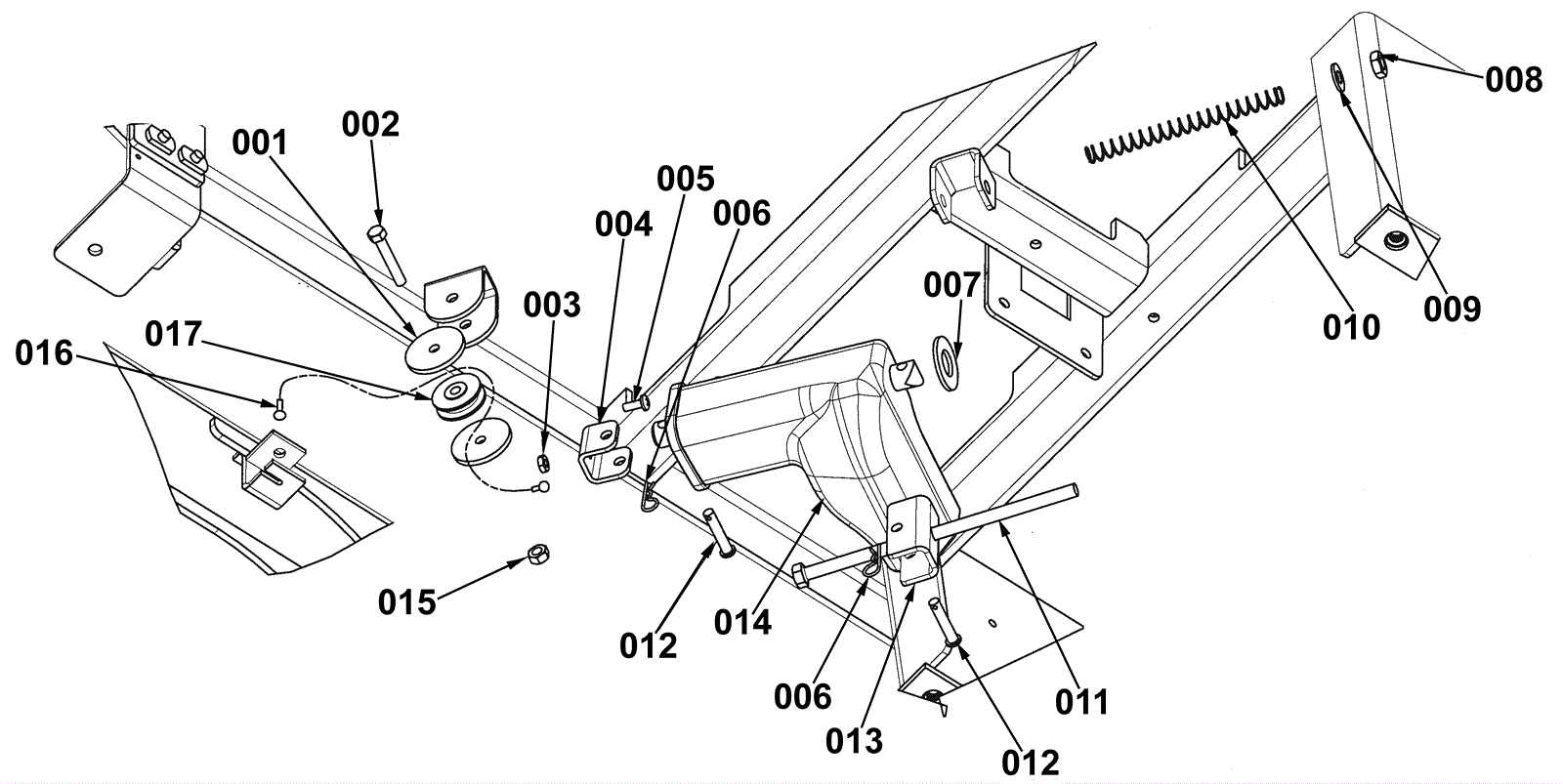

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-7115
|
Washer 1 1/2 x 1/8 flat nylon |
2 |
|
|
002 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
|
|
003 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
004 |
170-8901
|
Squeegee lift cable bracket (OBSOLETE) |
1 |
|
|
005 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
1 |
|
|
006 |
170-0135
|
Cotter pin (OBSOLETE) |
2 |
|
|
007 |
999-0349
|
Washer 5/8 SAE flat |
1 |
|
|
008 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
009 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
010 |
170-8992
|
Actuator spring (OBSOLETE) |
1 |
|
|
011 |
999-1358
|
Screw 5/8-18 x 7 hex head stainless steel |
1 |
|
|
012 |
170-8994
|
Clevis pin (OBSOLETE) |
2 |
|
|
013 |
170-7249
|
Rear mount actuator bracket (OBSOLETE) |
1 |
|
|
014 |
170-7250
|
Squeegee lift actuator |
1 |
|
|
015 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
016 |
170-8168
|
Squeegee lift cable (OBSOLETE) |
1 |
|
|
017 |
372-2615
|
Squeegee pulley cable |
1 |
|
|
