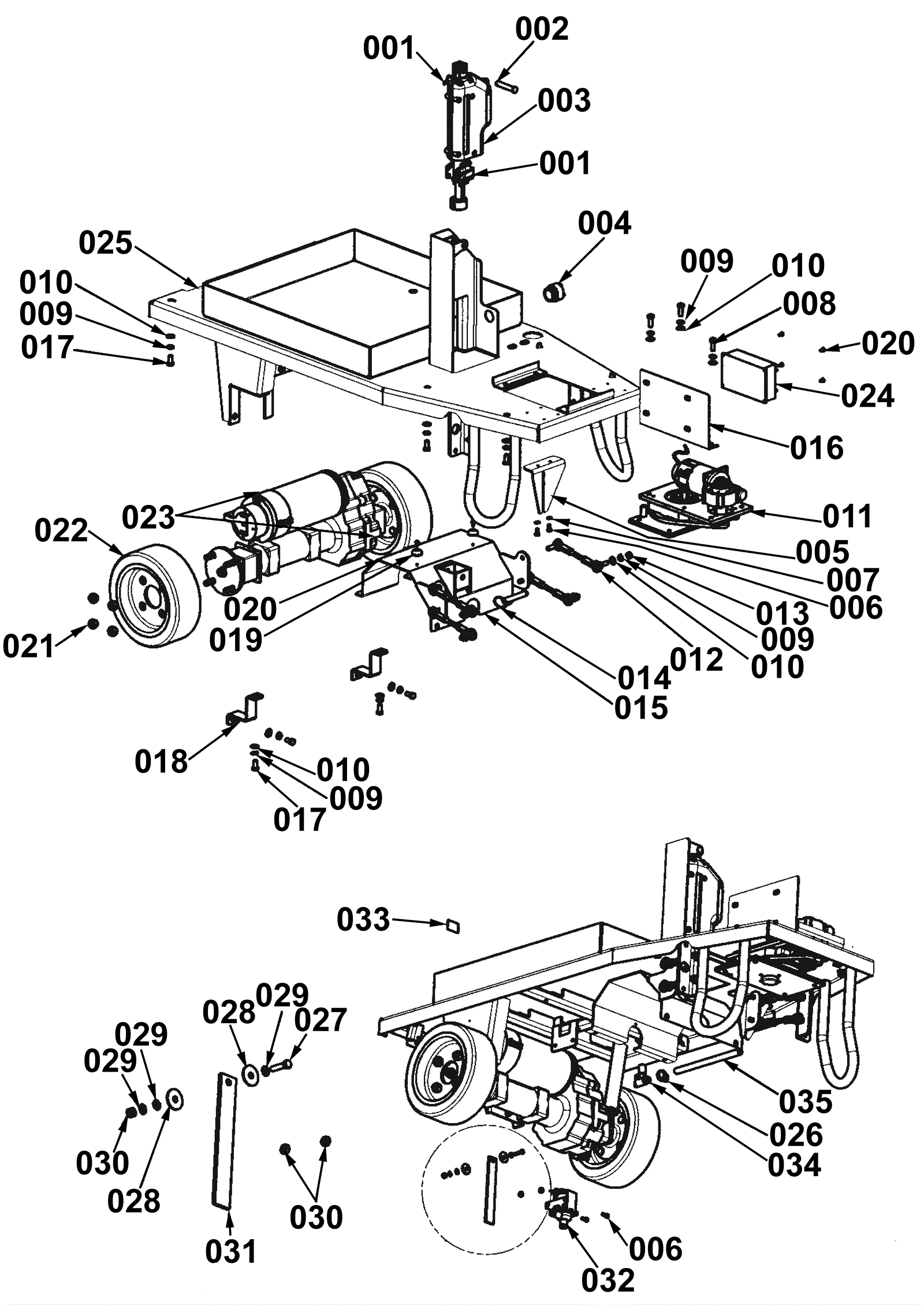

FOCUS BOOST 32 Frame Assembly - Cylindrical and BOOST

#PartDescriptionPriceReqNotesAvailability
001a 170-8231 Potentiometer and circuit board $581.79 1 usually ships 16-41 days
001b 270-0118 Potentiometer housing $101.34 1 usually ships 16-41 days
001c 997-2516 Cotter pin $0.99 1 ships same day
002 170-0196 Clevis pin $12.31 1 usually ships 16-41 days
003 170-8876 Head lift actuator $1,817.20 1 usually ships 16-41 days
004 170-8877 Horn $190.08 1 usually ships 1-5 days
005 170-8898 Squeegee mount bracket $120.37 1 usually ships 1-5 days
006 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
007 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
008 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 3 ships same day
009 999-0659 Washer 3/8 medium split lock stainless steel $0.39 17 ships same day
010 999-0032 Washer 3/8 USS flat plain finish $2.42 17 ships same day
011 170-8879 Power steering assembly $3,052.31 1 usually ships 1-5 days
012 170-8880 Rod linkage $132.00 4 usually ships 1-5 days
013 999-0169 Nut 3/8-24 hex jam plain finish $0.99 8 ships same day
014 170-8881 Quick release pin $15.70 1 usually ships 1-5 days
015 170-8883 Head carriage weldment $490.19 1 usually ships 1-5 days
016 170-8896 Steering controller bracket (OBSOLETE) $55.24 1 usually ships 1-5 days
017 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 10 ships same day
018 170-8884 Transaxle clamp (OBSOLETE) $25.63 2 usually ships 1-5 days
019 170-1290 Bumper $12.31 2 usually ships 1-5 days
020 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 6 ships same day
021 170-7142 Nut 1/2-20 lug (OBSOLETE) $10.85 8 usually ships 16-41 days
022 170-8885 10 inch solid wheel $521.29 2 usually ships 16-41 days
023a 170-8886 Transaxle $3,400.56 1 usually ships 1-5 days
023b 170-8887 Transaxle brake (OBSOLETE) $471.23 1 usually ships 1-5 days
024 170-8894 Steering controller $1,868.72 1 usually ships 1-5 days
025 170-8891 Mainframe weldment $3,139.44 1 usually ships 1-5 days
026 997-2001 Hose clamp $2.42 1 ships same day
027 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 1 ships same day
028 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 2 ships same day
029 999-0017 Washer 1/4 external star lock $0.99 3 ships same day
030 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
031 170-7146 Static strap $13.76 1 usually ships 16-41 days
032 170-7011 Solenoid valve $254.96 1 usually ships 1-5 days
033 170-2531 Solution tank clamp grip $3.34 1 usually ships 1-5 days
034 170-7101 Battery drain valve $13.76 1 usually ships 16-41 days
035 170-7018 Hose $10.85 1 usually ships 16-41 days
