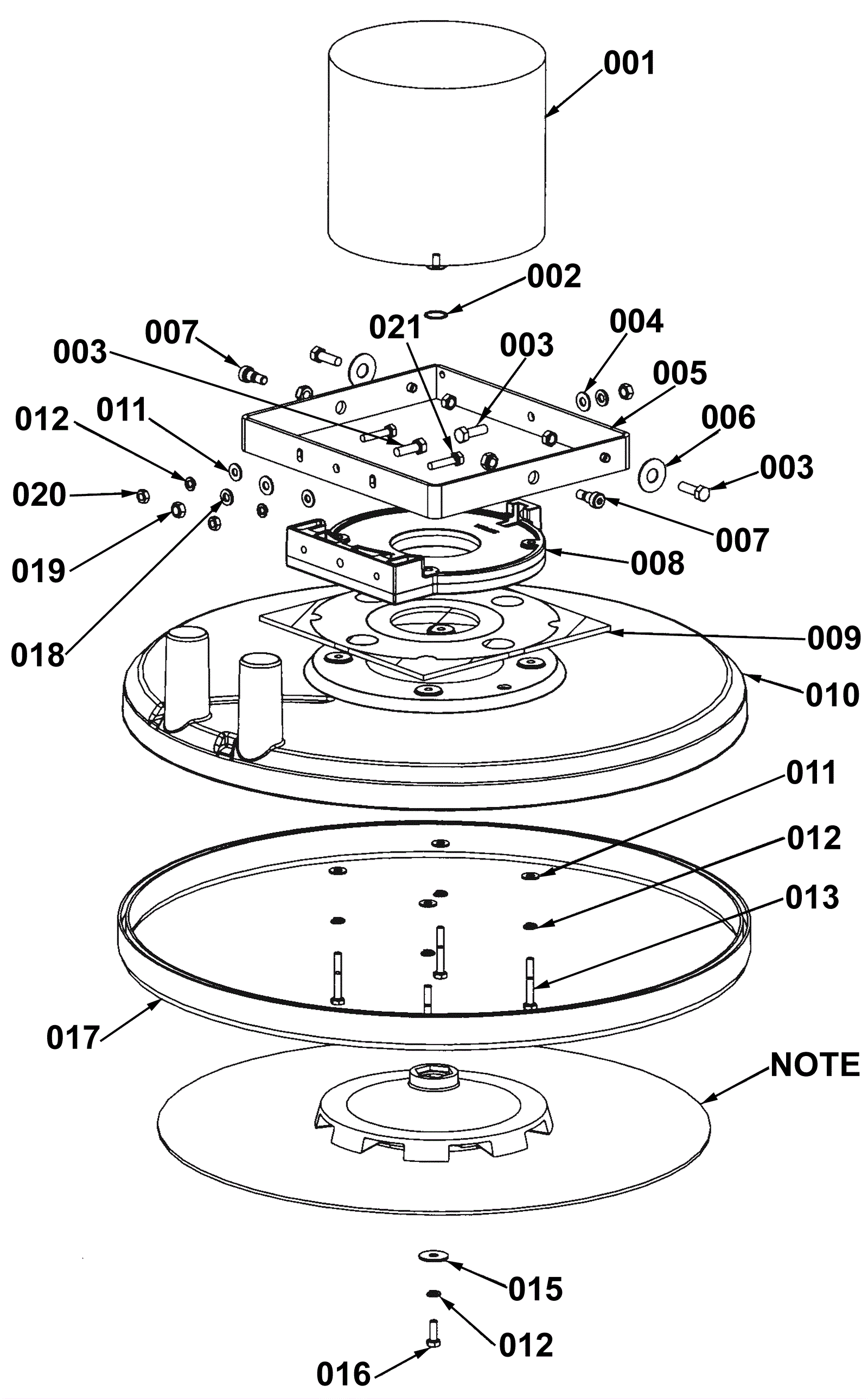

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
272-8458
|
36V 2.5HP brush motor |
1 |
|
|
001b |
172-2818
|
Carbon brush (pkg of 4) |
1 |
|
|
002 |
272-8494
|
External retaining ring |
1 |
|
|
003 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
004 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
005 |
272-8495
|
Motor frame weldment (OBSOLETE) |
1 |
|
|
006 |
170-6124
|
Washer flat nylon |
2 |
|
|
007 |
170-3444
|
Shoulder bolt |
2 |
|
|
008 |
272-8496
|
Motor mount |
1 |
|
|
009 |
272-8224
|
Gasket |
1 |
|
|
010 |
272-8225
|
20 inch dust shroud |
1 |
|
|
011 |
999-0016
|
Washer 1/4 flat plain finish |
6 |
|
|
012 |
999-0060
|
Washer 1/4 split lock plain finish |
7 |
|
|
013 |
999-1064
|
Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated |
4 |
|
|
015 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
|
016 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
1 |
|
|
017 |
172-3072
|
20 inch skirt assembly |
1 |
|
|
018 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
019 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
020 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
021 |
999-0432
|
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
|
NOTE |
272-8211
|
20 inch pad driver |
1 |
|
|
