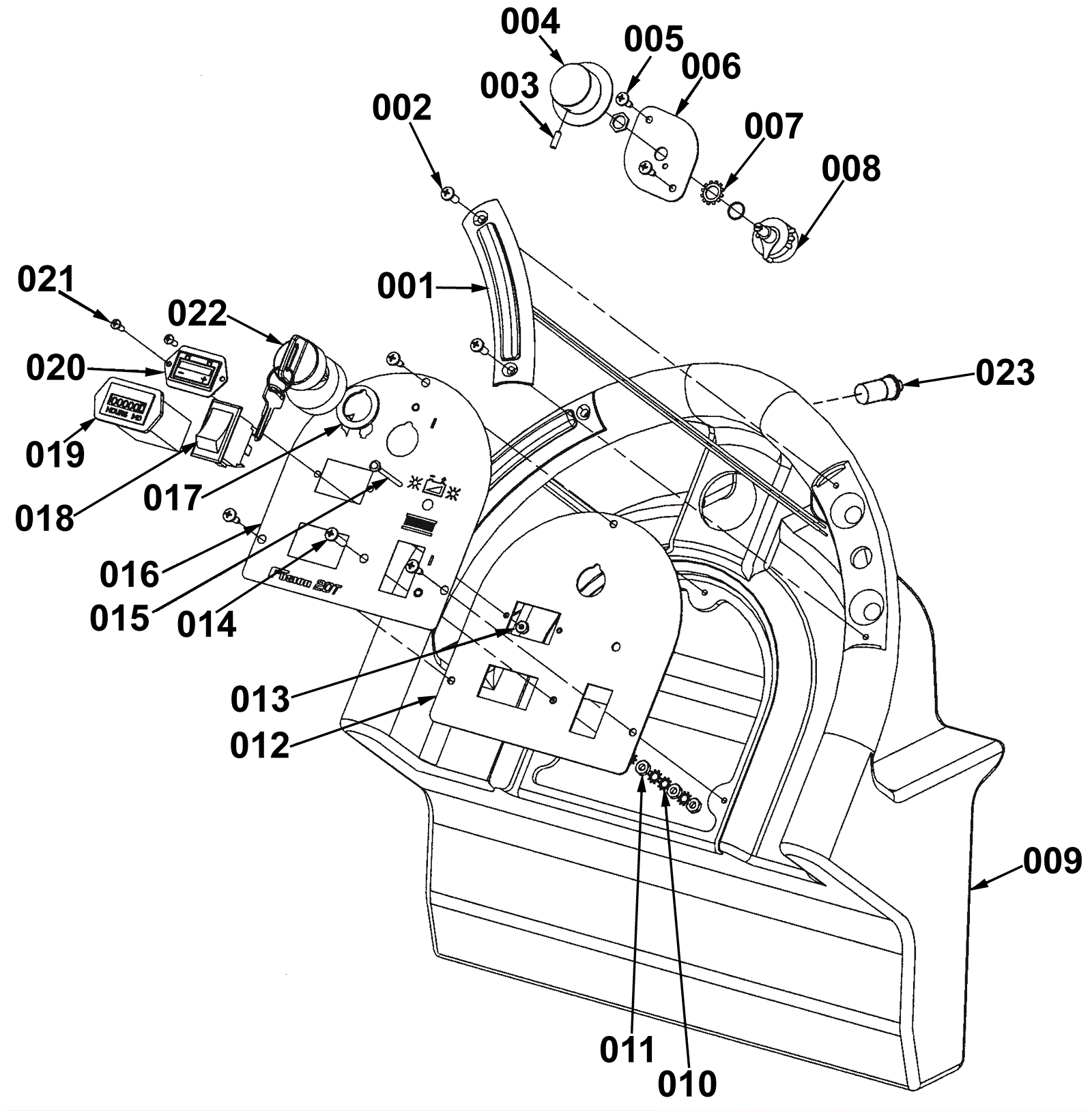

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-1885
|
Switch lever housing |
1 |
|
|
002 |
999-0851
|
Screw 10-32 x 1/2 round head slotted nylon |
4 |
|
|
003 |
999-0431
|
Screw 8-32 x 1/4 set socket cup point alloy plain finish |
1 |
|
|
004 |
170-1876
|
Traverse control knob |
1 |
|
|
005 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
5 |
|
|
006 |
N/A
|
Not available |
1 |
(5K potentiometer) |
|
007 |
999-0201
|
Washer 3/8 internal star lock |
1 |
|
|
008 |
272-3511
|
Potentiometer harness assembly |
1 |
|
|
009 |
270-0634
|
Control handle |
1 |
|
|
010 |
999-0460
|
Nut 10-32 hex |
3 |
|
|
011 |
999-0311
|
Washer #10 external star lock zinc plated |
4 |
|
|
012 |
270-0635
|
Control panel |
1 |
|
|
013 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
|
014 |
999-0414
|
Screw 10-32 x 3/4 pan head slotted zinc plated |
1 |
|
|
015 |
272-2224
|
36V onboard battery charger |
1 |
(LED not available seperately, must purchase on-board charger) |
|
016 |
N/A
|
Not available |
1 |
(Control panel decal) |
|
017 |
272-8524
|
Key switch spacer |
1 |
|
|
018 |
170-0058
|
Rocker switch 2 position 6 prong |
1 |
|
|
019a |
170-0052
|
Hour meter |
1 |
(OEM) |
|
019b |
991-7137
|
Hour meter |
1 |
(NON-OEM) |
|
020 |
270-0637
|
Tru-charge meter |
1 |
|
|
021 |
999-0463
|
Screw 6-32 x 3/8 pan head slotted zinc plated |
3 |
|
|
022a |
170-9026
|
Key switch |
1 |
|
|
022b |
170-8937
|
Key (OBSOLETE) |
1 |
|
|
023 |
170-7409
|
Push button reverse switch |
1 |
|
|
