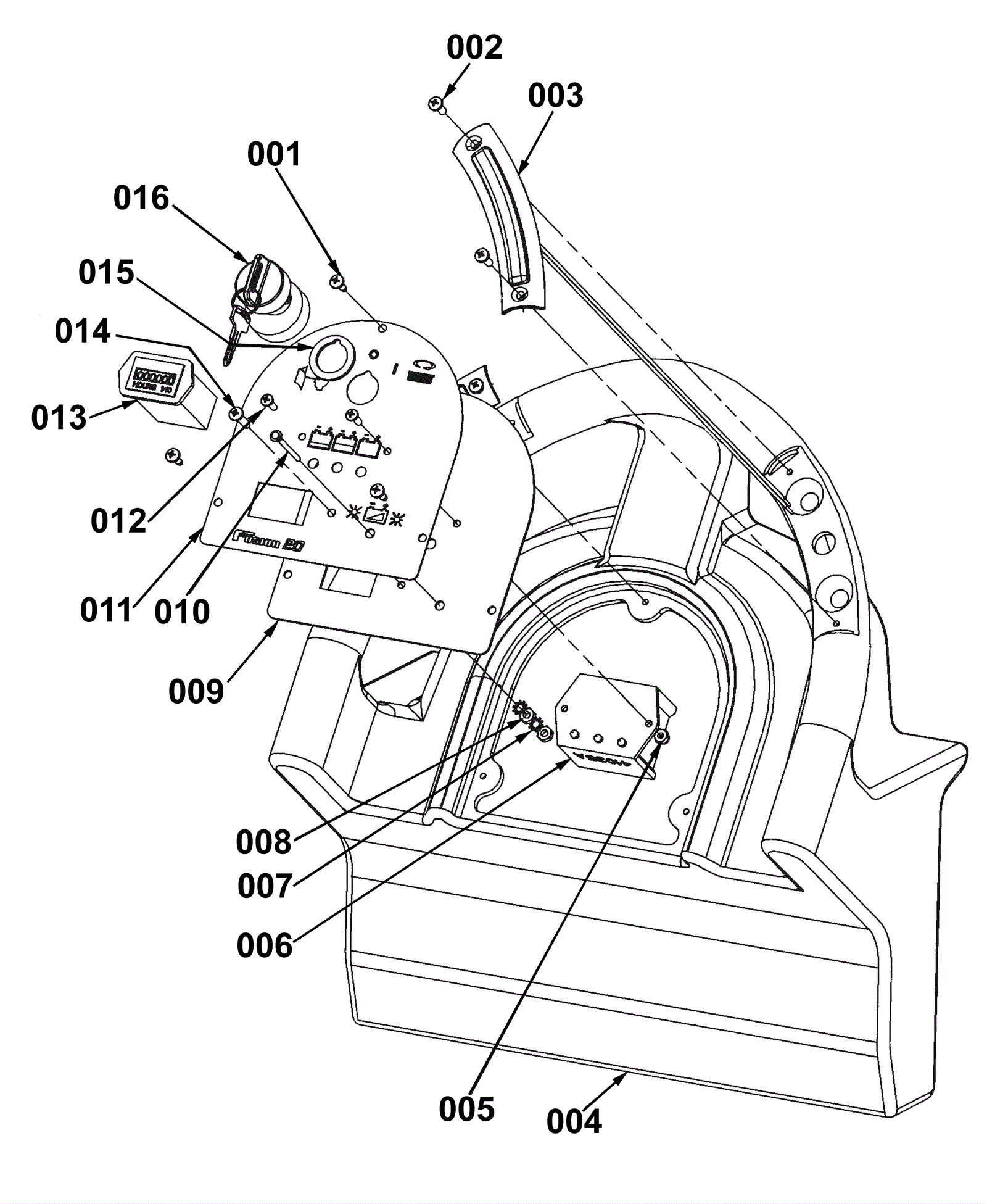

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
$0.99
|
3 |
|
ships same day |
002 |
999-0851
|
Screw 10-32 x 1/2 round head slotted nylon |
$0.99
|
4 |
|
ships same day |
003 |
170-1885
|
Switch lever housing |
$52.69
|
2 |
|
ships same day |
004 |
270-0632
|
Control handle |
$320.64
|
1 |
|
usually ships 1-5 days |
005 |
170-2034
|
Nut 8-32 |
$1.21
|
2 |
|
usually ships 1-5 days |
006 |
272-8476
|
Low voltage battery meter |
$373.33
|
1 |
|
usually ships 16-41 days |
007 |
999-0311
|
Washer #10 external star lock zinc plated |
$0.99
|
2 |
|
ships same day |
008 |
999-0460
|
Nut 10-32 hex |
$0.99
|
2 |
|
ships same day |
009 |
270-0633
|
Control panel |
$17.83
|
1 |
|
usually ships 1-5 days |
010 |
272-2224
|
36V onboard battery charger |
$1,149.42
|
1 |
(LED not available separately, must purchase on-board charger) |
ships same day |
011 |
N/A
|
Not available |
Call for price
|
1 |
(Control panel decal) |
usually ships 3-26 days |
012 |
999-0462
|
Screw 8-32 x 1/2 pan head slotted zinc plated |
$0.99
|
2 |
|
ships same day |
013a |
170-0052
|
Hour meter |
$109.04
|
1 |
(OEM) |
usually ships 16-41 days |
013b |
991-7137
|
Hour meter |
$78.26
|
1 |
(NON-OEM) |
ships same day |
014 |
999-0414
|
Screw 10-32 x 3/4 pan head slotted zinc plated |
$0.99
|
1 |
|
ships same day |
015 |
272-8524
|
Key switch spacer |
$11.99
|
1 |
|
usually ships 1-5 days |
016a |
170-9026
|
Key switch |
$67.20
|
1 |
|
usually ships 16-41 days |
16b |
170-8937
|
Key |
$13.40
|
1 |
|
ships same day |
