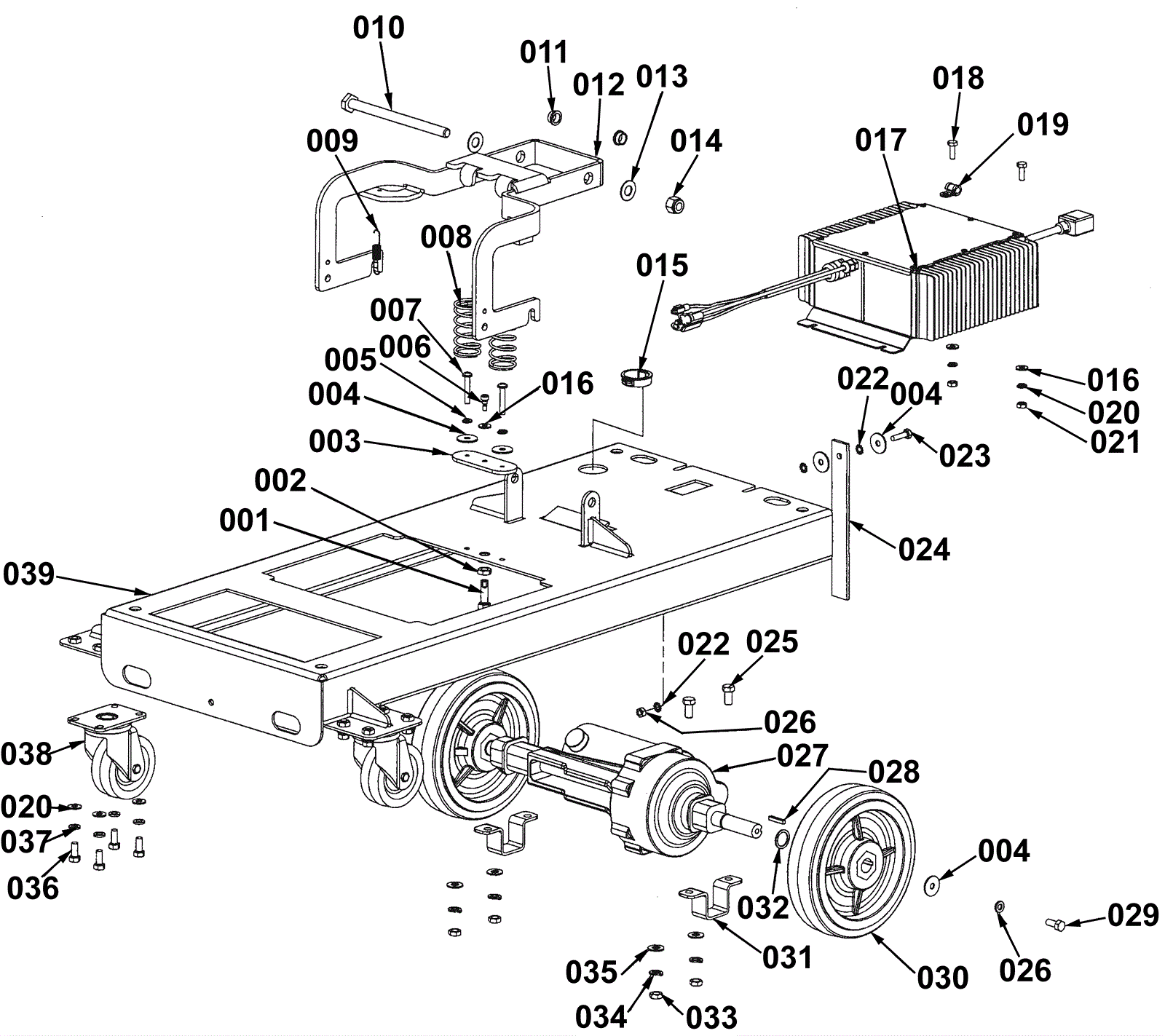

Frame Assembly - Model 01605A

#PartDescription ReqNotesAvailability
001 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 1
002 999-0247 Nut 3/8-16 hex jam plain finish 1
003 172-0816 Spring base plate 1
004 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 6
005 999-0060 Washer 1/4 split lock plain finish 4
006 170-4700 Shoulder bolt 1
007 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated 2
008 272-7423 Compression spring (OBSOLETE) 2
009 272-8467 Extension spring 1
010 999-0351 Bolt 1/2-13 x 7 hex head grade 5 zinc plated 1
011 272-8469 Nominal bushing 2
012 272-8468 Head lifting weldment 1
013 170-5602 Washer 2
014 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
015 272-8466 Insulating bushing 1
016 999-0016 Washer 1/4 flat plain finish 3
017 272-2224 36V onboard battery charger 1
018 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
019 272-8471 P clamp 1
020 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 8
021 999-0190 Nut 1/4-20 hex plain finish 2
022 999-0017 Washer 1/4 external star lock 3
023 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 1
024 170-7146 Static strap 1
025 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4
026 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
027 270-0631 36V transaxle 1
028 170-1679 Square keyway 1
029 999-1186 Screw 5/16-24 x 3/4 hex head 2
030 270-0099 8 inch wheel 2
031 170-1323 Clamp 2
032 170-1754 Washer M1 flat nylon 2
033 999-0170 Nut 3/8-16 hex plain finish 4
034 999-0659 Washer 3/8 medium split lock stainless steel 4
035 999-0032 Washer 3/8 USS flat plain finish 4
036 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 8
037 999-0028 Washer 5/16 split lock plain finish 10
038 272-8474 3 1/2 inch swivel caster 2
039 272-8475 20 inch mainframe (OBSOLETE) 1
N/S 170-7070 Gasket 2
