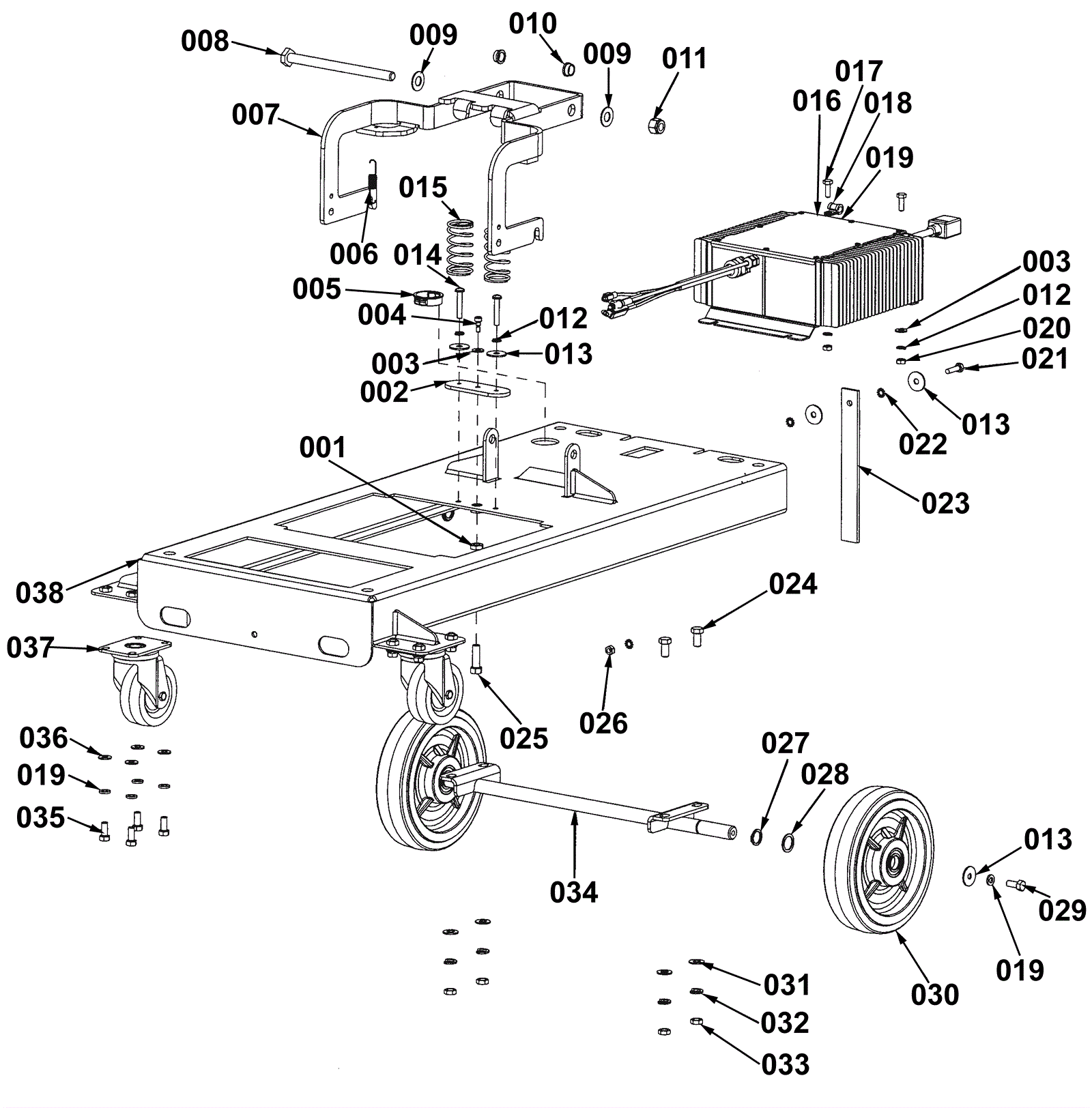

FUSION 20 Frame Assembly - Model 01605A

#PartDescriptionPriceReqNotesAvailability
001 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
002 172-0816 Spring base plate $7.17 1 ships same day
003 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
004 170-4700 Shoulder bolt $10.11 1 usually ships 1-5 days
005 272-8466 Insulating bushing $9.59 1 ships same day
006 272-8467 Extension spring $11.99 1 usually ships 1-5 days
007 272-8468 Head lifting weldment $358.11 1 usually ships 16-41 days
008 999-0351 Bolt 1/2-13 x 7 hex head grade 5 zinc plated $10.54 1 ships same day
009 170-5602 Washer $8.07 2 ships same day
010 272-8469 Nominal bushing $13.40 2 usually ships 16-41 days
011 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
012 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
013 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 6 ships same day
014 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated $0.99 2 ships same day
015 272-7423 Compression spring $15.07 2 usually ships 1-5 days
016 272-2224 36V onboard battery charger $1,149.42 1 ships same day
017 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
018 272-8471 P clamp $11.99 1 usually ships 1-5 days
019 999-0028 Washer 5/16 split lock plain finish $0.99 10 ships same day
020 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
021 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 1 ships same day
022 999-0017 Washer 1/4 external star lock $0.99 3 ships same day
023 170-7146 Static strap $13.40 1 usually ships 16-41 days
024 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
025 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
026 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
027 170-1324 Snap ring $9.58 2 usually ships 4-15 days
028 170-1754 Washer M1 flat nylon $11.99 2 usually ships 16-41 days
029 999-1186 Screw 5/16-24 x 3/4 hex head $11.99 2 ships same day
030 272-8472 8 inch wheel $85.24 2 ships same day
031 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
032 999-0659 Washer 3/8 medium split lock stainless steel $0.39 4 ships same day
033 999-0170 Nut 3/8-16 hex plain finish $0.99 5 ships same day
034 272-8473 Non-traverse axle weldment $192.02 1 usually ships 1-5 days
035 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 8 ships same day
036 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
037 272-8474 3 1/2 inch swivel caster $40.45 2 ships same day
038 272-8475 20 inch mainframe (OBSOLETE) $245.32 1 usually ships 1-5 days
N/S 170-7070 Gasket $11.99 1 usually ships 16-41 days
