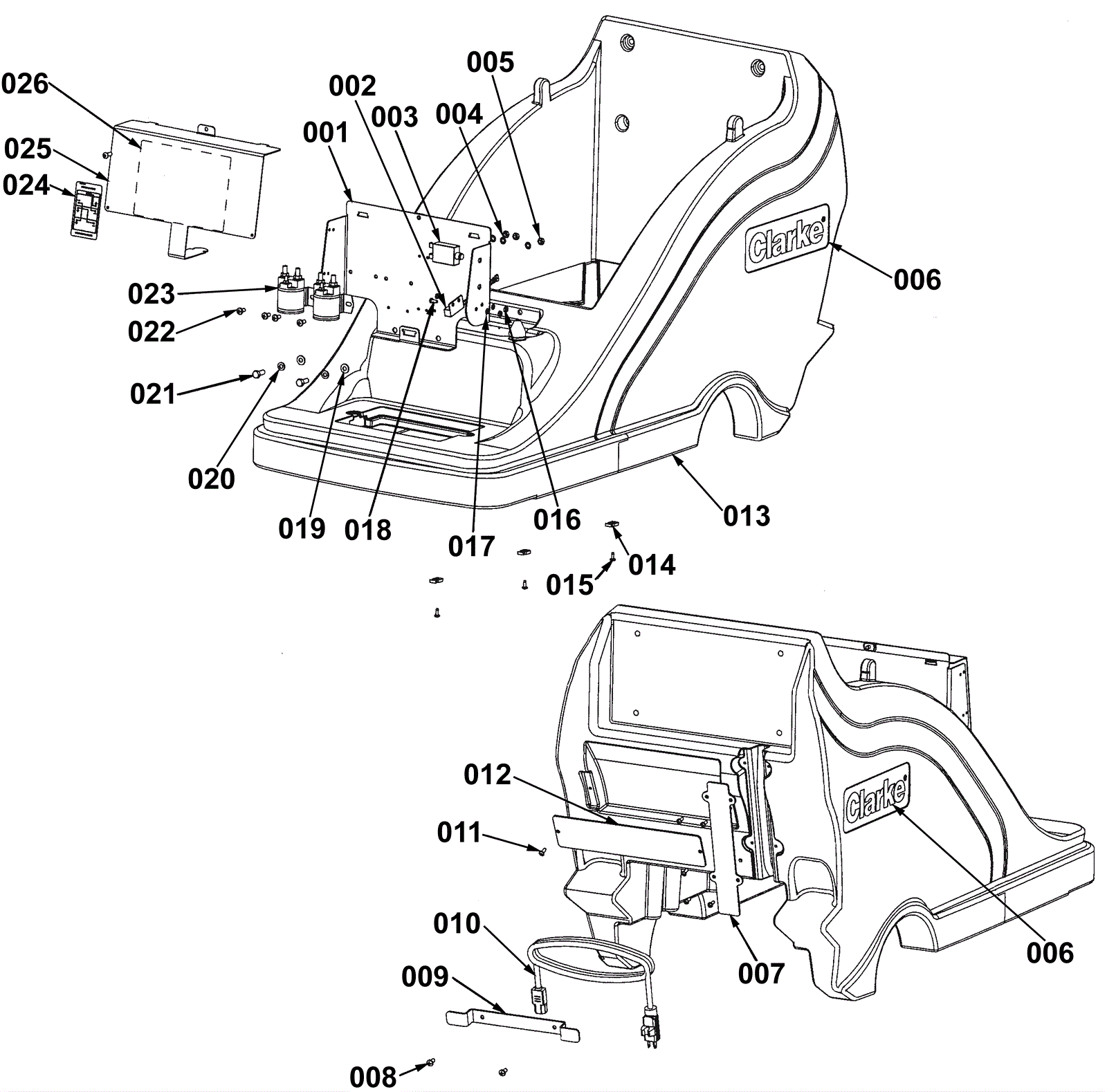

FUSION 20 Body Assembly - Model 01605A

#PartDescriptionPriceReqNotesAvailability
001 272-7425 Electrical plate weldment $68.62 1 usually ships 16-41 days
002 272-7443 Tilt switch $73.68 1 usually ships 16-41 days
003a 170-3929 70amp circuit breaker (OBSOLETE) $113.41 1 (OEM) usually ships 1-5 days
003b 991-5156 70amp circuit breaker (OBSOLETE) $33.60 1 (NON-OEM) usually ships 3-19 days
004 999-0017 Washer 1/4 external star lock $0.99 4 ships same day
005 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
006 270-0196 Clarke decal $28.46 2 usually ships 1-5 days
007 272-8491 Harness cover $36.07 1 usually ships 16-41 days
008 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
009 170-7386 Cord wrapping bracket $12.83 1 usually ships 1-5 days
010 170-7385 Onboard charger cord $28.74 1 usually ships 16-41 days
011 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 6 ships same day
012 272-8490 Retention strap (for dust bags) $21.00 1 usually ships 1-5 days
013 270-0620 Body assembly $1,163.09 1 usually ships 1-5 days
014 170-7388 1/4 tab $11.99 3 usually ships 1-5 days
015 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 3 ships same day
016 999-0460 Nut 10-32 hex $0.99 2 ships same day
017 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
018 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 2 ships same day
019 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
020 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
021 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
022 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated $0.99 4 ships same day
023 172-2805 36V contactor $97.47 2 ships same day
024 272-8484 Battery connection decal $16.50 1 usually ships 1-5 days
025 272-8482 Front electric plate cover $44.79 1 usually ships 16-41 days
026 272-8483 Connection diagram decal $11.99 1 usually ships 1-5 days
N/S 170-7070 Gasket $11.99 1 usually ships 16-41 days
N/S 272-8481 Screw 1/4-20 x 5/8 socket $8.07 1 usually ships 1-5 days
N/S 272-8492 20 inch power harness $156.64 1 usually ships 1-5 days
