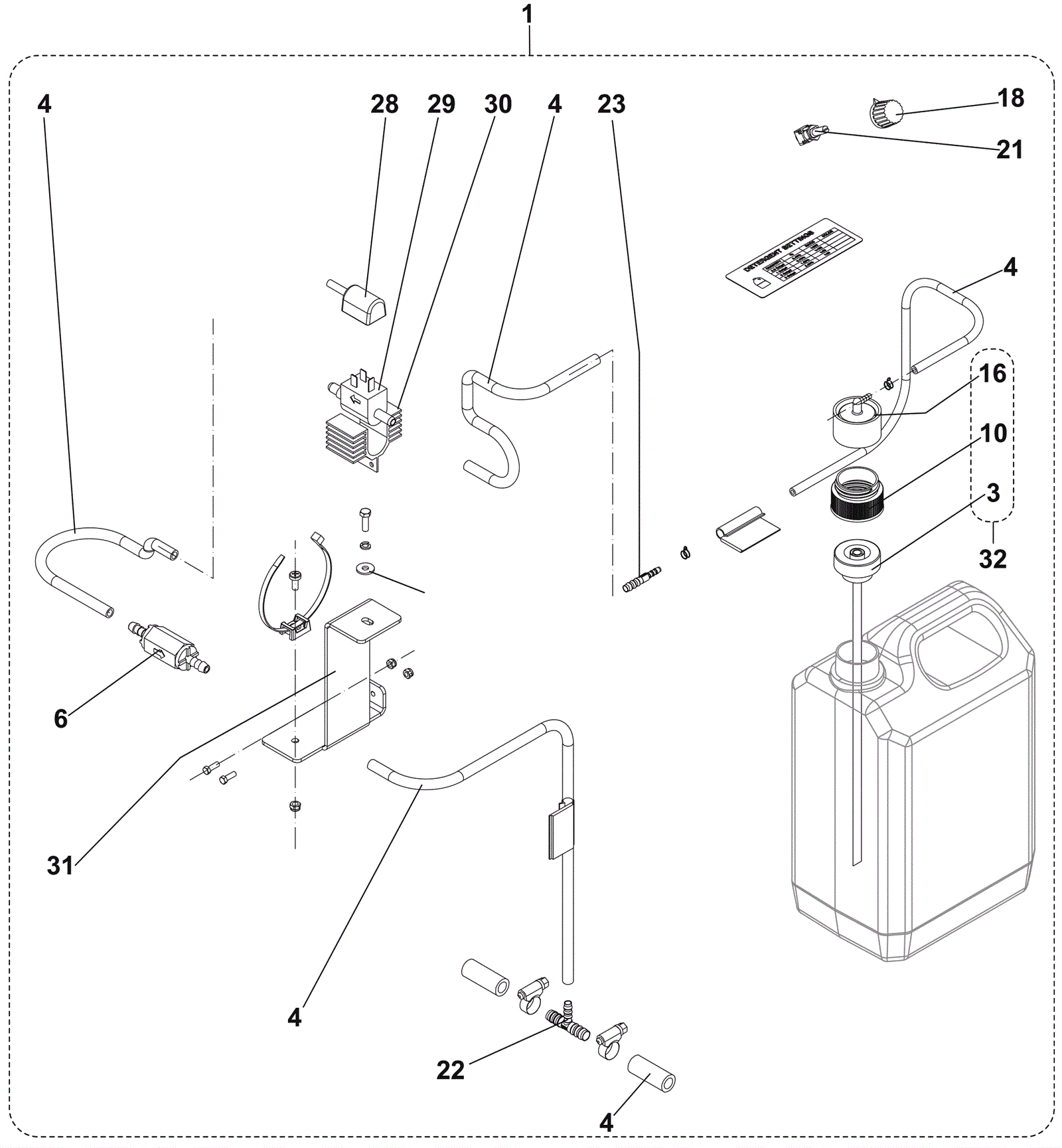

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
270-0608
|
Chemical mixing system kit |
1 |
(includes 3-32) |
|
3 |
272-3756
|
Chemical mix level sensor |
1 |
|
|
4 |
270-0617
|
Chemical mixing system hose kit |
1 |
|
|
6 |
270-0610
|
1/4 inch one-way valve |
1 |
|
|
10 |
272-3755
|
Chemical tank adapter |
1 |
|
|
16 |
272-2182
|
Dry break cap |
1 |
|
|
18 |
272-0679
|
Knob (for potentiometer) |
1 |
|
|
21 |
270-0612
|
50k potentiometer |
1 |
|
|
22 |
270-0613
|
Barbed tee |
1 |
|
|
23 |
270-0614
|
Pipe holder |
1 |
|
|
28 |
270-0615
|
Chemical pump cord |
1 |
|
|
29 |
270-0348
|
Chemical pump |
1 |
|
|
30 |
270-0350
|
Pump bracket |
1 |
|
|
31 |
270-0616
|
Pump bracket |
1 |
|
|
32 |
270-0349
|
Adapter cap |
1 |
(includes 3, 10, 16) |
|
