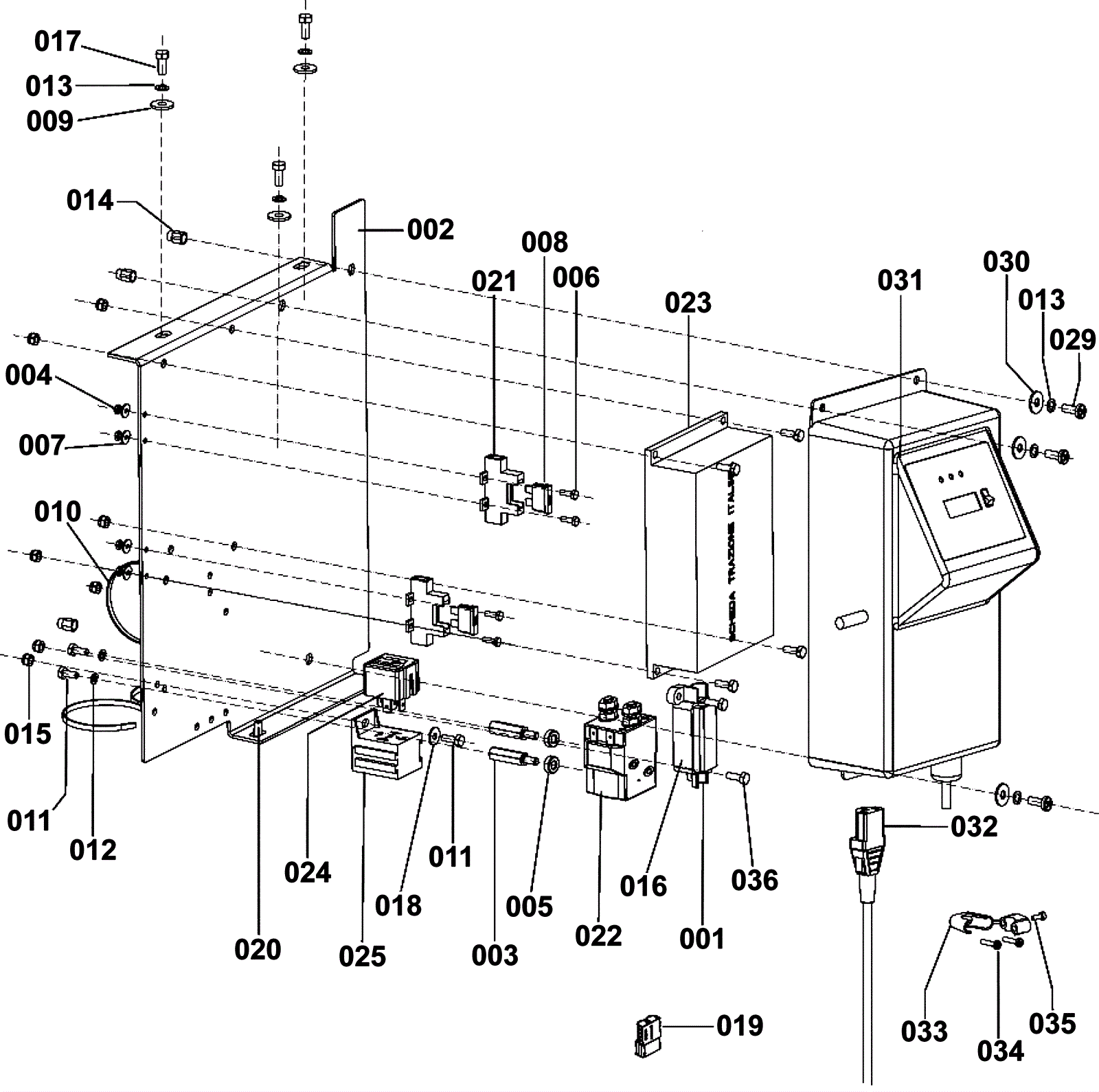

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
181-0966
|
Fuse holder |
1 |
|
|
002 |
272-3770
|
Support |
1 |
|
|
003 |
272-9277
|
Spacer |
2 |
|
|
004 |
999-0768
|
Nut M3-.5 hex coarse thread plain finish |
4 |
|
|
005 |
172-2430
|
Spacer (OBSOLETE) |
2 |
|
|
006 |
999-9103
|
Screw M3-.5 x 10mm hex head stainless steel |
4 |
|
|
007 |
999-1305
|
Washer M3 split lock stainless steel |
4 |
|
|
008 |
272-7144
|
30amp fuse |
2 |
|
|
009 |
999-9100
|
Washer M5 flat stainless steel |
6 |
|
|
010 |
272-8376
|
Wire tie |
3 |
|
|
011 |
999-0777
|
Screw M4-.7 x 10mm hex head plain finish |
3 |
|
|
012 |
999-1115
|
Washer M4 flat zinc plated |
2 |
|
|
013 |
999-9132
|
Washer M5 split lock stainless steel |
5 |
|
|
014 |
272-9283
|
Insert M5 |
3 |
|
|
015 |
999-0955
|
Nut M4-.7 hex nylon lock |
7 |
|
|
016 |
272-6292
|
40amp brush fuse strip |
1 |
|
|
017 |
999-1220
|
Screw M5-.8 x 12mm hex head stainless steel |
2 |
|
|
018 |
272-9285
|
Washer M4 flat |
1 |
|
|
019 |
272-8374
|
120amp connector (red) |
1 |
|
|
020 |
272-9286
|
Dowel (OBSOLETE) |
1 |
|
|
021 |
472-1367
|
HOLDER FUSE THERMOPL. UL 94-V0 |
2 |
|
|
022 |
272-7142
|
Electromagnetic switch |
1 |
|
|
023 |
272-7389
|
Electronic card traction kit |
1 |
|
|
024 |
272-9288
|
24V relay |
1 |
|
|
025 |
272-9289
|
Electrical box harness |
1 |
|
|
029 |
272-9291
|
Screw M5 X 20 |
3 |
|
|
030 |
999-9100
|
Washer M5 flat stainless steel |
3 |
|
|
031 |
270-0094
|
24V onboard battery charger |
1 |
|
|
032 |
272-9290
|
Onboard charger cord |
1 |
|
|
033 |
272-9292
|
Cord holder |
1 |
|
|
034 |
999-9095
|
Screw M4-.7 x 14mm socket head stainless steel |
2 |
|
|
035 |
272-9293
|
Screw M4 x 12mm |
1 |
|
|
036 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
2 |
|
|
N/S |
270-0606
|
Battery harness |
1 |
|
|
N/S |
272-9295
|
Vacuum motor harness |
1 |
|
|
N/S |
272-9294
|
Machine harness |
1 |
|
|
