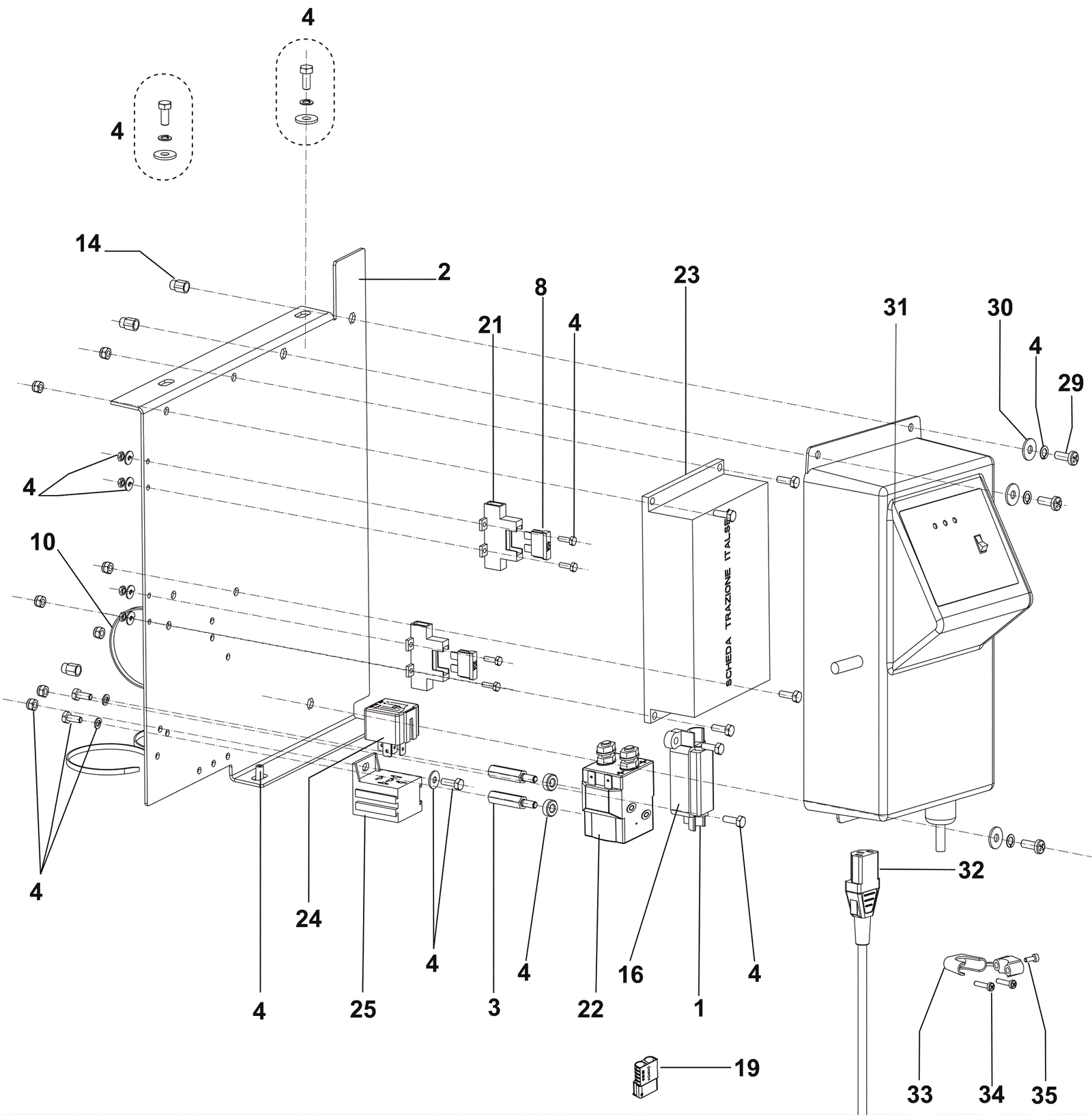

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
181-0966
|
Fuse holder |
1 |
|
|
2 |
272-3770
|
Support |
1 |
|
|
3 |
272-9277
|
Spacer |
2 |
|
|
4 |
272-6326
|
Electrical hardware kit |
2 |
|
|
8 |
272-7144
|
30amp fuse |
2 |
|
|
10 |
272-8376
|
Wire tie |
3 |
|
|
14 |
272-9283
|
Insert M5 |
3 |
|
|
16 |
272-6292
|
40amp brush fuse strip |
1 |
|
|
19 |
272-8374
|
120amp connector (red) |
1 |
|
|
21 |
472-1367
|
HOLDER FUSE THERMOPL. UL 94-V0 |
2 |
|
|
22 |
272-7142
|
Electromagnetic switch |
1 |
|
|
23 |
272-7389
|
Electronic card traction kit |
1 |
(drive models) |
|
24 |
272-9288
|
24V relay |
1 |
|
|
25a |
272-9289
|
Electrical box harness |
1 |
(drive models) |
|
25b |
270-0604
|
Harness electric box |
1 |
(no drive models) |
|
26a |
272-9294
|
Machine harness |
1 |
(drive models) |
|
26b |
270-0605
|
Machine harness |
1 |
(no drive models) |
|
27 |
272-9295
|
Vacuum motor harness |
1 |
|
|
28 |
270-0606
|
Battery harness |
1 |
|
|
29 |
272-9291
|
Screw M5 X 20 |
3 |
|
|
30 |
272-3771
|
Washer |
3 |
|
|
31 |
270-0094
|
24V onboard battery charger |
1 |
|
|
32 |
272-9290
|
Onboard charger cord |
1 |
|
|
33 |
272-9292
|
Cord holder |
1 |
|
|
34 |
272-1957
|
Screw M4-.7 x 14mm |
2 |
|
|
35 |
272-9293
|
Screw M4 x 12mm |
1 |
|
|
