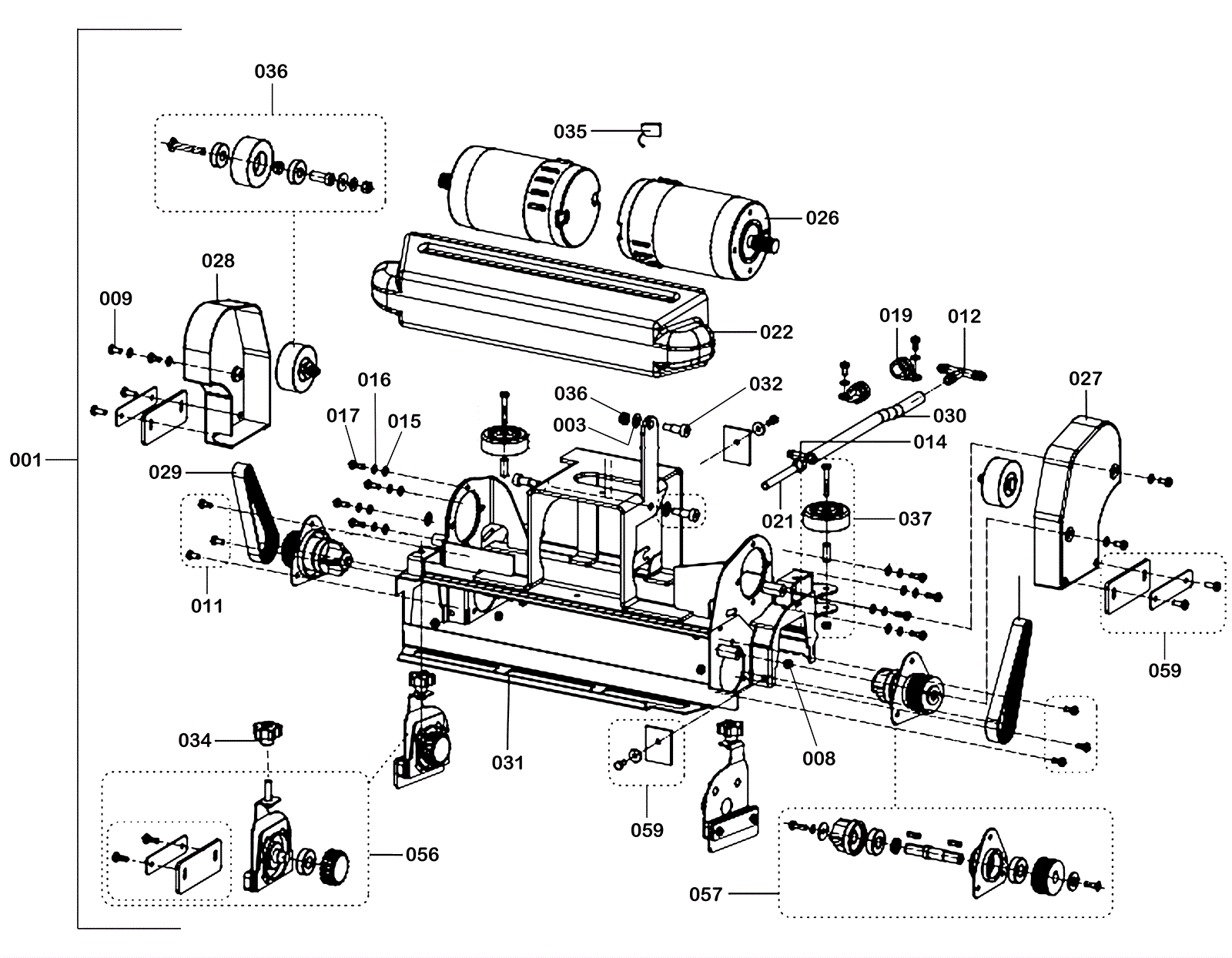

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-4819
|
Brush deck kit |
1 |
(includes 003- 059 and brush deck harness) |
|
003 |
999-1262
|
Washer M10 flat |
3 |
|
|
008 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
009 |
172-3722
|
Screw M6x12 |
6 |
|
|
011 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
6 |
|
|
012 |
272-0787
|
Pipe holder |
1 |
|
|
014 |
272-2669
|
Hose clamp (OBSOLETE) |
1 |
|
|
015 |
172-4821
|
Washer M6 flat |
14 |
|
|
016 |
172-4822
|
Washer M6 split |
8 |
|
|
017 |
172-4823
|
Screw M6 x 16mm hex head |
8 |
|
|
019 |
272-0763
|
Clamp |
2 |
|
|
021 |
N/A
|
Not available |
1 |
(Metal coupling) |
|
022 |
172-4824
|
Dirt container |
1 |
|
|
026 |
172-4825
|
24V electric motor |
2 |
|
|
027 |
172-4826
|
Right belt protection crankcase |
1 |
|
|
028 |
172-4827
|
Left belt protection crankcase |
1 |
|
|
029 |
172-4828
|
Belt |
2 |
|
|
030 |
172-4829
|
Hose |
1 |
|
|
031 |
172-4830
|
Cylindrical brush deck frame |
1 |
|
|
032 |
172-4807
|
Bolt M10 x 16mm shoulder |
3 |
|
|
034 |
572-3784
|
KNOB M8 PKD |
2 |
|
|
035 |
272-8286
|
Carbon brush kit (pkg of 4) |
8 |
|
|
036 |
172-4831
|
Tensioner kit |
1 |
|
|
037 |
172-4803
|
Hardware kit |
1 |
|
|
056 |
172-4836
|
Cylindrical brush support kit |
1 |
|
|
057 |
172-4837
|
Pulley support kit |
1 |
|
|
059 |
172-4839
|
Splash guard kit |
1 |
|
|
N/S |
170-7870
|
7 stroke actuator |
1 |
|
|
N/S |
172-4838
|
Cylindrical brush deck harness |
1 |
|
|
