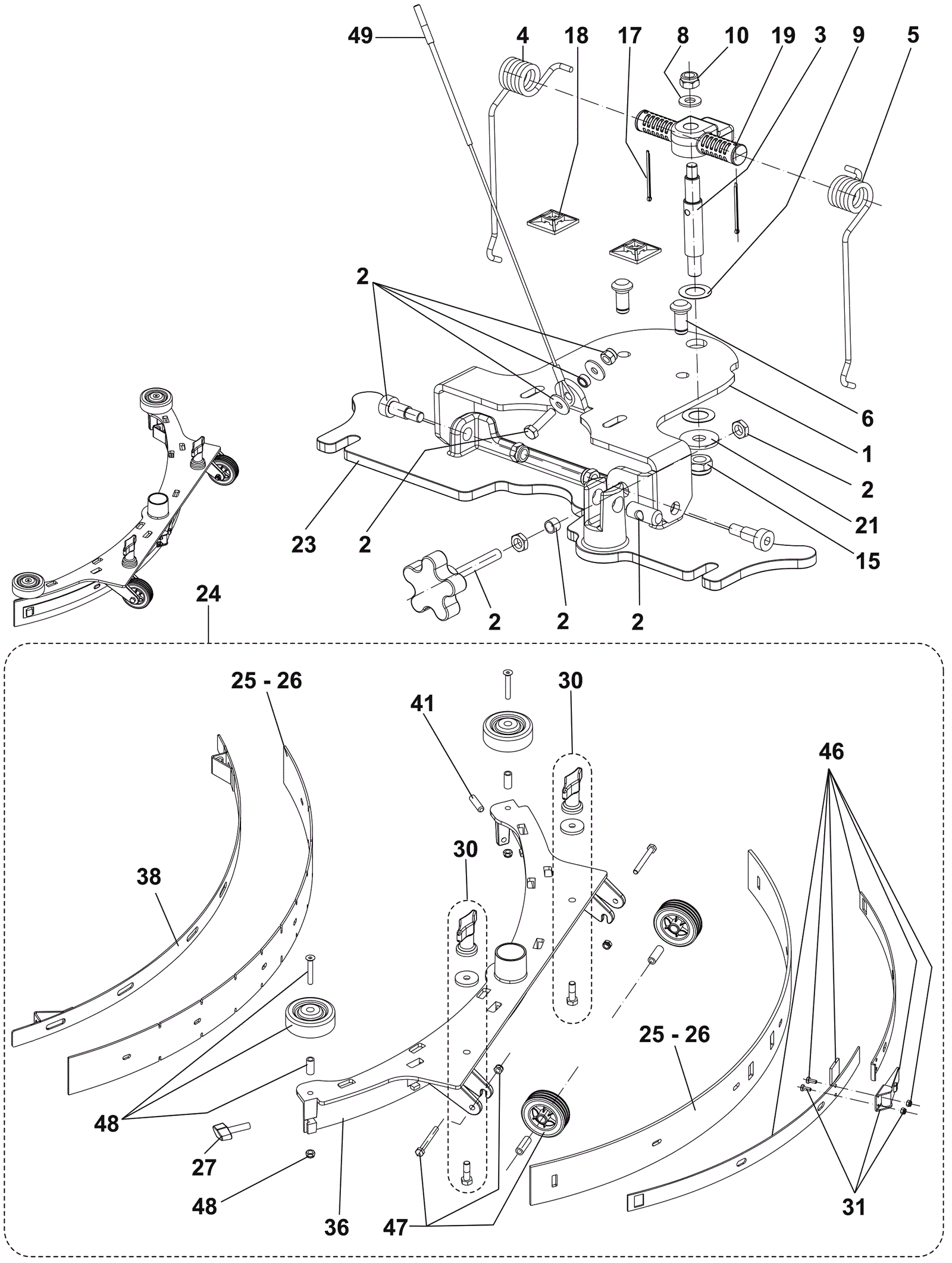

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
172-4774
|
Squeegee support bracket |
1 |
|
|
2 |
172-4796
|
Hardware fixing kit |
1 |
|
|
3 |
270-0395
|
Squeegee pin |
1 |
|
|
4 |
172-4776
|
Right hand squeegee torsion spring |
1 |
|
|
5 |
172-4777
|
Spring |
1 |
|
|
6 |
270-0398
|
Squeegee fixing pin |
2 |
|
|
8 |
999-1267
|
Washer M8 flat zinc |
1 |
|
|
9 |
272-2000
|
Washer M15 x 25mm plain nylon |
2 |
|
|
10 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
|
15 |
172-4782
|
Nut M10 self locking |
1 |
|
|
17 |
270-0399
|
Split pin |
2 |
|
|
18 |
172-4784
|
Wire tie holder |
2 |
|
|
19 |
270-0114
|
Spring support |
1 |
|
|
21 |
999-9099
|
Washer M10 flat stainless steel |
1 |
|
|
23 |
272-7000
|
Squeegee mounting bracket kit |
1 |
|
|
24 |
270-8645
|
Squeegee assembly with polyurethane blades |
1 |
(includes 25-48) |
|
25 |
270-0403
|
Squeegee blade kit PRIMOthane (incs front and rear blade) |
1 |
|
|
26 |
372-1312
|
Squeegee blade kit linatex |
1 |
|
|
27 |
272-8529
|
Knob M8 x 30mm stainless steel |
1 |
|
|
30 |
272-6579
|
Squeegee fixing kit |
1 |
|
|
31 |
172-4795
|
Squeegee latch kit |
1 |
|
|
36 |
172-4788
|
Squeegee weldment |
1 |
|
|
38 |
172-4789
|
Front squeegee strap (OBSOLETE) |
1 |
|
|
41 |
172-4790
|
Dowel M8 x 30mm |
1 |
|
|
46 |
172-4792
|
Rear squeegee strap and hardware kit |
1 |
|
|
47 |
172-4793
|
Squeegee wheel kit |
1 |
|
|
48 |
172-4794
|
Squeegee bumper wheel kit |
1 |
|
|
49 |
272-8150
|
Squeegee lifting cable |
1 |
|
|
