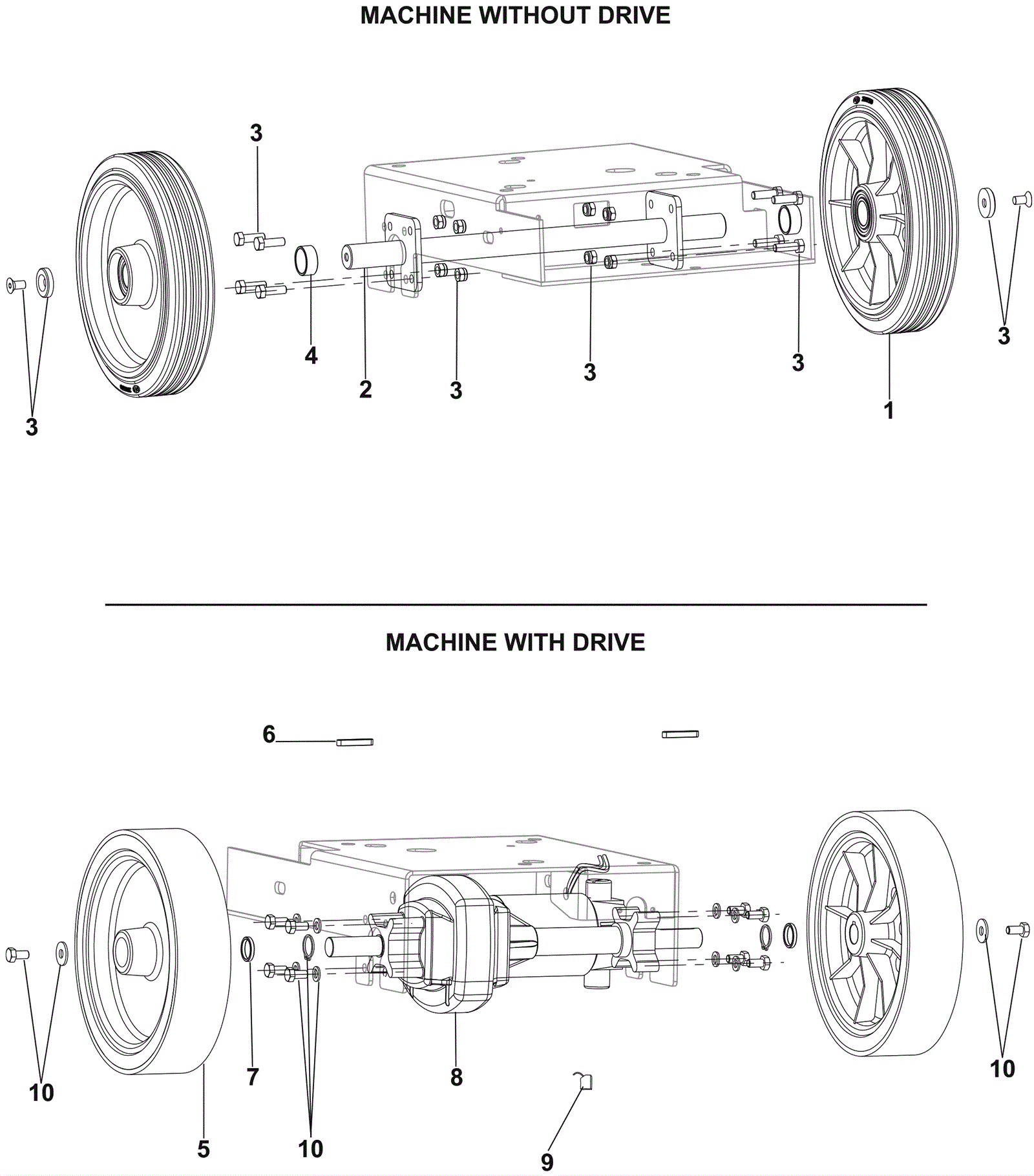

Wheel Assemblies

#PartDescription ReqNotesAvailability
1 270-0366 Front wheel (blue) 2 (without drive)
2 270-0367 Wheel shaft 1 (without drive)
3 272-6316 Wheel hardware kit 1 (without drive)
4 270-0369 Wheel hardware 2 (without drive)
5 270-0370 Wheel kit (pkg of 2) smooth 2 (with drive)
6 172-4750 Square keyway 2 (with drive)
7 572-3617 SPACER 20.5X25X4 10 PCS SET 2 (with drive)
8 172-4753 24V transaxle 1 (with drive)
9 272-0760 Carbon brush 2 (with drive)
10 272-6312 Drive wheel hardware kit 1 (with drive)
