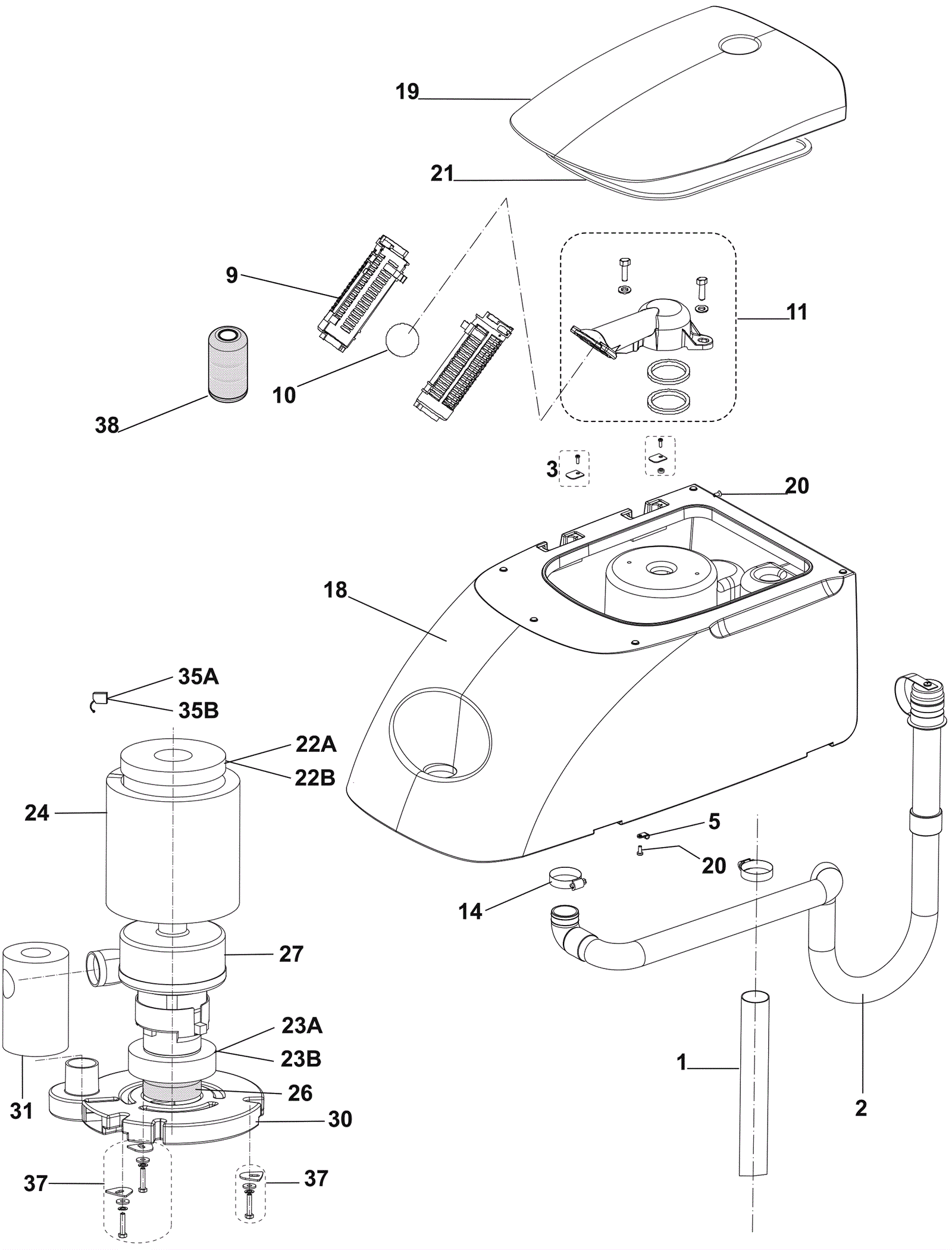

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 272-0618 Squeegee vacuum hose kit 1
2 272-8549 Drain hose assembly with plug 1
3 272-6307 Tank fixing kit 1
5 172-4759 Clamp 1
9 172-0517 Float cage half (2 required for full float cage) 2
10 172-0192 Float ball 1
11 270-8255 Float holder cage kit 1
14 997-2000 Hose clamp 2
18 270-0362 Recovery tank (OBSOLETE) 1
19 270-0097 Recovery tank lid (OBSOLETE) 1
20 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
21 272-8548 Recovery tank lid gasket 1
22a 270-0364 Vacuum motor gasket 1 (old style)
22b 572-3208 GASKET VACUUM MOTOR 1 (new style)
23a 172-4730 Vacuum motor gasket 1 (old style)
23b 272-9865 Vacuum motor gasket 1 (new style)
24 172-4731 Acoustic insulation panel 1
26 172-4732 Filter 1
27 272-6578 24V 2 stage vacuum motor 1
30 172-4733 Vacuum motor cover 1
31 172-4734 Acoustic insulation pipe 1
35a 272-0627 Carbon brush 1 (old style)
35b 240-6536 CARBON BRUSH SET -3 STAGE VAC 1 (new style)
37 172-4736 Vacuum motor hardware kit 1
38 272-7206 Antifoaming filter 1
N/S 172-4735 Recovery tank hardware kit 1
