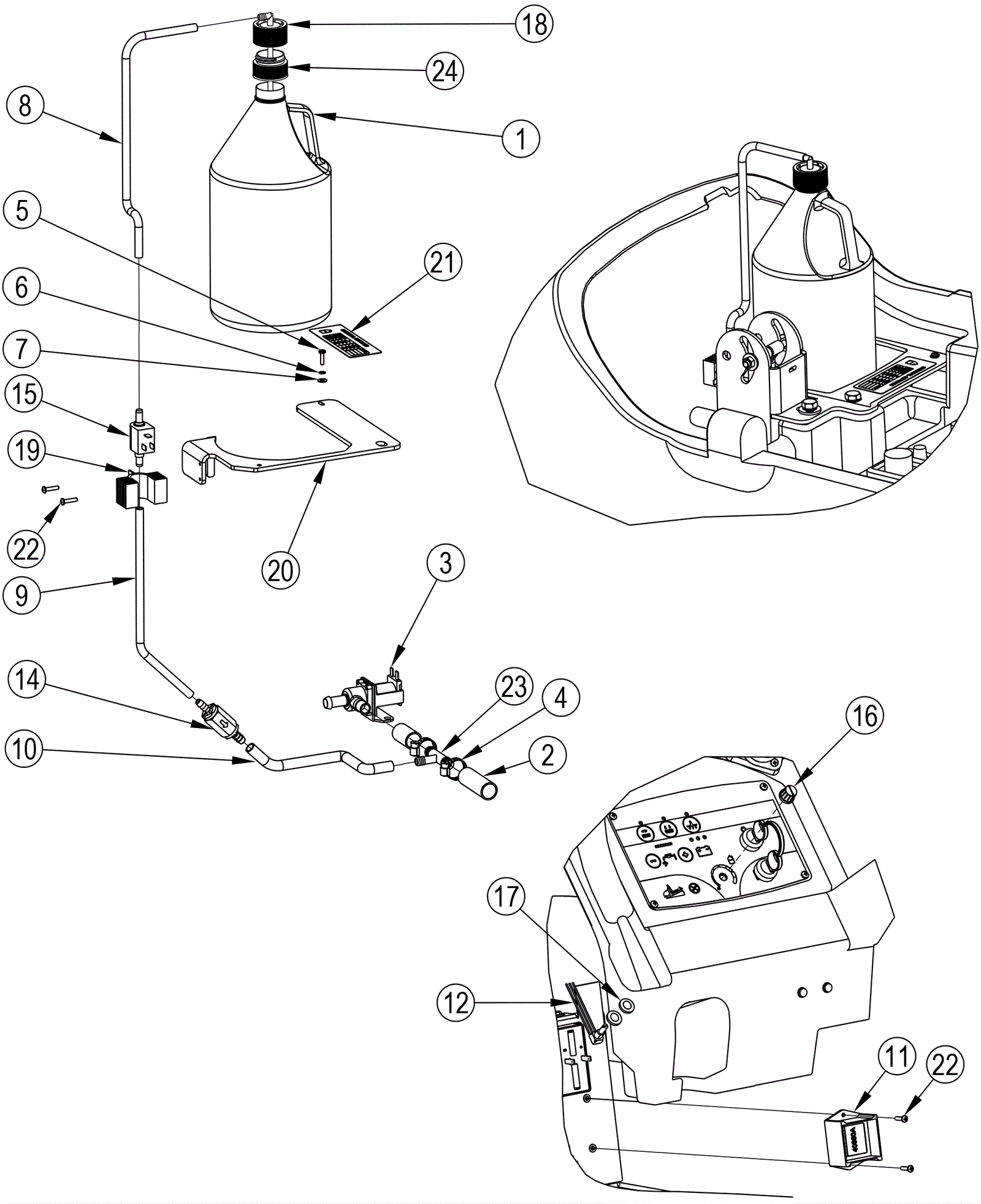

FOCUS II 28 DISC Chemical Mixing Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (cleaning solution bottle) usually ships 3-26 days
2 270-0263 25 inch hose (clear) $12.31 1 usually ships 16-41 days
3 170-1920 Solenoid valve $195.84 1 ships same day
4 172-8494 #6 hose clamp SAE $10.85 2 usually ships 1-5 days
6 372-1795 Washer $10.85 1 usually ships 16-41 days
7 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
8 270-0344 Hose 1/4 x 15 1/4 inch (clear) $10.85 1 usually ships 16-41 days
9 270-0342 Hose 1/4 x 11 1/2 inch (clear) $12.31 1 usually ships 16-41 days
10 270-0343 Hose 3/8 x 11 1/2 inch (clear) $12.31 1 usually ships 1-5 days
11 270-0345 Chemical module $390.80 1 usually ships 1-5 days
12 270-0346 Chemical harness $160.86 1 usually ships 1-5 days
14 270-0347 Check valve $98.68 1 usually ships 16-41 days
15 270-0348 Chemical pump $651.08 1 usually ships 16-41 days
16 270-0354 Adjustment knob $19.98 1 usually ships 1-5 days
17 375-7517 Flat washer $12.31 2 usually ships 16-41 days
18 270-0349 Adapter cap $52.67 1 usually ships 16-41 days
19 270-0350 Pump bracket $252.90 1 usually ships 16-41 days
20 270-0351 Solution bottle bracket $37.05 1 usually ships 1-5 days
21 572-3956 Chemical settings label $12.31 1 usually ships 16-41 days
22 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 4 ships same day
23 270-0353 Reducing tee $12.31 1 usually ships 16-41 days
24 272-3755 Chemical tank adapter $12.31 1 usually ships 16-41 days
N/S 170-1984 Wire tie $12.31 10 usually ships 16-41 days
