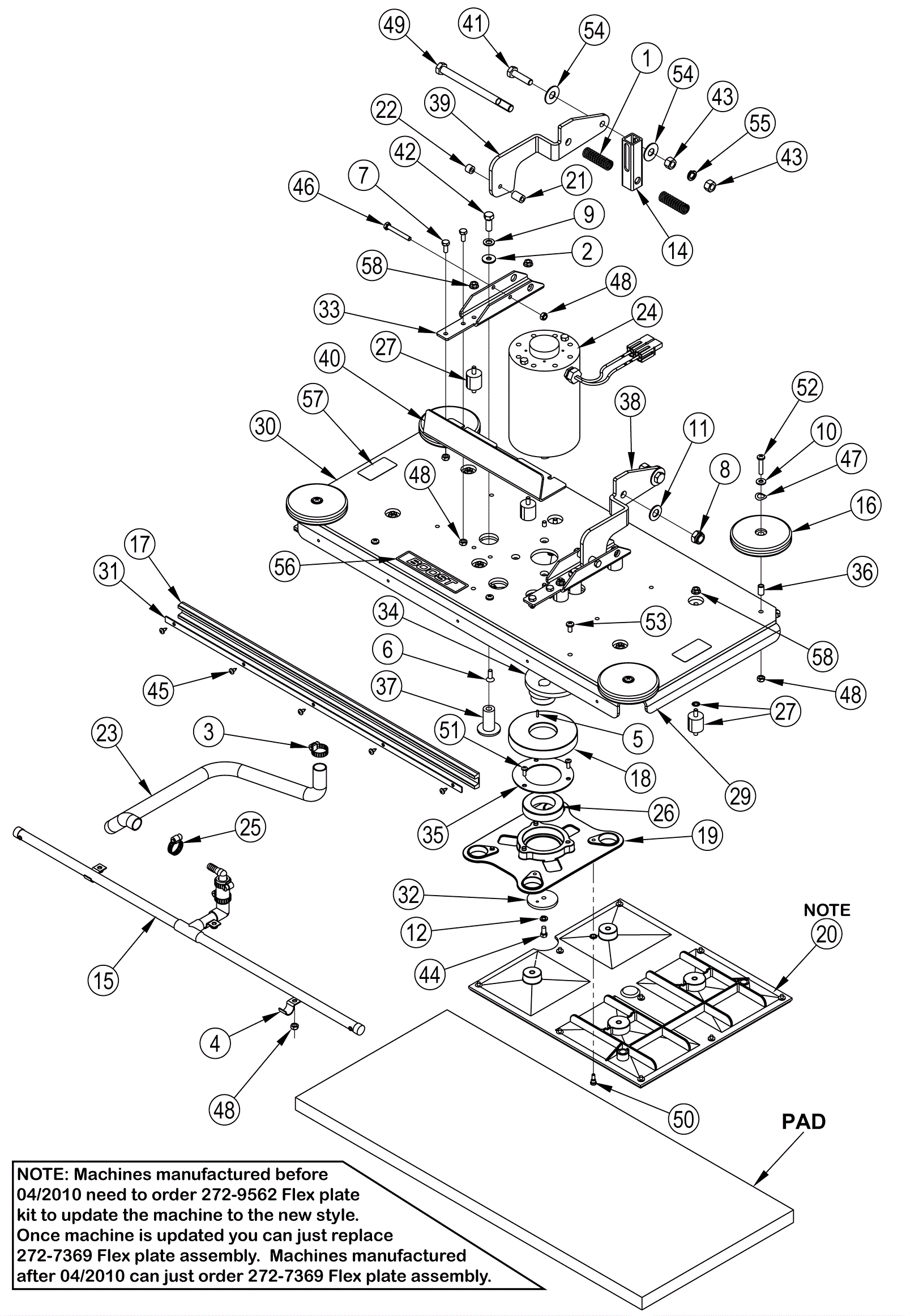

BOOST Deck Assembly 32 inch

#PartDescription ReqNotesAvailability
1 270-0287 Spring 2
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
3 997-2002 Hose clamp #6 1
4 170-0198 Hose clamp 3
5 373-3020 Pin roll 1
6 172-4274 Screw 1/4-20 x 3/4 flat socket head 4
7 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
8 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
9 999-0659 Washer 3/8 medium split lock stainless steel 2
10 999-0016 Washer 1/4 flat plain finish 4
11 170-5602 Washer 1
12 999-0060 Washer 1/4 split lock plain finish 1
14 272-9812 Tube 1
15 270-0323 32 inch drip tube 1
16 170-7172 4 inch guide wheel 4
17 270-0327 Front bumper 1
18 270-0763 Eccentric and shield kit 1 (shield boost bearing) (includes 18 and 34)
19 272-7249 Driver plate 1
20a 272-7369 32 inch flex plate assembly 2 (after 04.2010)
20b 272-9562 32 inch flex plate kit 1 (before 04.2010)
21 270-0304 Nylon spacer 2
22 270-0303 Nylon spacer 2
23 215-9029 Solution hose 1
24a 272-9948 24V brush motor 1 (before 02.2012)
24b 272-9948 24V brush motor 1 (after 02.2012)
24c 172-8951 Carbon brush and spring kit 1
25 997-2001 Hose clamp 1
26 270-0065 Bearing 1
27a 170-9016 Rubber mounting isolator kit 1
27b 991-7152 Isolator kit (pkg of 8) 1 (NON-EOM)
29 270-0320 Upper main plate 1
30 270-0319 Upper deck weight 1
31 270-0325 Bumper retainer 1
32 270-0322 Eccentric retainer 1
33 270-0316 Lifting bracket 2
34 270-0763 Eccentric and shield kit 1 (eccentric)
35 270-0126 Bearing retainer 1
36 270-0129 Guide wheel sleeve 4
37 272-6780 Stud stabilizer 2
38 270-0307 Right lifting arm 1
39 270-0305 Left lifing arm 1
40 270-0328 Front guard 1
41 272-1624 Bolt M10-1.5 x 40mm hex 2
42 999-0850 Bolt 3/8-24 x 1 hex head grade 5 plain finish 2
43 999-0767 Nut M10-1.5 hex coarse thread 4
44 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
45 999-1212 Screw 10-32 x 1/2 hex head stainless steel 5
46 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated 2
47 270-0174 Washer 29/64 x 47/64 bowed 4
48 999-0609 Nut 1/4-20 hex stainless steel 13
49 270-0297 Screw M12-1.75 x 160mm hex head 1
50 270-0844 Shoulder bolt 4
51 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel 3
52 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 4
53 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 3
54 170-6124 Washer flat nylon 4
55 999-0671 Washer M10 split lock plain finish 2
56 170-9202 BOOST decal 1
57 170-0226 Moving warning decal 2
58 999-0152 Nut 1/4-20 nylon insert lock zinc plated 12
