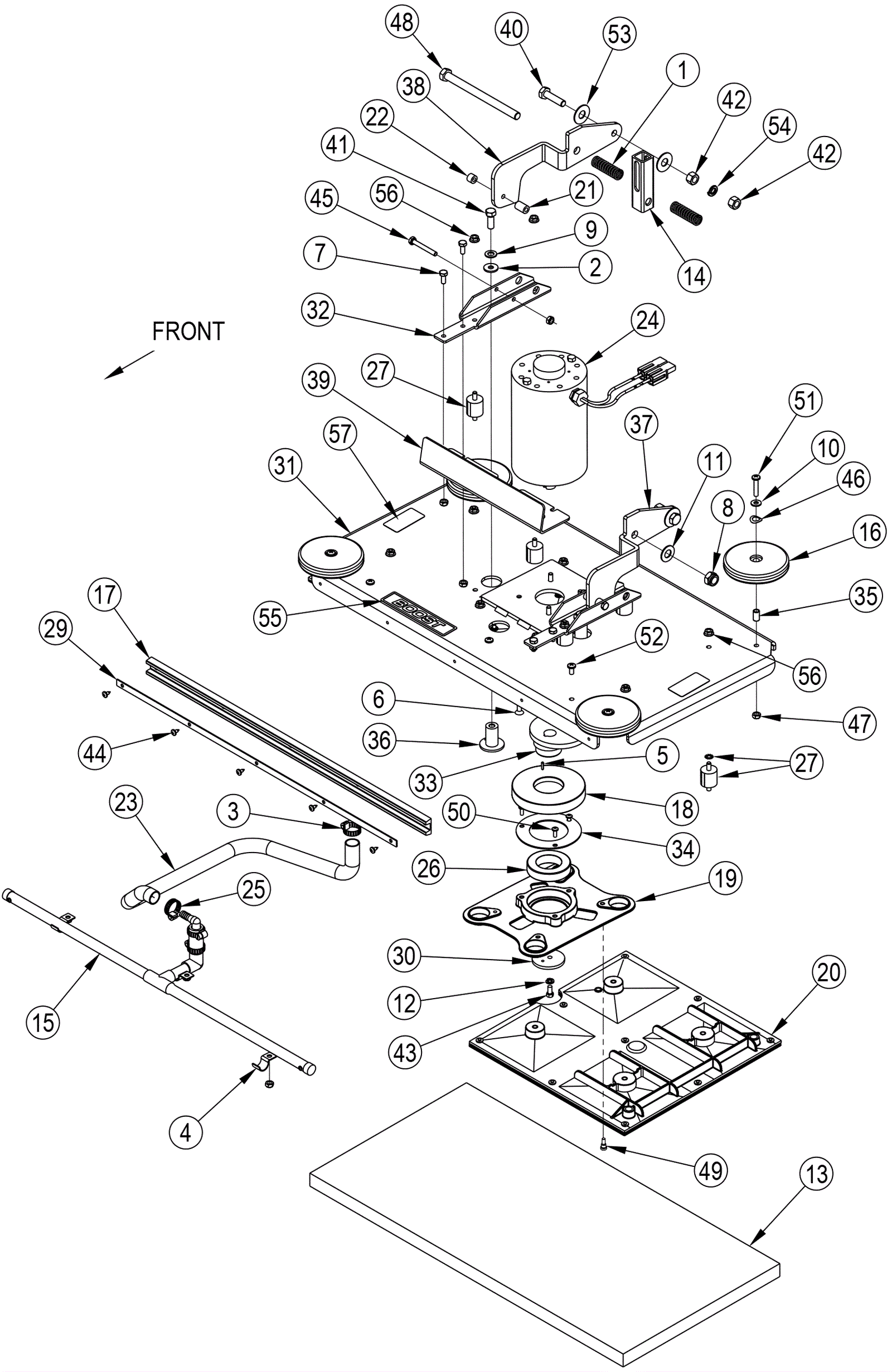

Deck Assembly

#PartDescription ReqNotesAvailability
1 270-0287 Spring 2
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
3 997-2002 Hose clamp #6 1
4 170-0198 Hose clamp 3
5 373-3020 Pin roll 1
6 172-4274 Screw 1/4-20 x 3/4 flat socket head 4
7 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
8 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
9 999-0659 Washer 3/8 medium split lock stainless steel 2
10 999-0016 Washer 1/4 flat plain finish 4
11 170-5602 Washer 1
12 999-0060 Washer 1/4 split lock plain finish 1
13 255-9023 14 x 28 inch Premium Red Pad (pkg of 5) 1
14 272-9812 Tube 1
15 270-0310 28 inch drip tube 1
16 170-7172 4 inch guide wheel 4
17 270-0313 Bumper 1
18 270-0763 Eccentric and shield kit 1 (see TSBCL2010-12)
19 272-7249 Driver plate 1
20a 270-0766 28 inch flex plate assembly 2 (after April 2010)
20b 272-6640 BOOST flex plate kit 2 (before May 2010)
21 270-0304 Nylon spacer 2
22 270-0303 Nylon spacer 2
23 215-9029 Solution hose 1
24a 272-9948 24V brush motor 1
24b 172-8951 Carbon brush and spring kit 1
25 997-2001 Hose clamp 1
26 270-0065 Bearing 1
27a 170-9016 Rubber mounting isolator kit 1
27b 991-7152 Isolator kit (pkg of 8) 1 (NON-EOM)
29 270-0312 Bumper retainer 1
30 270-0322 Eccentric retainer 1
31 170-9065 28 inch plate weldment 1
32 270-0316 Lifting bracket 2
33 270-0763 Eccentric and shield kit 1 (see TSBCL2010-12)
34 270-0126 Bearing retainer 1
35 270-0129 Guide wheel sleeve 4
36 272-6745 Short stabilizer stud 2
37 270-0307 Right lifting arm 1
38 270-0305 Left lifing arm 1
39 270-0328 Front guard 1
40 272-1624 Bolt M10-1.5 x 40mm hex 2
41 999-0850 Bolt 3/8-24 x 1 hex head grade 5 plain finish 2
42 999-0767 Nut M10-1.5 hex coarse thread 4
43 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
44 999-1212 Screw 10-32 x 1/2 hex head stainless steel 5
45 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated 2
46 270-0174 Washer 29/64 x 47/64 bowed 4
47 999-0609 Nut 1/4-20 hex stainless steel 13
48 270-0297 Screw M12-1.75 x 160mm hex head 1
49 270-0844 Shoulder bolt 4
50 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel 3
51 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 4
52 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 3
53 170-6124 Washer flat nylon 4
54 999-0671 Washer M10 split lock plain finish 2
55 170-9202 BOOST decal 1
56 999-0152 Nut 1/4-20 nylon insert lock zinc plated 12
57 170-0226 Moving warning decal 2
