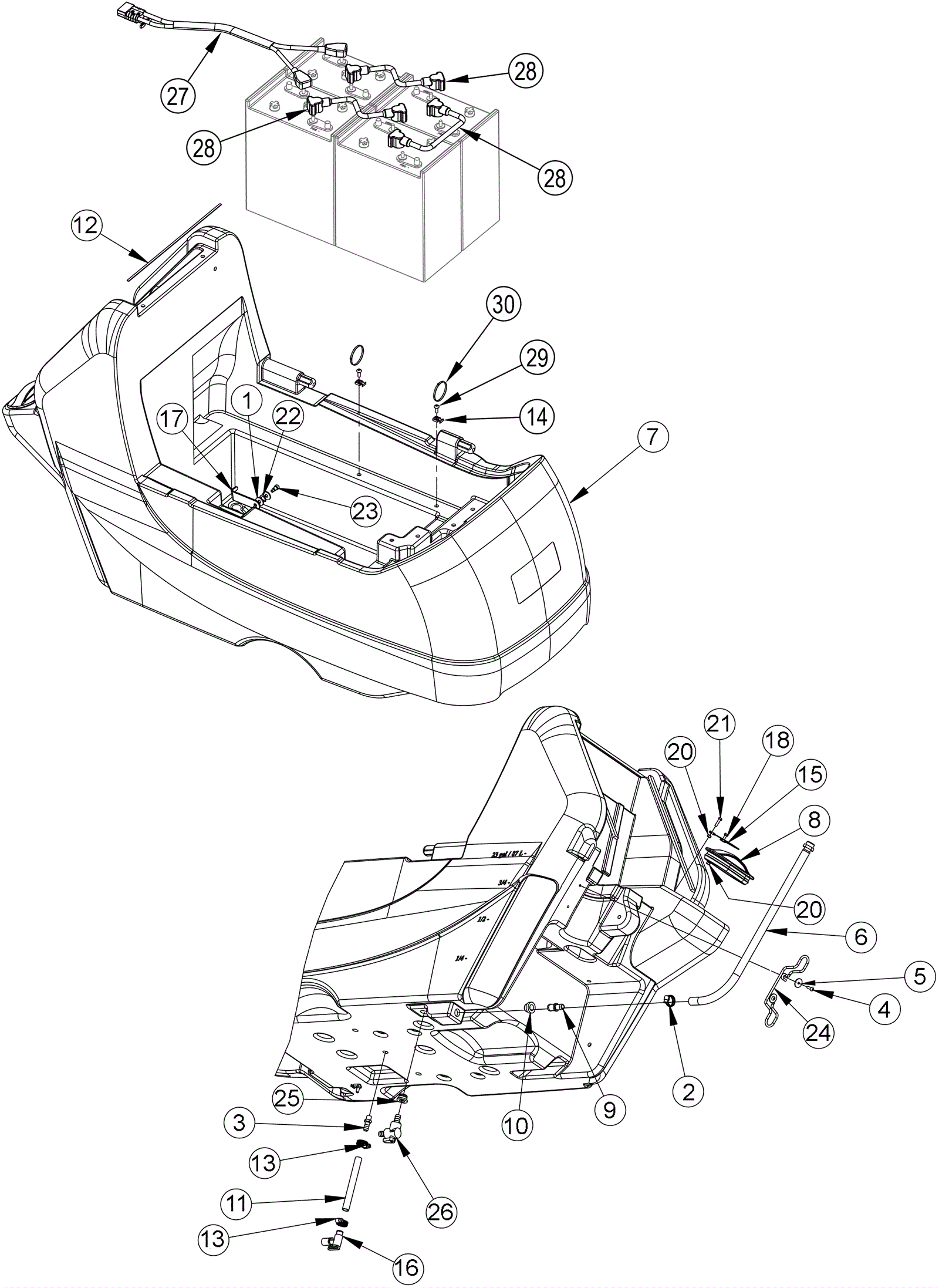

FOCUS II 28 DISC Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
2 997-2002 Hose clamp #6 $2.15 1 ships same day
3 170-1948 Solution hose adapter $12.31 1 usually ships 16-41 days
4 999-1182 Screw M5-.8 x 16mm pan head slotted stainless steel $0.99 2 ships same day
5 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
6a 472-8022 HOSE-PVC-1/2X20 $9.26 1 (before November 2014) usually ships 16-41 days
6b 270-0182 Drain hose $11.58 1 (after October 2014) usually ships 16-41 days
7 270-0176 Solution tank $1,608.28 1 usually ships 1-5 days
8 270-0181 Rear solution tank lid $14.91 1 ships same day
9 270-0183 Straight connector $18.38 2 usually ships 16-41 days
10 170-1387 Bushing fitting $6.22 2 ships same day
11 270-0184 Clear vinyl hose $9.26 1 usually ships 16-41 days
12 472-7965 GASKET-CONTROL PANEL-15.50 $10.85 3 usually ships 16-41 days
13 997-2001 Hose clamp $2.42 2 ships same day
14 170-7388 1/4 tab $12.31 4 usually ships 1-5 days
15 270-0180 Lanyard $12.31 1 usually ships 16-41 days
16 170-7101 Battery drain valve $13.76 1 usually ships 16-41 days
17 270-0173 Prop rod $10.85 1 usually ships 1-5 days
18 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 1 ships same day
20 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
21 999-0886 Screw M5-.8 x 20mm pan head slotted zinc $0.99 1 ships same day
22 270-0174 Washer 29/64 x 47/64 bowed $12.31 1 ships same day
23 270-0175 Bolt M6-1 x 8 x 10mm socket head shoulder $6.22 1 usually ships 1-5 days
24 272-0659 On-board charger cord wrap $5.50 1 ships same day
25 272-8076 Gasket $11.57 1 ships same day
26 170-5402 Manual solution valve $32.69 1 usually ships 16-41 days
27a 270-0185 Battery cable ring style $110.55 1 usually ships 16-41 days
27b 270-0186 Battery cable taper style $114.88 1 usually ships 16-41 days
28a 270-0015 Battery series cable ring style $24.60 3 ships same day
28b 998-0010 Battery jumper cable - ring type (red) $4.84 3 ships same day
29 272-8931 Screw M6-1 x 10mm pan head $13.17 4 usually ships 1-5 days
30 170-0080 Wire tie $12.31 4 usually ships 16-41 days
N/S 270-0195 Screw M6 x 15mm pan head phillips stainless steel $12.31 1 usually ships 16-41 days
N/S 270-0177 Focus II decal $44.58 usually ships 1-5 days
