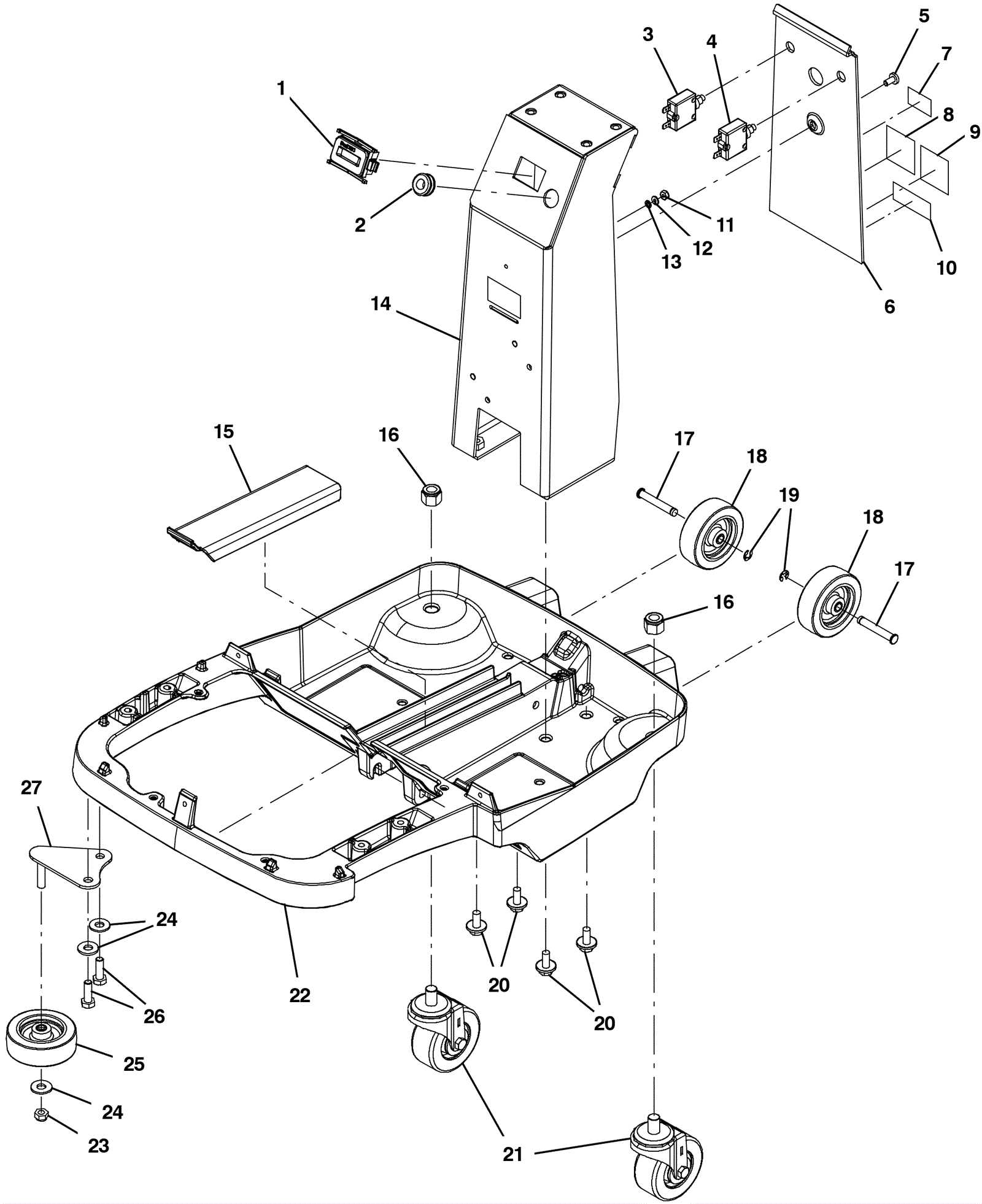

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-9900
|
Hour meter |
1 |
|
|
2 |
275-2364
|
Rubber grommet (Tennant Industrial) |
1 |
|
|
3a |
175-2557
|
5amp circuit breaker |
1 |
(brush) (120V) |
|
3b |
475-1515
|
CIRCUITBREAKER, 2.5 AMP, 230 VOLT |
1 |
(brush) (230V) |
|
4a |
175-0842
|
15amp circuit breaker |
1 |
(main) (120V) |
|
4b |
475-1409
|
CIRCUITBREAKER, 7.5 AMP, 230 VOLT |
1 |
(main) (230V) |
|
5 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
1 |
|
|
6a |
275-5254
|
Column cover assembly |
1 |
(includes 7) (120V) |
|
7 |
N/A
|
Not available |
1 |
(safety decal) (only available in 6) |
|
8 |
275-2369
|
Flammable material decal |
1 |
(230V) |
|
9 |
275-2370
|
Read manual decal |
1 |
(230V) |
|
11 |
275-2353
|
Nut #8-32 hex locking |
1 |
|
|
12 |
999-1158
|
Washer #6 flat stainless steel |
1 |
|
|
13 |
999-1083
|
Washer #8 internal star lock stainless steel |
1 |
|
|
14 |
275-5255
|
Support column assembly |
2 |
|
|
17 |
275-2356
|
Clevis pin |
2 |
|
|
18a |
175-0117
|
Guide wheel with bushing |
2 |
(between SN 10000000 and SN 20000000) (between SN 50000000 and SN 60000000) |
|
18b |
175-0117
|
Guide wheel with bushing |
2 |
(between SN 30000000 and SN 40000000) |
|
19 |
275-2355
|
Retaining ring |
2 |
|
|
20 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
23 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
25b |
175-0117
|
Guide wheel with bushing |
1 |
(between SN 30000000 and SN 40000000) |
|
24 |
999-0024
|
Washer 5/16 flat stainless steel |
3 |
|
|
26 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
27 |
275-5258
|
Bumper wheel bracket |
1 |
|
|
N/S |
275-5259
|
Chassis harness |
1 |
|
|
