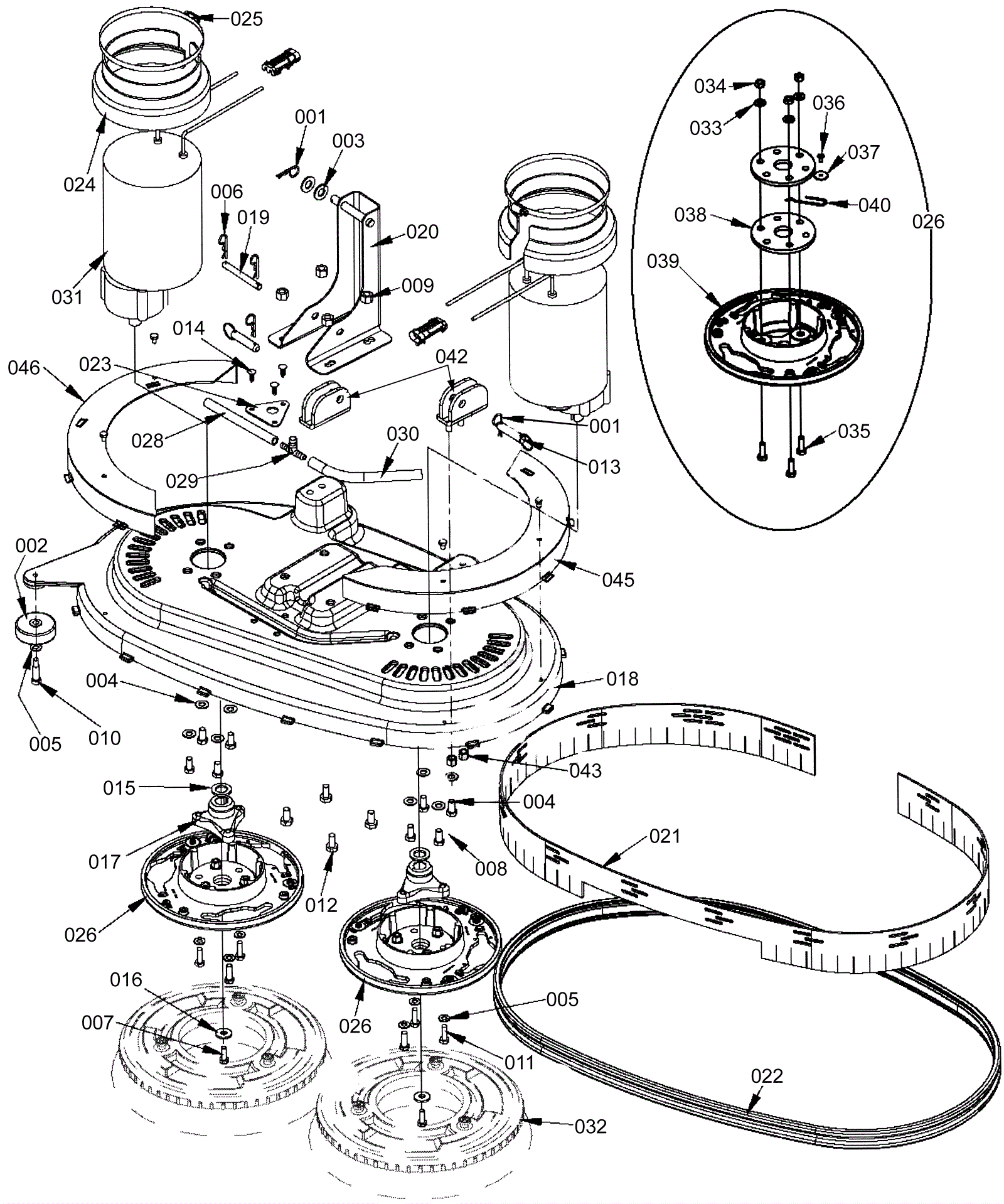

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
997-2509
|
Cotter pin 1/8 x 3/4 stainless steel |
3 |
|
|
002a |
172-0045
|
Guide wheel |
1 |
|
|
002b |
991-3051
|
Guide wheel |
1 |
|
|
003 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
004 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
|
005 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
7 |
|
|
006 |
997-2511
|
Cotter pin |
2 |
|
|
007 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
|
008 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
|
009 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
4 |
|
|
010 |
999-1256
|
Screw 5/16-18 x 3/8 x 1 socket head shoulder |
1 |
|
|
011 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
012 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
4 |
|
|
013 |
272-2115
|
Clevis pin |
2 |
|
|
014 |
272-2117
|
Nylon tree push-in rivet |
3 |
|
|
015 |
999-1134
|
Washer 1 1/4 flat stainless steel |
2 |
|
|
016 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
017 |
172-2088
|
Drive hub (OBSOLETE) |
2 |
|
|
018 |
N/A
|
Not available |
1 |
(32 inch scrub deck) |
|
019 |
272-2124
|
Clevis pin |
1 |
|
|
020 |
272-2748
|
Actuator bracket weldment (OBSOLETE) |
1 |
|
|
021a |
272-2311
|
32 inch rubber skirt |
1 |
(OEM) |
|
021b |
991-5155
|
32 inch rubber skirt |
1 |
(NON-OEM) |
|
022 |
272-2312
|
32 inch extruded bumper with metal band |
1 |
|
|
023 |
272-2131
|
Bracket |
1 |
|
|
024 |
272-2313
|
Motor shroud |
2 |
|
|
025 |
997-2010
|
Hose clamp |
2 |
|
|
026a |
272-1382
|
Counterclockwise brush plate assembly |
1 |
(includes 034-040) |
|
026b |
272-1383
|
Clockwise brush plate assembly |
1 |
(includes 034-040) |
|
028 |
172-1909
|
PVC hose 3/8 x 6 inch |
1 |
|
|
029 |
272-1384
|
Tee barb |
1 |
|
|
030 |
272-1385
|
PVC hose |
1 |
|
|
031a |
272-1344
|
36V brush gear motor assembly |
2 |
|
|
031b |
172-2056
|
Carbon brush (pkg of 4) |
4 |
|
|
031c |
172-2054
|
Brush spring |
4 |
|
|
032 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
|
|
033 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
034 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
|
035 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
3 |
|
|
036 |
999-0409
|
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
|
037 |
999-0588
|
Washer 7/8 flat stainless steel |
1 |
|
|
038 |
172-2070
|
Thermoid disk |
2 |
|
|
039 |
172-2089
|
Drive plate |
1 |
|
|
040 |
172-2087
|
Spring retainer |
1 |
|
|
042 |
N/A
|
Not available |
1 |
(Deck mount weldment) (replaces the left and the right) |
|
043 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
|
045 |
272-8121
|
Right hand deck extension weldment (OBSOLETE) |
1 |
|
|
046 |
272-8120
|
Left hand deck extension weldment (OBSOLETE) |
1 |
|
|
