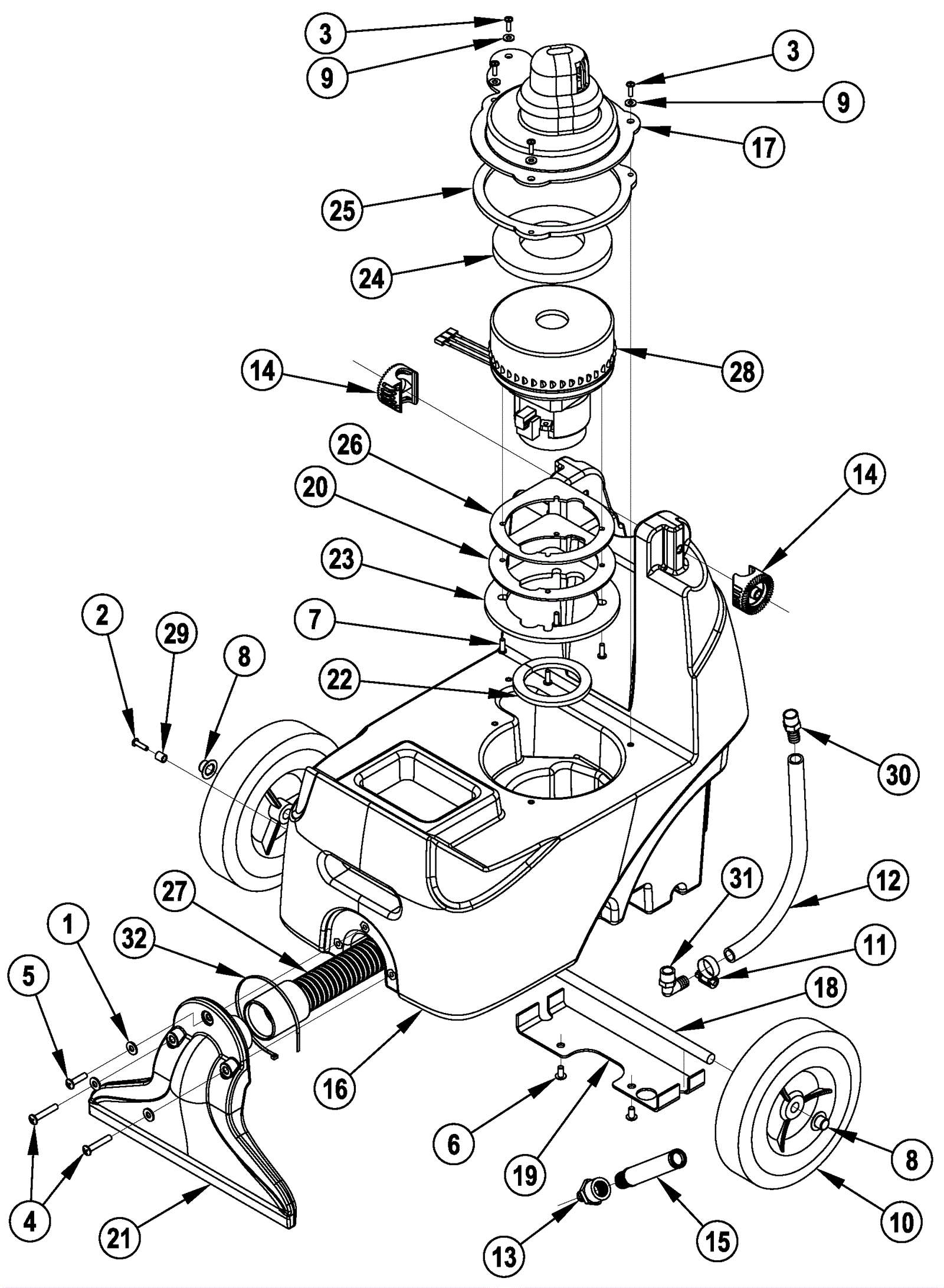

Solution Assembly

#PartDescription ReqNotesAvailability
1 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
2 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 1
3 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 4
4 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel 2
5 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 1
6 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2
7 182-0008 Motor mounting screw 4
8 172-4017 1/2 inch push cap 2
9 999-0998 Washer #10 flat stainless steel 4
10 181-0315 8 inch wheel 2
11 997-2002 Hose clamp #6 1
12 172-4113 Hose 1
13 172-0260 Screen kit with barb 1
14 272-5068 Handle adjustment ratchet 2
15 172-1331 Screen 1
16 272-9548 Solution tank 1
17 272-2792 Vacuum cover assembly (OBSOLETE) 1
18 272-2793 Axle 1
19 272-2794 Axle retainer 1
20 272-2795 Motor plate 1
21 272-2796 Shoe (OBSOLETE) 1
22 272-2797 Gasket 1
23 272-2798 Gasket 1
24 272-2799 Gasket 1
25 272-2800 Vacuum cover gasket 1
26 272-2801 Gasket (OBSOLETE) 1
27 272-2802 1 1/2 inch stretch vacuum hose 1
28a 272-2803 120V vacuum motor 1
28b 172-6012 Carbon brush (pkg of 2) 1
29 172-0400 Bushing 1
30 172-4078 Barb adapter 1/2 X 3/8 NPT 1
31 172-4056 90 degree barbed elbow 1
32 997-2103 8 inch cable tie 1
