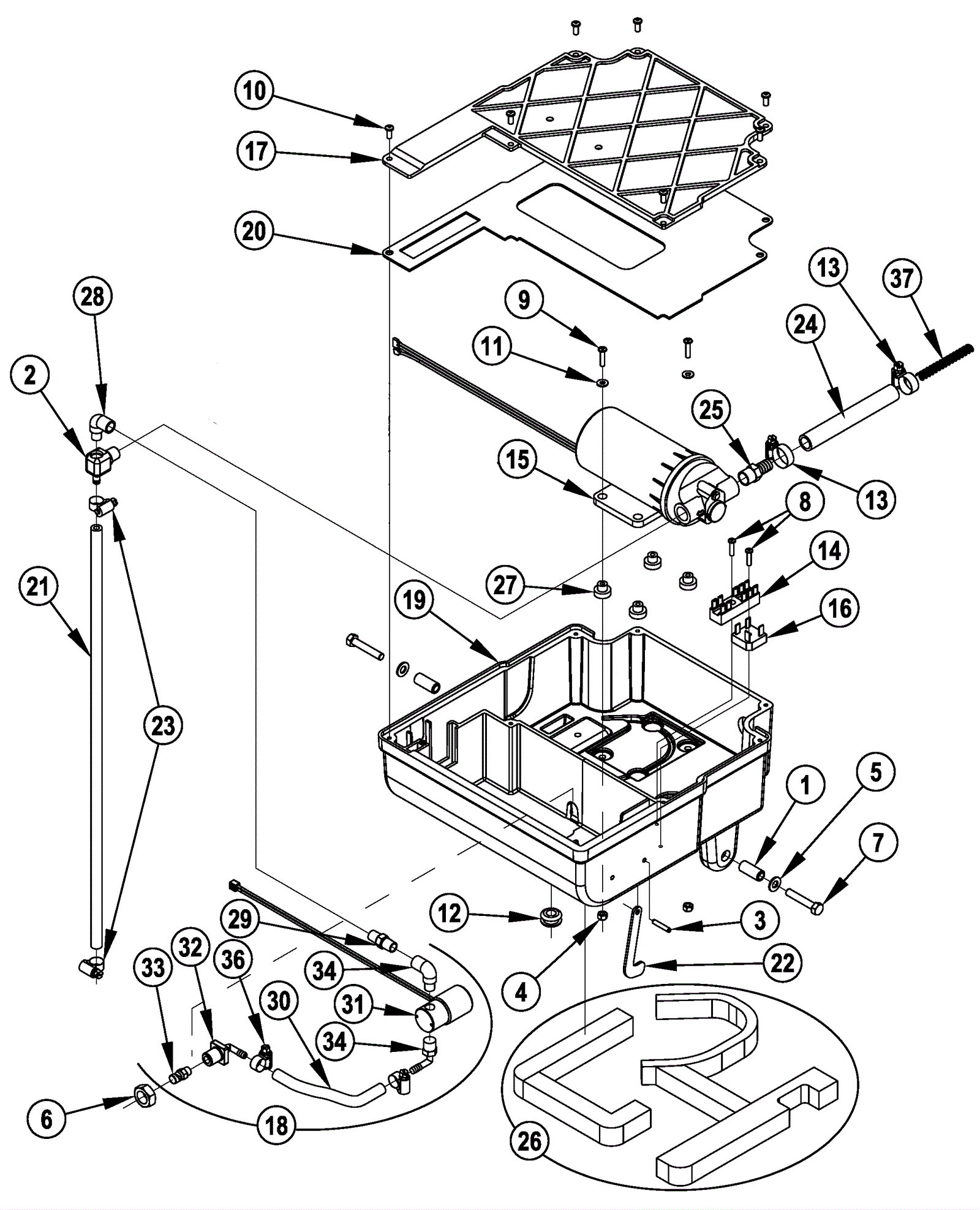

CLEAN TRACK 12 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-2760 Bushing $16.50 2 usually ships 1-5 days
2 172-4156 Adapter and bracket kit (OBSOLETE) $75.10 1 usually ships 17-28 days
3 272-1574 Spring pin 3/16 x 1 inch $10.85 1 usually ships 17-28 days
4 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
6 172-4409 Nut 5/8-11 hex jam stainless steel $10.85 1 usually ships 17-28 days
7 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 2 ships same day
8 272-2188 Screw 8-10 x 3/4 pan head phillips plastite $10.85 2 ships same day
9 999-1861 Screw 10-24 x 7/8 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
10 272-2761 Screw 10-14 x 3/5 pan phillips stainless steel $12.31 7 usually ships 17-28 days
11 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
12 172-7404 Grommet $12.31 1 usually ships 17-28 days
13 997-2002 Hose clamp #6 $2.15 2 ships same day
14 172-4012 Terminal block $9.26 1 usually ships 17-28 days
15a 272-0170 115V 60 PSI pump $421.17 1 (OEM) usually ships 17-28 days
15b 991-8547 115V 60 PSI pump $163.49 1 (NON-OEM) ships same day
16 172-4139 35amp rectifier $13.76 1 ships same day
17 272-2763 Base panel $58.41 1 usually ships 1-5 days
18 272-2764 Valve nozzle assembly $360.40 1 (includes 29-34 and 36) usually ships 1-5 days
19 272-2765 Base (OBSOLETE) $242.59 1 usually ships 17-28 days
20 272-2766 Base panel gasket $12.31 1 usually ships 17-28 days
21 272-2767 Hose 1/4 x 21 inch $10.85 1 usually ships 17-28 days
22 272-2768 Base hook $18.38 1 usually ships 1-5 days
23 997-2001 Hose clamp $2.42 2 ships same day
24 272-2769 Hose $10.85 1 usually ships 1-5 days
25 172-4078 Barb adapter 1/2 X 3/8 NPT $12.31 1 usually ships 17-28 days
26 272-2770 Muffler set $29.23 1 usually ships 1-5 days
27 272-2771 Grommet $13.17 4 usually ships 1-5 days
28 172-0299 Brass elbow $12.31 1 usually ships 17-28 days
29 N/A Not available Call for price 1 (Nipple, only available in 272-2764) usually ships 3-26 days
30 172-4072 Solution hose $12.31 1 usually ships 17-28 days
31 272-0340 Solenoid valve $275.91 1 ships same day
32 272-2773 Panel mounting elbow $12.31 1 ships same day
33 272-2774 Nozzle $23.01 1 ships same day
34 172-0299 Brass elbow $12.31 1 usually ships 17-28 days
36 997-2001 Hose clamp $2.42 2 ships same day
37 272-9545 Compression spring $16.26 1 usually ships 1-5 days
