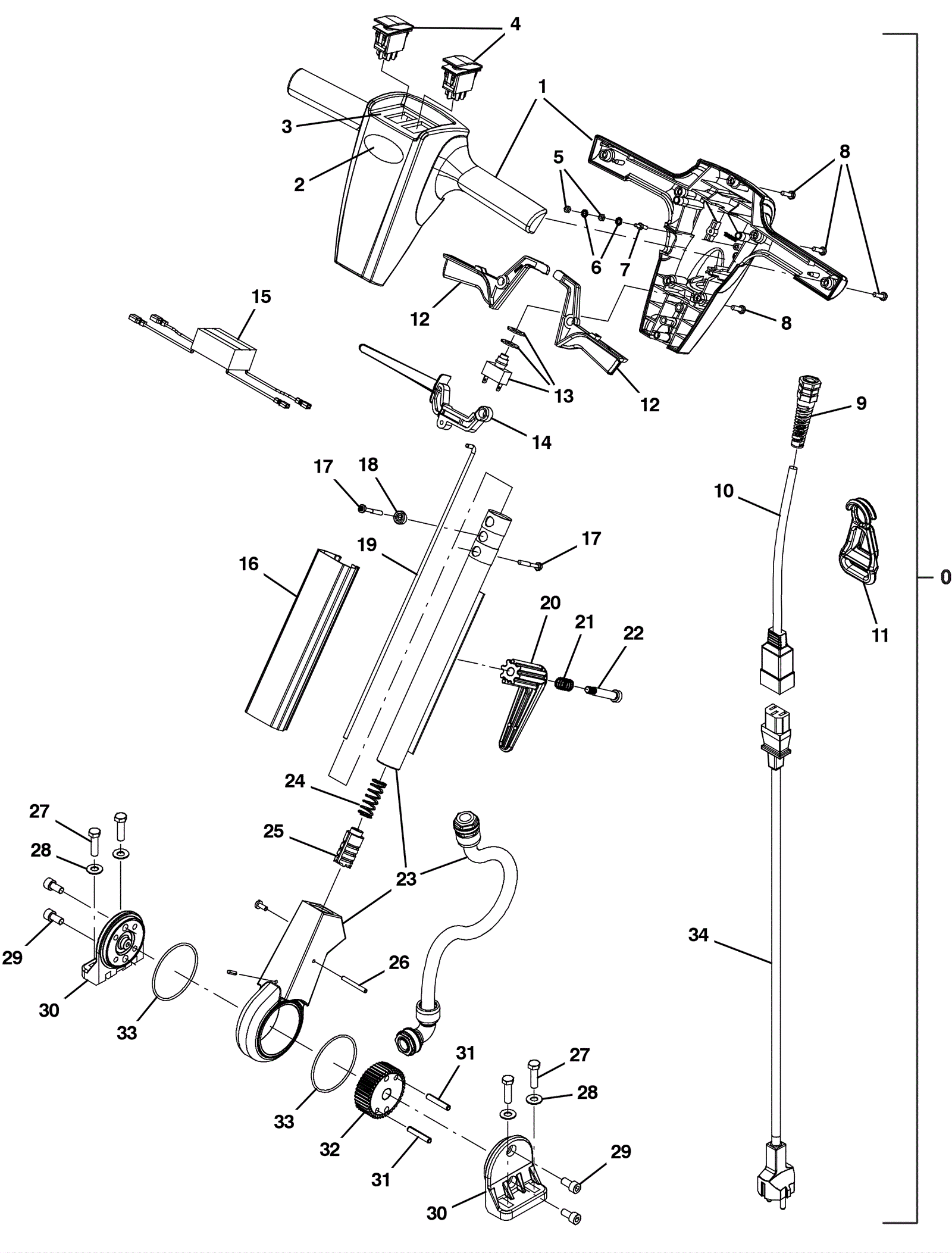

T1 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
0a 275-5251 Handle assembly $986.48 1 (includes 1-10a, 11-14, 16-33) (120V) usually ships 1-5 days
0b 372-3699 Handle assembly Call for price 1 (includes 1-9, 10b-33) (230V) usually ships 10-16 days
1 275-5252 Handle cover assembly $201.63 1 (includes 2-3) usually ships 10-16 days
2 275-2338 Tennant logo decal $5.28 1 usually ships 1-5 days
3 275-5253 Operational instrument panel $5.02 1 usually ships 1-5 days
4 175-4822 Rocker switch $41.69 2 ships same day
5 999-0869 Nut M4-.7 hex coarse thread plain finish $0.99 2 ships same day
6 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
7 275-2313 Screw M4-.7 x 12mm hex head double threaded $1.85 1 usually ships 10-16 days
8 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.04 7 ships same day
9 175-0001 Strain relief $12.65 1 ships same day
10a 275-9149 14/3 pigtail cord 16 inch $23.21 1 (120V) usually ships 10-16 days
10b 475-0835 CORD, 1.5MM SQ/3, 16.0L, W/ RECEPT, BLK $12.32 1 (230V) usually ships 10-16 days
11a 275-2340 Clip (OBSOLETE) $6.93 1 (between SN 60000000 and SN 70000000) usually ships 10-16 days
11b 175-0236 Cord belt clip $10.23 1 (between SN 10000000 and SN 40000000) ships same day
12 275-9132 Switch lever $10.34 2 ships same day
13 175-6400 Push button switch kit $31.79 1 ships same day
14 275-2310 Handle adjustment lever $8.47 1 ships same day
15 475-1474 FILTER, HANDLE, 250 VAC, 50/60HZ, 8 AMP $42.90 1 (230V) usually ships 10-16 days
16 275-2341 Handle cover $10.34 1 usually ships 10-16 days
17 275-4694 Screw #10-14 x 1 1/2 shoulder self-tapping $3.04 2 usually ships 10-16 days
18 275-2308 Flanged bushing $4.88 1 usually ships 10-16 days
19 275-2342 Release rod $5.28 1 usually ships 10-16 days
20 175-5503 Quick release cord hook $7.70 1 ships same day
21 175-5504 Spring $4.88 1 usually ships 10-16 days
22 175-1719 Shoulder bolt $5.50 1 usually ships 10-16 days
23 275-2343 Handle tube assembly with wire harness $142.78 1 usually ships 10-16 days
24 275-2322 Spring $3.04 1 usually ships 10-16 days
25 275-2319 Plunger kit $66.66 1 usually ships 10-16 days
26 275-2325 Roll pin $1.85 1 usually ships 10-16 days
27 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 4 ships same day
28 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
29 999-0802 Screw M8-1.25 x 16mm socket head $0.99 4 ships same day
30 275-2314 Handle pivot $40.70 2 usually ships 10-16 days
31 275-2316 Roll pin $1.85 2 usually ships 10-16 days
32 275-2317 Locking gear $121.88 1 usually ships 10-16 days
33 175-3967 Seal $5.50 2 ships same day
34a 275-9119 14/3 extension cord 50 foot $201.63 1 (120V) ships same day
34b 375-1576 Extension cord $187.44 1 (230V) usually ships 10-16 days
