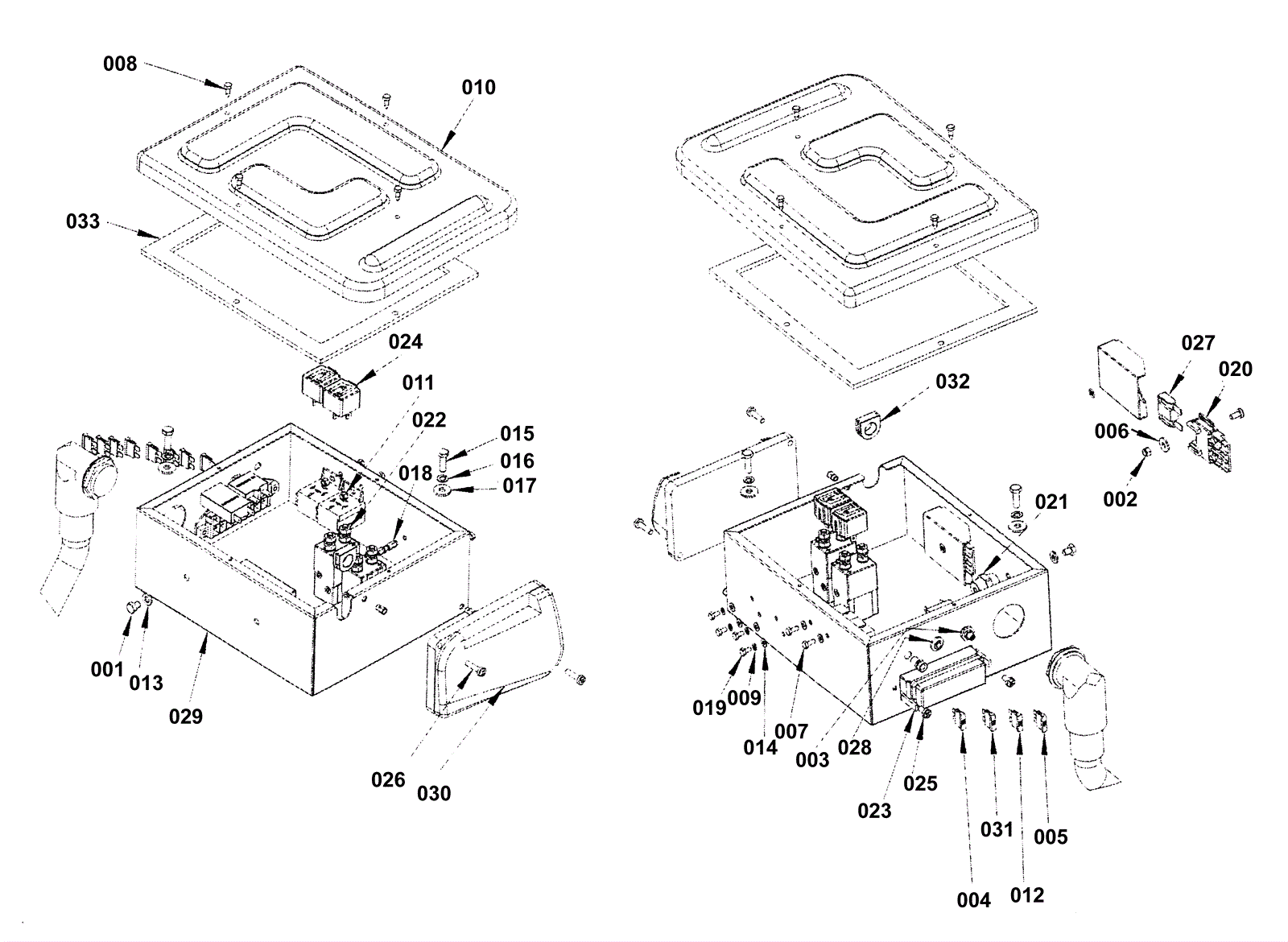

Terra 4300B Electrical Parts Assemblies

#PartDescriptionPriceReqNotesAvailability
001 272-8401 Electrical assemblies hardware kit $183.15 1 Screw hex head M6 X 8 mm usually ships 1-5 days
002 272-8401 Electrical assemblies hardware kit $183.15 1 Nut hex self lock low M5 usually ships 1-5 days
003 272-8362 Fuse 10 amp $61.09 1 usually ships 16-41 days
004 272-8363 10amp fuse $27.53 3 usually ships 1-5 days
005 181-0963 40amp fuse $10.90 1 usually ships 16-41 days
006 272-8401 Electrical assemblies hardware kit $183.15 1 Washer 5 x 15 flat usually ships 1-5 days
007 999-0777 Screw M4-.7 x 10mm hex head plain finish $0.99 2 ships same day
008 272-8401 Electrical assemblies hardware kit $183.15 4 Screw 4 1/5 x 9 1/2 hex head usually ships 1-5 days
009 272-8401 Electrical assemblies hardware kit $183.15 4 Washer split 5 usually ships 1-5 days
010 272-8364 Electrical components cover box $120.78 1 usually ships 1-5 days
011 272-8401 Electrical assemblies hardware kit $183.15 2 Nut M4 self lock low hex head usually ships 1-5 days
012 272-8365 25amp fuse $10.90 2 usually ships 16-41 days
013 272-8401 Electrical assemblies hardware kit $183.15 1 Washer 6 x 12 1/2 flat usually ships 1-5 days
014 272-8401 Electrical assemblies hardware kit $183.15 6 Washer 4 x 9 flat usually ships 1-5 days
015 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
016 272-8401 Electrical assemblies hardware kit $183.15 2 Washer 6 split usually ships 1-5 days
017 272-8401 Electrical assemblies hardware kit $183.15 2 Washer 6 x 18 flat usually ships 1-5 days
018 272-7143 Spacer M4 $8.00 2 usually ships 1-5 days
019 272-8401 Electrical assemblies hardware kit $183.15 2 Screw M4 x 8 hex head usually ships 1-5 days
020 172-3814 Main fuse holder $51.89 1 usually ships 1-5 days
021 272-9579 Insulator $17.68 1 usually ships 16-41 days
022 272-7141 24V switch $162.78 1 usually ships 16-41 days
023 272-8366 Fuse box $54.43 1 usually ships 1-5 days
024 272-8367 24V relay $55.83 2 usually ships 16-41 days
025 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 3 ships same day
026 272-8401 Electrical assemblies hardware kit $183.15 2 Screw pan head M4 X 20 mm usually ships 1-5 days
027 272-8368 Fuse 70 amp $10.90 1 usually ships 1-5 days
028 275-2572 Right hand front arm weldment (gray) (Tennant Industrial) $93.52 1 usually ships 1-5 days
029 272-8370 Electric components box (OBSOLETE) $81.51 1 usually ships 1-5 days
030 472-1233 CONTROLLER DRIVE WHEEL PKD $1,190.03 1 usually ships 16-41 days
031 172-3648 15amp fuse $10.90 2 usually ships 16-41 days
032 272-8371 Grommet (OBSOLETE) $8.20 2 usually ships 1-5 days
033 272-8445 Electric box gasket (OBSOLETE) Call for price 1 usually ships 1-5 days
034 272-8372 Electric box harness (OBSOLETE) $202.42 1 usually ships 1-5 days
035 272-8446 Battery harness $237.66 1 usually ships 1-5 days
036 272-8373 Harness machine $1,016.75 1 usually ships 1-5 days
037 272-8374 120amp connector (red) $46.62 1 usually ships 16-41 days
038 272-8401 Electrical assemblies hardware kit $183.15 1 includes 001 thru 002, 006, 008 thru 009, 011, 013 thru 014, 016 thru 017, 019 and 026 usually ships 1-5 days
