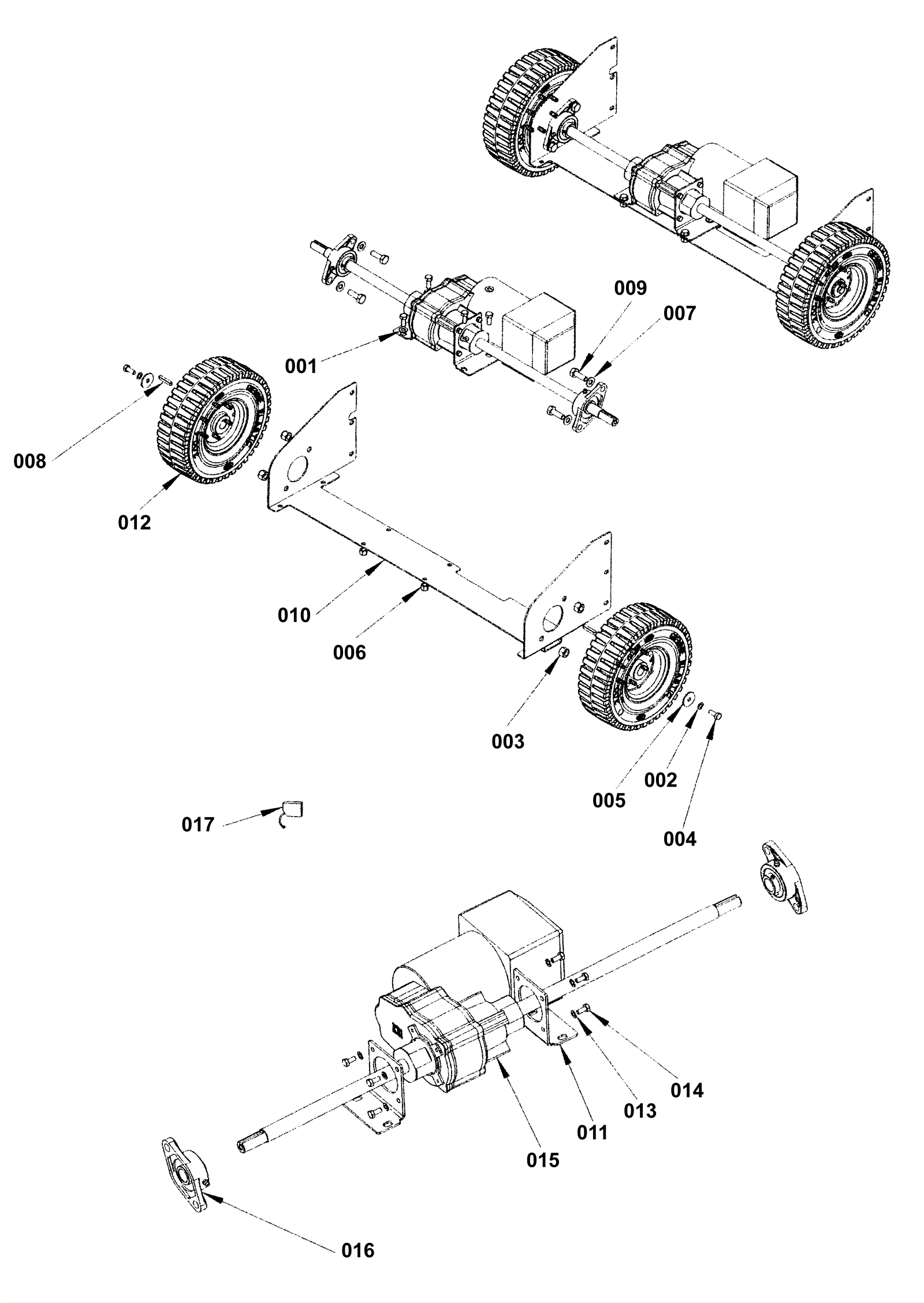

Terra 4300B Drive System Assembly

#PartDescriptionPriceReqNotesAvailability
001 272-8398 Drive assembly hardware kit $190.31 4 Washer 8 x 17 flat usually ships 1-5 days
002 272-8398 Drive assembly hardware kit $190.31 2 Washer 8 split usually ships 1-5 days
003 272-8398 Drive assembly hardware kit $190.31 4 Nut M10 self lock hex head usually ships 1-5 days
004 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 6 ships same day
005 272-8398 Drive assembly hardware kit $190.31 2 Washer 8 x 32 flat usually ships 1-5 days
006 272-8398 Drive assembly hardware kit $190.31 4 Nut M8 self lock hex head usually ships 1-5 days
007 272-8398 Drive assembly hardware kit $190.31 4 Washer 10 x 21 flat usually ships 1-5 days
008 272-0751 Feather key $12.18 2 ships same day
009 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread $0.99 4 ships same day
010 272-8348 Rear wheels bridge $155.00 1 usually ships 1-5 days
011 272-8349 Drive motor support $61.09 2 usually ships 1-5 days
012a 272-8350 Rear wheel $393.17 2 usually ships 16-41 days
012b 272-8438 Non marking rear wheel (OBSOLETE) $587.85 1 usually ships 1-5 days
013 999-0051 Washer #6 medium split lock $0.99 8 ships same day
014 999-0978 Bolt M6-1 x 14mm hex head stainless steel $0.99 8 ships same day
015 272-8240 Drive motor assembly includes axle $4,744.27 1 usually ships 16-41 days
016 272-8351 Ball bearing with flange $28.94 2 usually ships 1-5 days
017 272-0845 Carbon brush kit $156.25 1 usually ships 1-5 days
018 272-8398 Drive assembly hardware kit $190.31 1 includes 001 thru 003, 005 thru 007 usually ships 1-5 days
