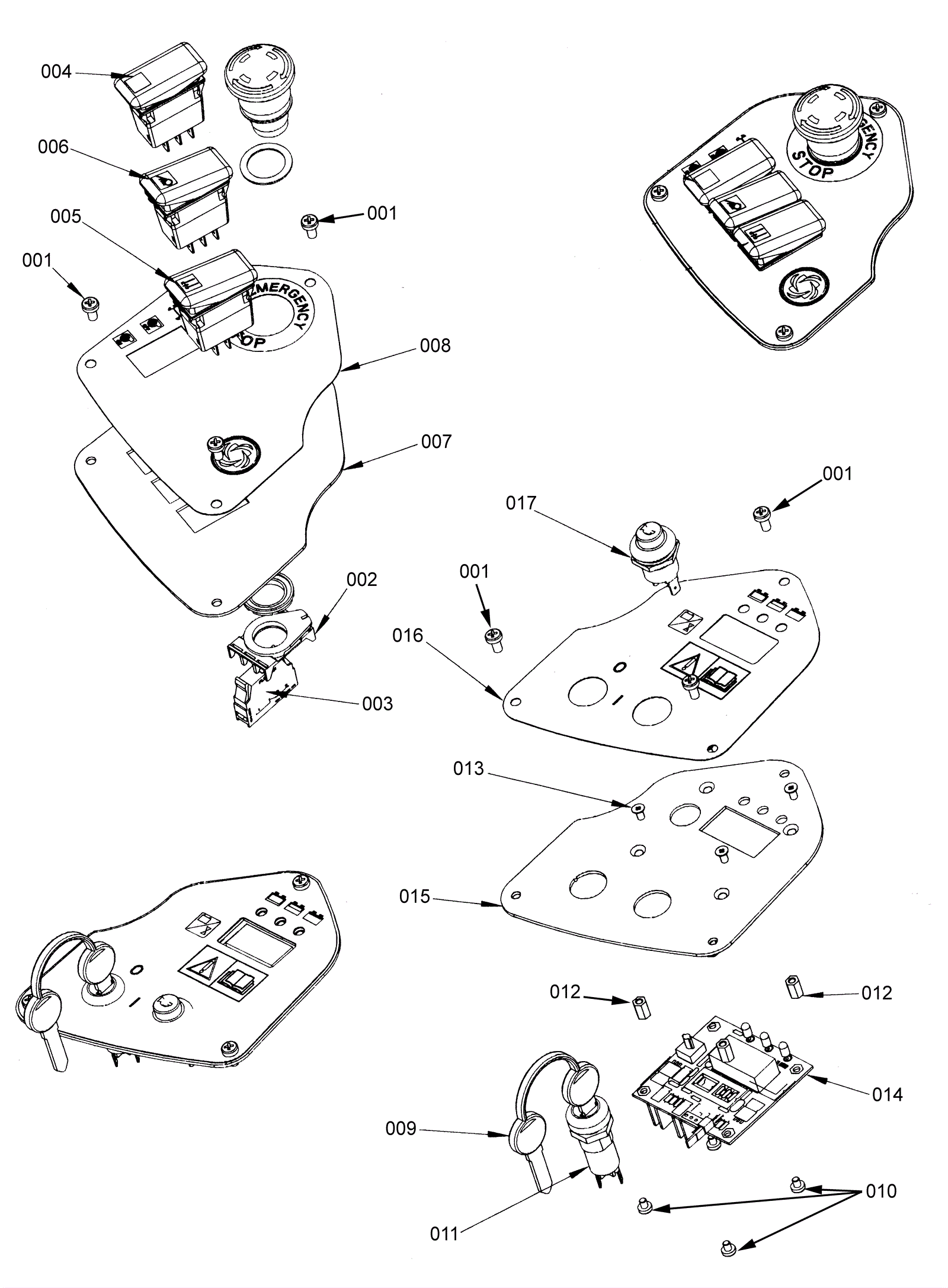

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
999-1090
|
Screw M5-.8 x 10mm pan head phillips zinc plated |
$0.99
|
6 |
|
ships same day |
002 |
272-8340
|
Emergency switch |
$101.56
|
1 |
|
usually ships 17-28 days |
003 |
272-8341
|
Contact |
$15.48
|
1 |
|
usually ships 1-5 days |
004 |
272-8434
|
Filter shaker vacuum on/off switch |
$101.56
|
1 |
|
usually ships 17-28 days |
005 |
272-8342
|
Front light switch |
$51.21
|
1 |
|
usually ships 17-28 days |
006 |
272-8343
|
Switch |
$52.67
|
1 |
|
usually ships 1-5 days |
007 |
272-8435
|
Left control panel (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
008 |
272-8344
|
Decal left control panel (OBSOLETE) |
$47.80
|
1 |
|
usually ships 1-5 days |
009 |
991-1634
|
Key (pkg of 2) |
$14.21
|
1 |
|
ships same day |
010 |
272-8397
|
Control panel assembly hardware kit |
$75.67
|
4 |
Screw M4 x 5 mm pan head |
usually ships 1-5 days |
011a |
172-3785
|
Key switch with two keys |
$64.90
|
1 |
|
ships same day |
011a |
991-1634
|
Key (pkg of 2) |
$14.21
|
1 |
|
ships same day |
012 |
272-8397
|
Control panel assembly hardware kit |
$75.67
|
4 |
Spacer |
usually ships 1-5 days |
013 |
272-8397
|
Control panel assembly hardware kit |
$75.67
|
4 |
Screw M4 x 8 mm |
usually ships 1-5 days |
014 |
272-8345
|
Electronic board |
$490.19
|
1 |
|
usually ships 17-28 days |
015 |
272-8436
|
Right control panel (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
016 |
272-8437
|
Decal right control panel (OBSOLETE) |
Call for price
|
1 |
|
usually ships 1-5 days |
017 |
272-8346
|
Horn |
$35.60
|
1 |
|
usually ships 1-5 days |
018 |
272-8347
|
Harness control panel (OBSOLETE) |
$18.52
|
1 |
|
usually ships 1-5 days |
019 |
272-8397
|
Control panel assembly hardware kit |
$75.67
|
1 |
includes 010 and 012 thru 013 |
usually ships 1-5 days |
