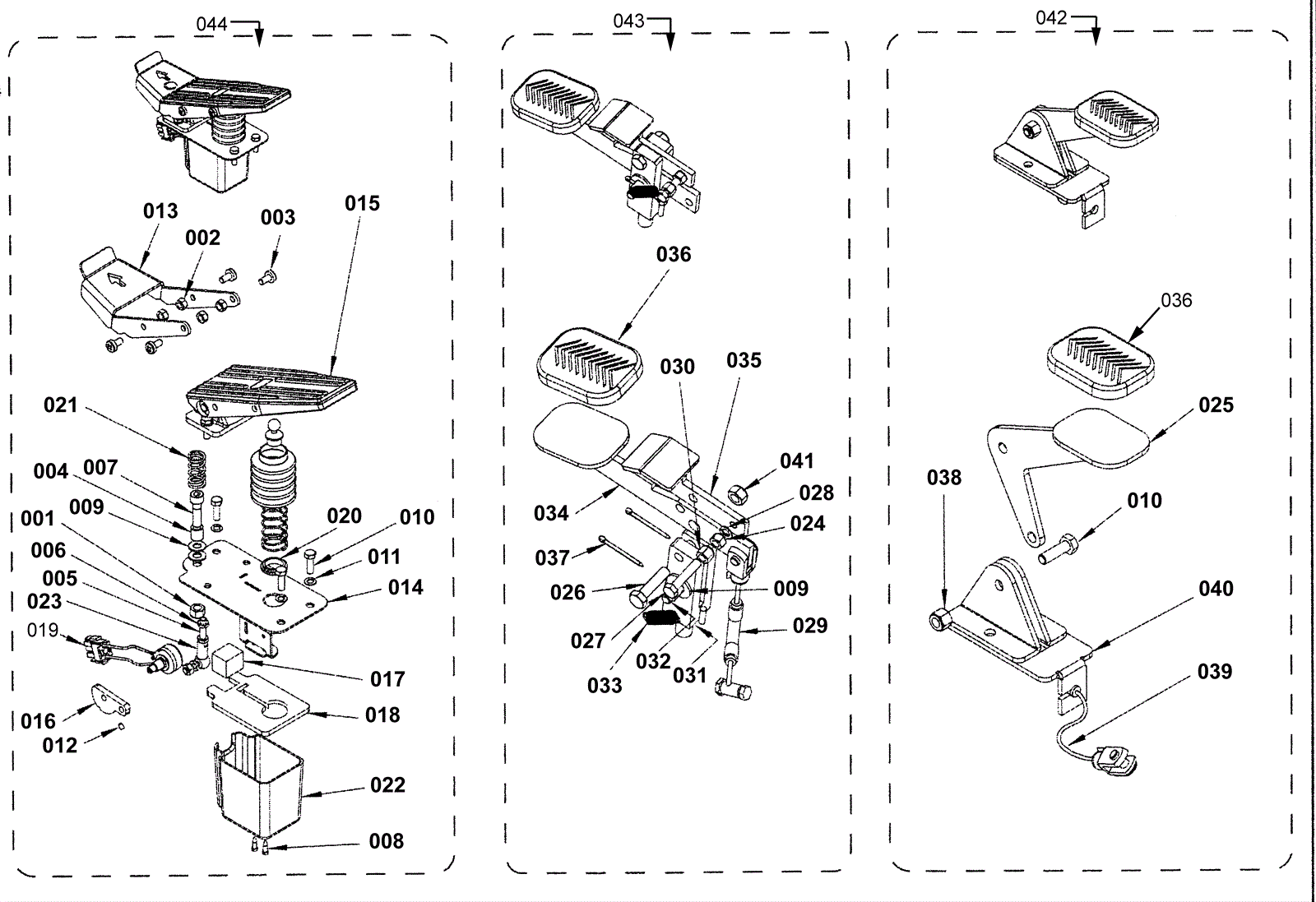

Pedal Assemblies

#PartDescriptionPriceReqNotesAvailability
001 270-8199 Speed control pedal assembly $704.91 1 Nut M8 self lock low hex head usually ships 1-5 days
002 270-8199 Speed control pedal assembly $704.91 6 Nut M6 self lock low hex head usually ships 1-5 days
003 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 4 ships same day
004 270-8199 Speed control pedal assembly $704.91 1 Spacer 8 x 12 x 12 1/2 usually ships 1-5 days
005 270-8199 Speed control pedal assembly $704.91 1 Rod tension M6 x 32 mm usually ships 1-5 days
006 270-8199 Speed control pedal assembly $704.91 2 Nut M6 low hex head usually ships 1-5 days
007 270-8199 Speed control pedal assembly $704.91 1 Screw M8 x 25 mm cylindrical head usually ships 1-5 days
008 270-8199 Speed control pedal assembly $704.91 2 Screw 3 9/10 x 13 hex head usually ships 1-5 days
009 270-8199 Speed control pedal assembly $704.91 4 Washer 8 x 17 flat usually ships 1-5 days
010 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 4 ships same day
011 270-8199 Speed control pedal assembly $704.91 3 Washer 6 split usually ships 1-5 days
012 270-8199 Speed control pedal assembly $704.91 1 Dowel M4 x 6 mm usually ships 1-5 days
013 270-8199 Speed control pedal assembly $704.91 1 Speed control pedal bracket usually ships 1-5 days
014 270-8199 Speed control pedal assembly $704.91 1 Speed control pedal support usually ships 1-5 days
015 270-8199 Speed control pedal assembly $704.91 1 Speed control pedal usually ships 1-5 days
016 270-8199 Speed control pedal assembly $704.91 1 Lever usually ships 1-5 days
017 270-8199 Speed control pedal assembly $704.91 1 Gasket 24 mm usually ships 1-5 days
018 270-8199 Speed control pedal assembly $704.91 1 Pedal gasket usually ships 1-5 days
019 270-8199 Speed control pedal assembly $704.91 1 Harness drive pedal usually ships 1-5 days
020 270-8199 Speed control pedal assembly $704.91 1 Washer usually ships 1-5 days
021 270-8199 Speed control pedal assembly $704.91 1 Spring 35 mm usually ships 1-5 days
022 270-8199 Speed control pedal assembly $704.91 1 Pedal cover usually ships 1-5 days
023 270-8199 Speed control pedal assembly $704.91 1 Dowel M6 usually ships 1-5 days
024 272-8338 Brake pedal assembly kit $325.55 1 Nut M5 hex head usually ships 1-5 days
025 272-8337 Skirt raising device assembly kit (OBSOLETE) $156.25 1 Pedal skirt raising device usually ships 1-5 days
026 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 1 ships same day
027 272-8338 Brake pedal assembly kit $325.55 1 Screw M5 X 25 mm hex head usually ships 1-5 days
028 272-8338 Brake pedal assembly kit $325.55 1 Washer 5 split usually ships 1-5 days
029 272-8338 Brake pedal assembly kit $325.55 1 Brake cable usually ships 1-5 days
030 272-8338 Brake pedal assembly kit $325.55 1 Nut M5 self lock hex head usually ships 1-5 days
031 272-8338 Brake pedal assembly kit $325.55 1 Support pedal usually ships 1-5 days
032 272-8338 Brake pedal assembly kit $325.55 1 Pin pedal usually ships 1-5 days
033 272-8338 Brake pedal assembly kit $325.55 1 Spring usually ships 1-5 days
034 272-8338 Brake pedal assembly kit $325.55 1 Pedal usually ships 1-5 days
035 272-8338 Brake pedal assembly kit $325.55 1 Pedal brake usually ships 1-5 days
036 272-8337 Skirt raising device assembly kit (OBSOLETE) $156.25 2 Pedal cover usually ships 1-5 days
037 272-8338 Brake pedal assembly kit $325.55 2 Split pin 2 x 25 usually ships 1-5 days
038 272-8337 Skirt raising device assembly kit (OBSOLETE) $156.25 1 Nut M6 self lock hex head usually ships 1-5 days
039 272-8337 Skirt raising device assembly kit (OBSOLETE) $156.25 1 Cable skirt raising device usually ships 1-5 days
040 272-8337 Skirt raising device assembly kit (OBSOLETE) $156.25 1 Pedal support usually ships 1-5 days
041 272-8338 Brake pedal assembly kit $325.55 1 Nut M6 usually ships 1-5 days
042 272-8337 Skirt raising device assembly kit (OBSOLETE) $156.25 1 includes 025, 036, 038 thru 040 usually ships 1-5 days
043 272-8338 Brake pedal assembly kit $325.55 1 includes 025, 027 thru 035, 037, 041 usually ships 1-5 days
