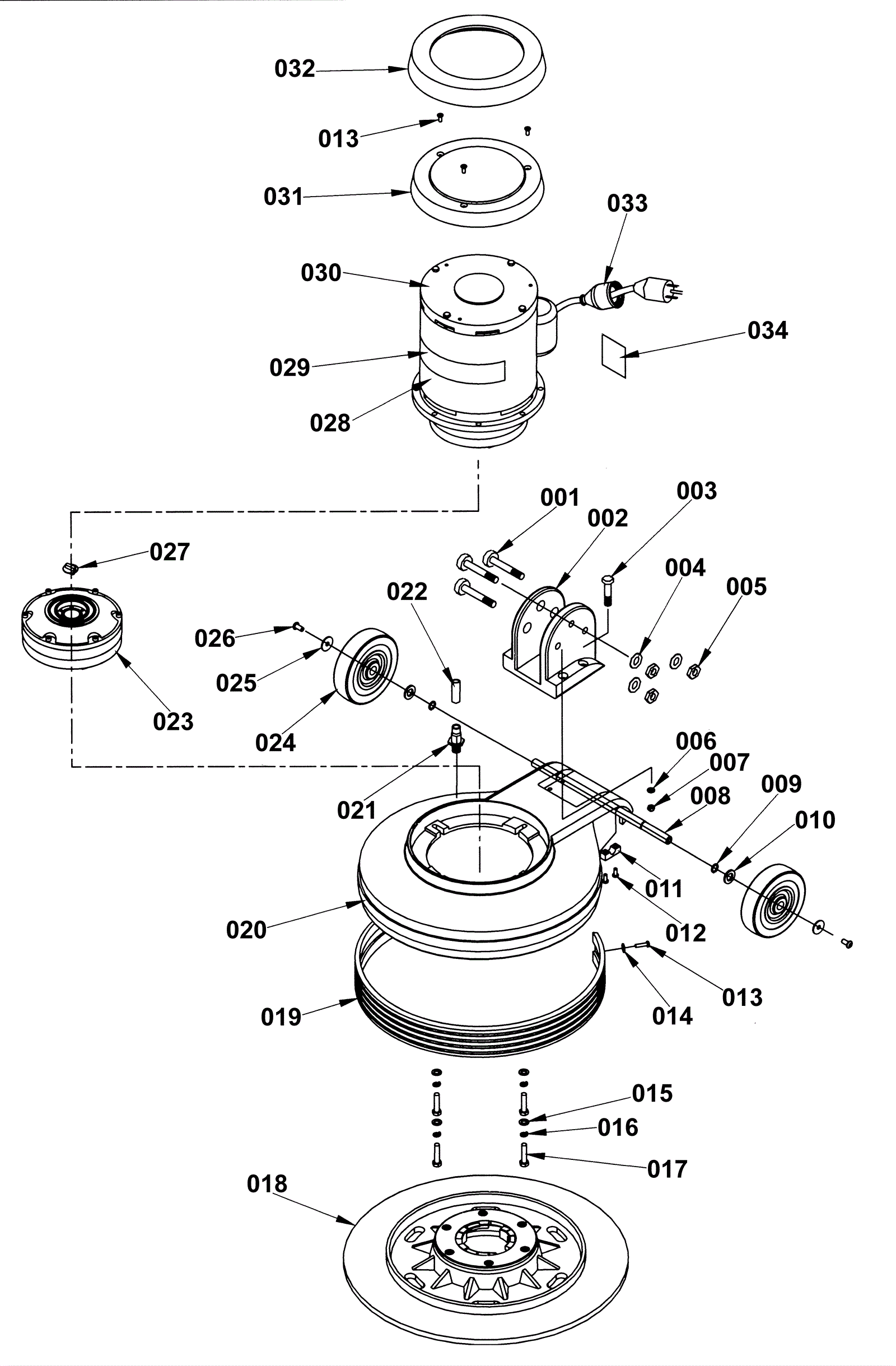

Base Assembly 170HD and 200HD after SN1737262

#PartDescription ReqNotesAvailability
001 172-2924 Hardware kit 3
002 172-2944 Pivot handle kit (OBSOLETE) 1
003 172-2924 Hardware kit 4
004 172-2924 Hardware kit 3
005 172-2924 Hardware kit 3
006 172-2924 Hardware kit 4
007 172-2924 Hardware kit 4
008a 172-2977 Wheel kit (OBSOLETE) 1
008b 272-3363 Axle kit (OBSOLETE) 1
009a 172-2977 Wheel kit (OBSOLETE) 2
009b 272-3363 Axle kit (OBSOLETE) 2
009c 172-2944 Pivot handle kit (OBSOLETE) 2
010a 172-2977 Wheel kit (OBSOLETE) 2
010b 272-3363 Axle kit (OBSOLETE) 2
010c 172-2944 Pivot handle kit (OBSOLETE) 2
011 172-2954 Axle clamp block (OBSOLETE) 2
012 172-2924 Hardware kit 4
013 172-2924 Hardware kit 5
014 172-2924 Hardware kit 2
015 172-2924 Hardware kit 4
016 172-2924 Hardware kit 4
017 172-2924 Hardware kit 4
018a 996-0877 Pad driver 1
018b 172-1753 19 Inch pad driver with clutch plate 1
019a 172-2956 Bumper 17inch 1
019b 172-2957 Bumper 20inch 1
020a 172-2958 Frame 17inch (OBSOLETE) 1
020b 172-2959 Frame 20inch (OBSOLETE) 1
021 172-2960 Hose barb (OBSOLETE) 1
022 172-2961 Solution Hose (OBSOLETE) 1
023 172-2964 Triple planetary gear box (OBSOLETE) 1
024 172-2977 Wheel kit (OBSOLETE) 2
025a 172-2977 Wheel kit (OBSOLETE) 2
025b 272-3363 Axle kit (OBSOLETE) 2
025c 172-2924 Hardware kit 2
026a 172-2977 Wheel kit (OBSOLETE) 2
026b 272-3363 Axle kit (OBSOLETE) 2
026c 172-2924 Hardware kit 2
027 240-6585 Coupler 1
028 172-2969 Motor label (OBSOLETE) 1
029a 172-2980 Pacesetter 170HD decal (OBSOLETE) 1
029b N/A Not available 1 (Pacesetter 200HD decal)
030a 172-2978 Motor 1 3/4hp (OBSOLETE) 1
030b 240-0091 Running capacitor 1
030c 172-4578 Capacitor (OBSOLETE) 1
030d 172-2967 Rotary switch 1
030e 172-2968 Stationary switch 1
031 172-2970 Motor top cover (OBSOLETE) 1
032 172-2971 Top cover bumper (OBSOLETE) 1
033 172-2976 Plug protector (OBSOLETE) 1
034 172-2972 Read manual label (OBSOLETE) 1
