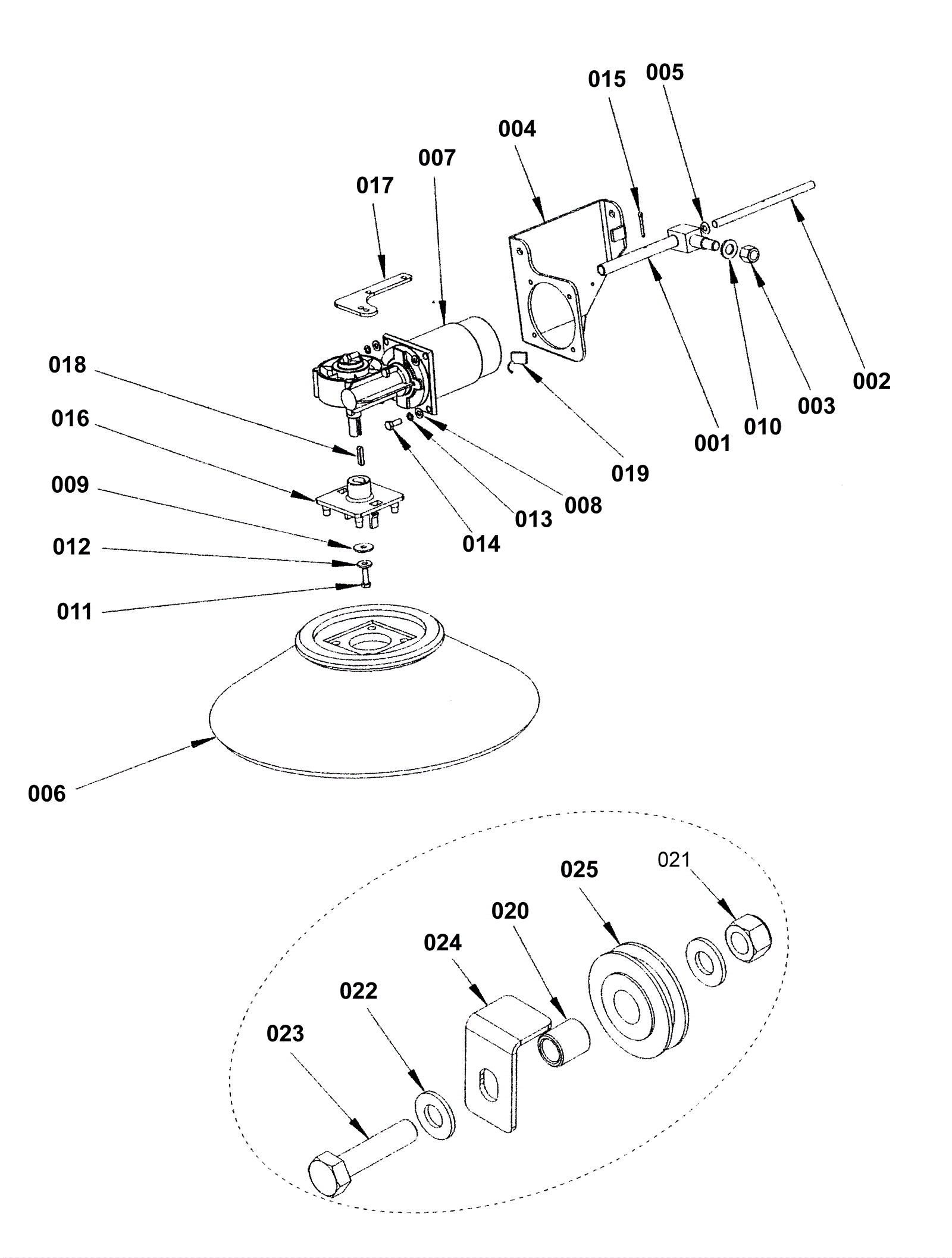

Terra 4300B Left Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
001 272-8294 Side broom pin $134.98 1 usually ships 1-5 days
002 272-8295 Side broom pin $27.64 1 usually ships 1-5 days
003 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 1 Nut M12 self lock hex head usually ships 17-28 days
004 272-8304 Support left side broom $169.11 1 usually ships 1-5 days
005 272-8297 Spring 6' 1/5 x 15 x 1/2 $12.31 1 usually ships 1-5 days
006a 172-3670 Steel mix side broom $222.53 1 ships same day
006b 172-3671 Natural fiber side broom $183.90 1 usually ships 17-28 days
007 272-8421 Reduction motor 60 watt (OBSOLETE) $552.42 1 usually ships 1-5 days
008 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 4 Washer 6 x 12 1/2 flat usually ships 17-28 days
009 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 1 Washer 6 x 24 flat usually ships 17-28 days
010 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 1 Washer 12 x 24 flat usually ships 17-28 days
011 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 1 Screw M6 x 20 mm hex head usually ships 17-28 days
012 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 1 Washer 6 x 18 flat usually ships 17-28 days
013 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 4 Washer toothed usually ships 17-28 days
014 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
015 272-8299 Split pin 3 x 20 $10.85 1 usually ships 1-5 days
016 272-8110 Broom holding flange $160.86 1 ships same day
017 272-9156 Flange $44.58 1 usually ships 1-5 days
018 172-3730 Square keyway $49.63 1 ships same day
019 472-1391 CARBON BRUSH 2 PCS SET $61.49 2 usually ships 17-28 days
020 272-8420 Spacer 8' 1/5 x 12 x 13' 1/2 $9.26 1 usually ships 1-5 days
021 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 1 Nut M8 self lock low hex head usually ships 17-28 days
022 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 2 Washer 8 x 17 flat usually ships 17-28 days
023 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
024 272-8302 Bracket cable fixing (OBSOLETE) $7.30 1 usually ships 1-5 days
025 272-8303 Pulley $75.67 1 usually ships 1-5 days
026 272-8108 Left side broom assembly hardware kit (OBSOLETE) $7.59 1 includes 003, 008 thru 013, 021 thru 022 usually ships 17-28 days
