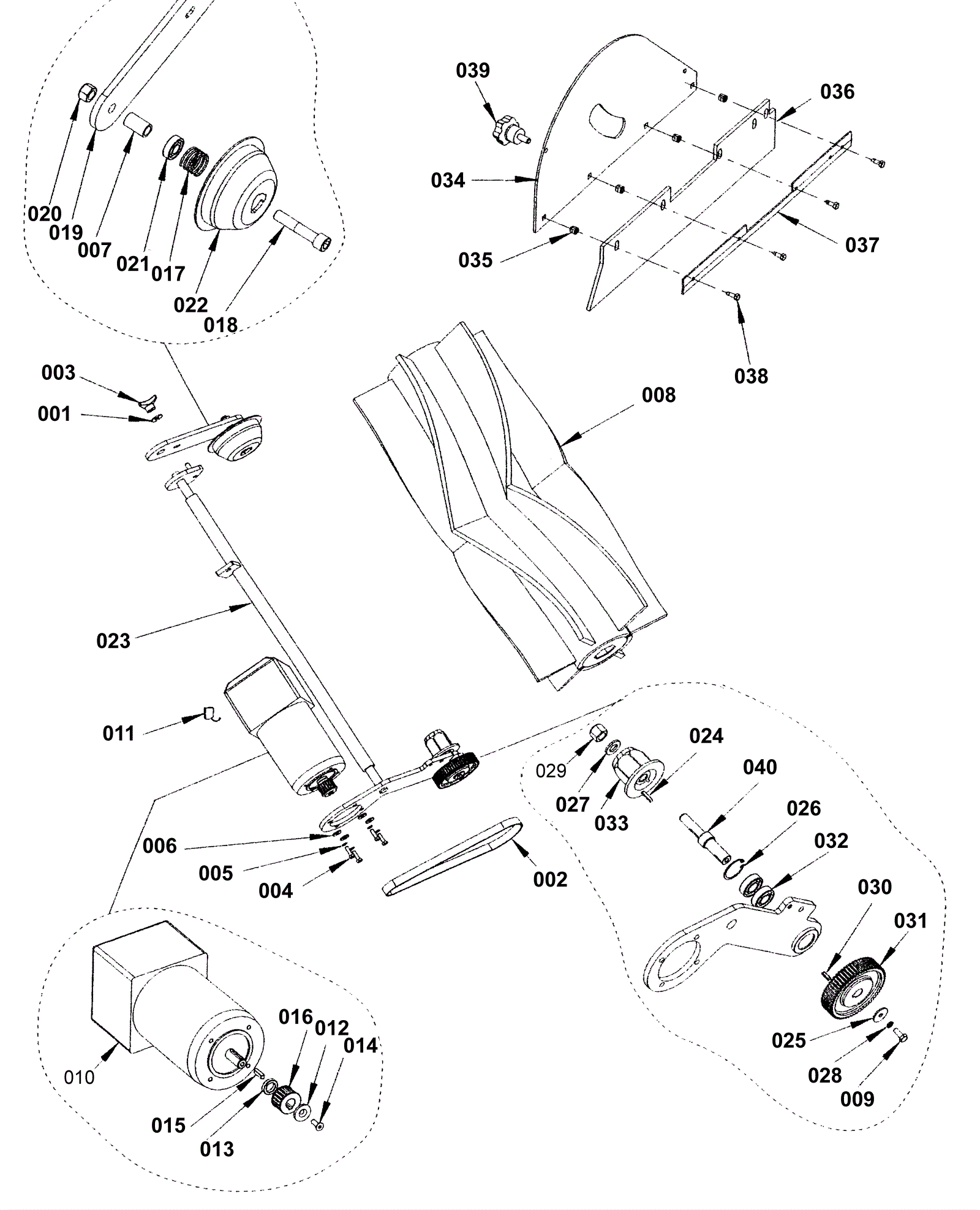

Terra 4300B Main Broom Assembly

#PartDescriptionPriceReqNotesAvailability
001 272-8115 Main broom assembly hardware kit $244.24 1 Washer 8 x 24 flat usually ships 16-41 days
002 272-8283 Belt $131.91 1 usually ships 16-41 days
003 172-3664 Knob M8 $12.18 1 usually ships 16-41 days
004 272-8115 Main broom assembly hardware kit $244.24 4 Screw M6 x 20 hex head usually ships 16-41 days
005 272-8115 Main broom assembly hardware kit $244.24 4 Washer 6 split usually ships 16-41 days
006 272-8115 Main broom assembly hardware kit $244.24 4 Washer 6 x 18 flat usually ships 16-41 days
007 272-8116 Spacer 12 x 17 x 28 (OBSOELTE) $33.36 1 usually ships 16-41 days
008a 272-8284 Main broom 300 x 700 standard $257.94 1 ships same day
008b 272-8159 Main broom $284.84 1 usually ships 16-41 days
008c 272-8285 Main broom natural fiber $441.08 1 usually ships 16-41 days
009 272-8115 Main broom assembly hardware kit $244.24 1 Screw M6 x 16 hex head usually ships 16-41 days
010 272-8154 Main broom motor assembly $2,101.01 1 usually ships 1-5 days
011 272-8286 Carbon brush kit (pkg of 4) $176.61 4 usually ships 16-41 days
012 272-0778 Spacer 6 1/2 x 25 x 2 1/2 $11.66 1 usually ships 16-41 days
013 272-8287 Spacer 14 X 23 X 5 $12.00 1 usually ships 1-5 days
014 272-8115 Main broom assembly hardware kit $244.24 1 Screw M6 x 16 usually ships 16-41 days
015 181-0942 Square keyway $43.93 1 usually ships 16-41 days
016 272-8288 Pulley 205 M 156 F high torque drive $167.38 1 usually ships 16-41 days
017 172-3800 Spring $16.27 1 usually ships 16-41 days
018 272-8115 Main broom assembly hardware kit $244.24 1 Screw M12 x 60 mm cylindrical head usually ships 16-41 days
019 272-8289 Main broom lever $49.18 1 ships same day
020 272-8115 Main broom assembly hardware kit $244.24 1 Nut M12 self lock low hex head usually ships 16-41 days
021 172-3799 Ball bearing $20.37 1 usually ships 16-41 days
022 172-3798 Hub $58.39 1 usually ships 16-41 days
023 272-8290 Main broom shaft $671.48 1 usually ships 1-5 days
024 272-8153 Key 4 x 4 x 20 $10.90 1 usually ships 1-5 days
025 272-8115 Main broom assembly hardware kit $244.24 1 Washer 6 x 24 flat usually ships 16-41 days
026 272-8113 Retaining ring (OBSOLETE) $9.80 1 usually ships 16-41 days
027 272-8115 Main broom assembly hardware kit $244.24 2 Washer 12 x 24 flat usually ships 16-41 days
028 272-8115 Main broom assembly hardware kit $244.24 1 Washer toothed 3/5 usually ships 16-41 days
029 272-8115 Main broom assembly hardware kit $244.24 1 Nut M12 self lock hex head usually ships 16-41 days
030 272-8419 Key 4 x 4 x 15 $10.90 1 usually ships 1-5 days
031 272-8291 Pulley $348.48 1 usually ships 16-41 days
032 272-8114 Ball bearing $16.27 2 usually ships 16-41 days
033 272-8111 Main broom hub $13.70 1 usually ships 16-41 days
034 272-8292 Main broom hatch $89.90 1 usually ships 16-41 days
035 272-8115 Main broom assembly hardware kit $244.24 4 Screw nut usually ships 16-41 days
036 272-8262 Side skirt $50.59 1 usually ships 16-41 days
037 272-8263 Side skirt plate $20.37 1 usually ships 1-5 days
038 272-8115 Main broom assembly hardware kit $244.24 4 Screw 4 4/5 x 16 hex head usually ships 16-41 days
039 472-1227 KNOB LOBED M6X15 PKD $23.05 2 usually ships 16-41 days
040 272-8112 Main broom pin $134.60 1 usually ships 16-41 days
041 272-8115 Main broom assembly hardware kit $244.24 1 includes 001, 004 thru 006, 009, 014, 018, 020, 025, 027 thru 029, 035 and 038 usually ships 16-41 days
