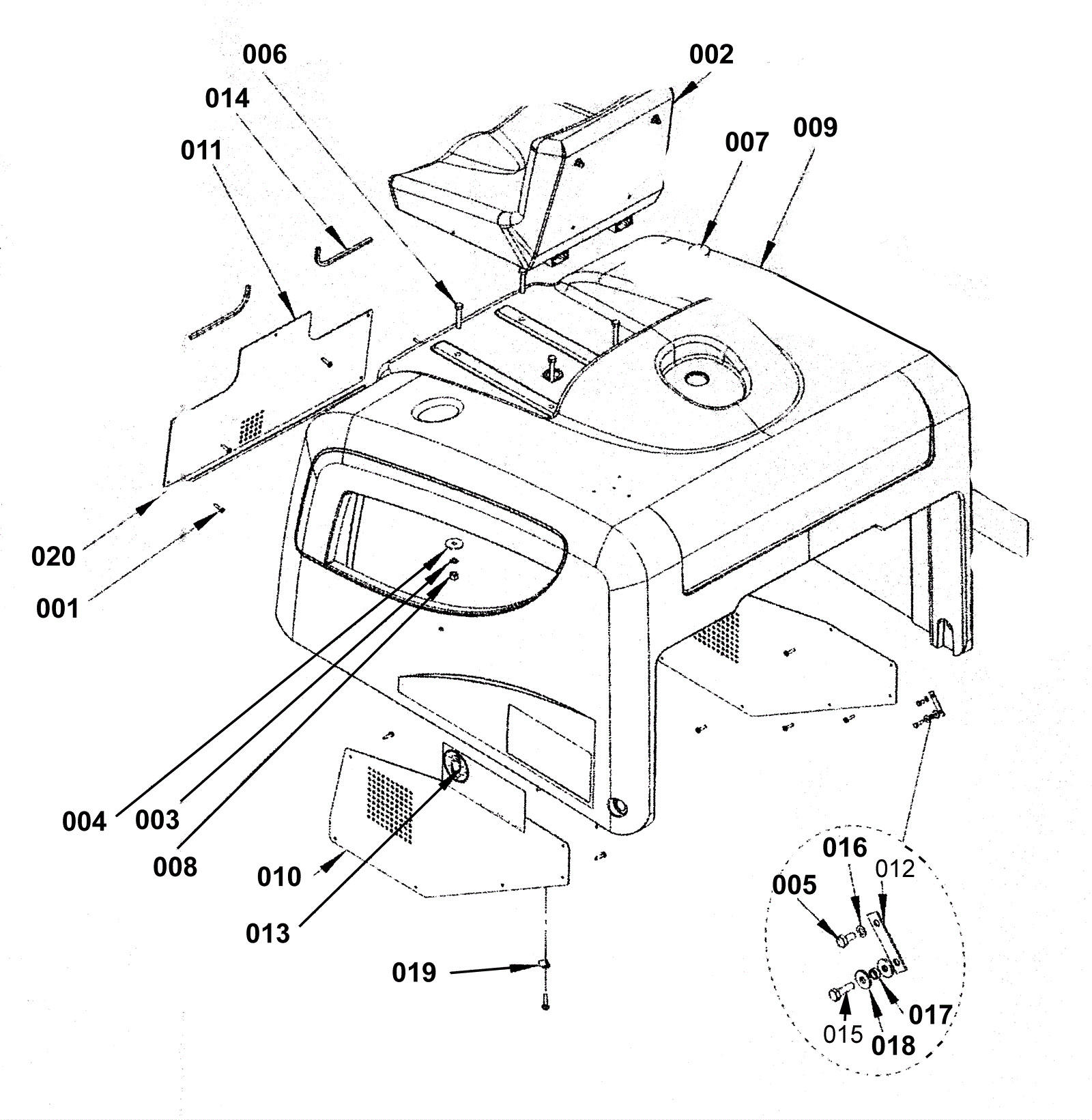

Terra 4300B Bonnet Assembly

#PartDescriptionPriceReqNotesAvailability
001 272-8392 Bonnet assembly hardware kit $222.53 19 Screw 4' 3/5 x 19' 1/5 pan head usually ships 1-5 days
002a 272-8275 Seat with microswitch $842.34 1 usually ships 17-28 days
002b 272-8418 Microswitch $87.54 1 usually ships 17-28 days
003 272-8392 Bonnet assembly hardware kit $222.53 4 Washer 8 split usually ships 1-5 days
004 272-8392 Bonnet assembly hardware kit $222.53 4 Washer 8 x 32 flat usually ships 1-5 days
005 272-8392 Bonnet assembly hardware kit $222.53 2 Screw M6 x 12 mm hex head usually ships 1-5 days
006 272-8392 Bonnet assembly hardware kit $222.53 4 Screw M8 x 50 mm hex head usually ships 1-5 days
007 272-8276 Cap 38.1 $12.31 1 usually ships 1-5 days
008 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 4 ships same day
009 272-8277 Seat holder bonnet $1,072.25 1 usually ships 17-28 days
010 272-8278 Grate side (OBSOLETE) $86.79 2 usually ships 1-5 days
011 272-8279 Grate front (OBSOLETE) $54.34 1 usually ships 1-5 days
012 272-8415 Plate cable fixing (OBSOLETE) $7.59 2 usually ships 1-5 days
013 272-8280 Decals kit $337.39 1 usually ships 1-5 days
014 272-8281 Bonnet gaskets kit (OBSOLETE) $7.59 1 usually ships 1-5 days
015 272-8392 Bonnet assembly hardware kit $222.53 2 Screw M6 x 20 mm hex head usually ships 1-5 days
016 272-8392 Bonnet assembly hardware kit $222.53 2 Washer 6 split usually ships 1-5 days
017 172-3668 Spacer 6 1/2 X 10 X 4 1/2 $9.26 2 usually ships 17-28 days
018 272-8392 Bonnet assembly hardware kit $222.53 4 Washer 6 x 18 flat usually ships 1-5 days
019 272-8416 P clamp $12.31 6 usually ships 17-28 days
020 272-8282 Gasket 500 mm (OBSOLETE) $7.59 1 usually ships 1-5 days
021 272-8417 Harness bonnet (OBSOLETE) $20.20 1 usually ships 1-5 days
022 272-8418 Microswitch $87.54 1 usually ships 17-28 days
023 272-8392 Bonnet assembly hardware kit $222.53 1 includes 001, 003 thru 006, 015, 016 and 018 usually ships 1-5 days
