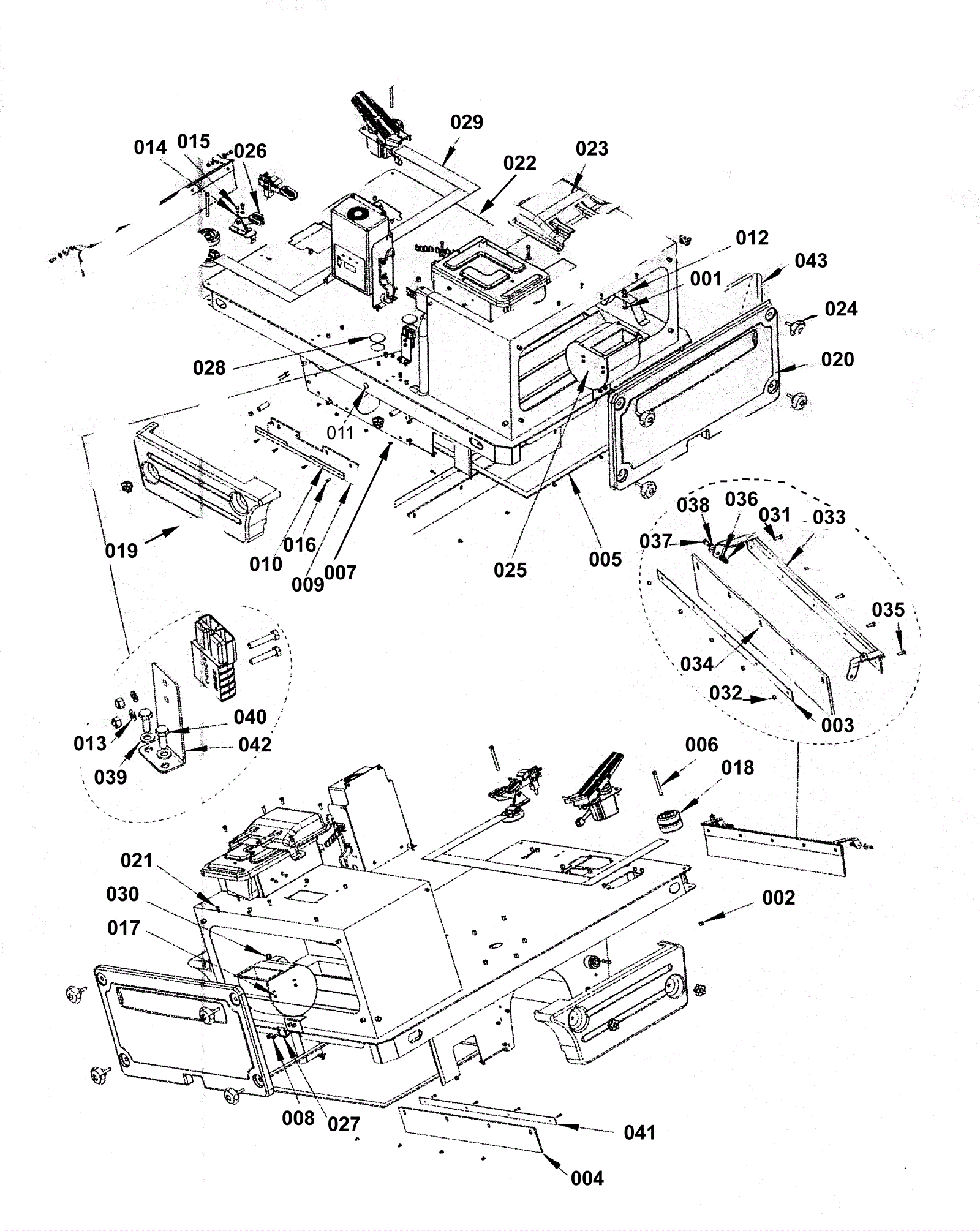

Terra 4300B Side Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-9078 Screw M8 x 70mm hex head $1.27 2 usually ships 1-5 days
003 272-8260 Front skirt plate $24.47 4 usually ships 1-5 days
004 272-8261 Rear skirt $95.16 1 usually ships 1-5 days
005 272-8407 Waste container gasket $70.22 1 usually ships 1-5 days
006 999-9079 Screw M8 x 80mm hex head stainless steel $4.41 2 ships same day
007 172-3653 Main screw (OBSOLETE) $5.40 8 usually ships 1-5 days
008 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 6 ships same day
009 272-8262 Side skirt $50.59 1 usually ships 16-41 days
010 272-8263 Side skirt plate $20.37 1 usually ships 1-5 days
011 272-8408 Cap $10.90 1 usually ships 1-5 days
012 999-1267 Washer M8 flat zinc $0.99 4 ships same day
013 999-9100 Washer M5 flat stainless steel $5.83 4 ships same day
014 999-0051 Washer #6 medium split lock $0.99 2 ships same day
015 172-4823 Screw M6 x 16mm hex head $16.27 2 usually ships 16-41 days
016 272-8409 Screw 4 4/5 X 16 mm hex head (OBSOLETE) Call for price 8 usually ships 1-5 days
017 272-8410 Nut M8 self lock hex head (OBSOLETE) Call for price 4 usually ships 1-5 days
018 272-8152 Bumper roller $12.18 4 usually ships 1-5 days
019 272-8264 Hatch left $129.36 1 usually ships 1-5 days
020 272-8160 Filter cover $257.94 1 usually ships 1-5 days
021 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 4 ships same day
022 272-8411 Chassis (OBSOLETE) Call for price 1 usually ships 1-5 days
023 272-8265 Air deflector (OBSOLETE) $37.44 1 usually ships 1-5 days
024 272-8266 Knob M8 X 40 mm $10.90 4 ships same day
025 272-8267 Vacuum motor kit (OBSOLETE) $305.50 1 usually ships 1-5 days
027 272-8268 Plate $23.05 1 usually ships 1-5 days
028 272-8412 Cap 40 2/5 (OBSOLETE) Call for price 2 usually ships 16-41 days
029 272-8413 Antislip kit (OBSOLETE) Call for price 1 usually ships 1-5 days
030 272-8269 Nut M8 (OBSOLETE) $5.72 4 usually ships 1-5 days
031 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
032 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 5 ships same day
033 272-8270 Skirt raising device (OBSOLETE) $101.42 1 usually ships 1-5 days
034 272-8271 Front skirt (OBSOLETE) $76.40 1 usually ships 16-41 days
035 272-8272 Screw M5 X 15 mm hex head (OBSOLETE) $5.72 5 usually ships 1-5 days
036 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) $6.90 1 usually ships 1-5 days
037 272-8256 Screw M6 X 16 mm cylindrical head (OBSOLETE) $5.72 1 usually ships 16-41 days
038 272-0785 Washer 6 x 16 flat $8.50 1 usually ships 1-5 days
039 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) $6.90 2 usually ships 1-5 days
040 172-4823 Screw M6 x 16mm hex head $16.27 2 usually ships 16-41 days
041 272-8273 Rear skirt plate (OBSOLETE) $13.30 1 usually ships 1-5 days
042 272-8414 Bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
043 181-2002 Recovery tank lid gasket $48.67 1 usually ships 16-41 days
N/S 272-8274 Non marking skirts kit $183.15 1 usually ships 1-5 days
