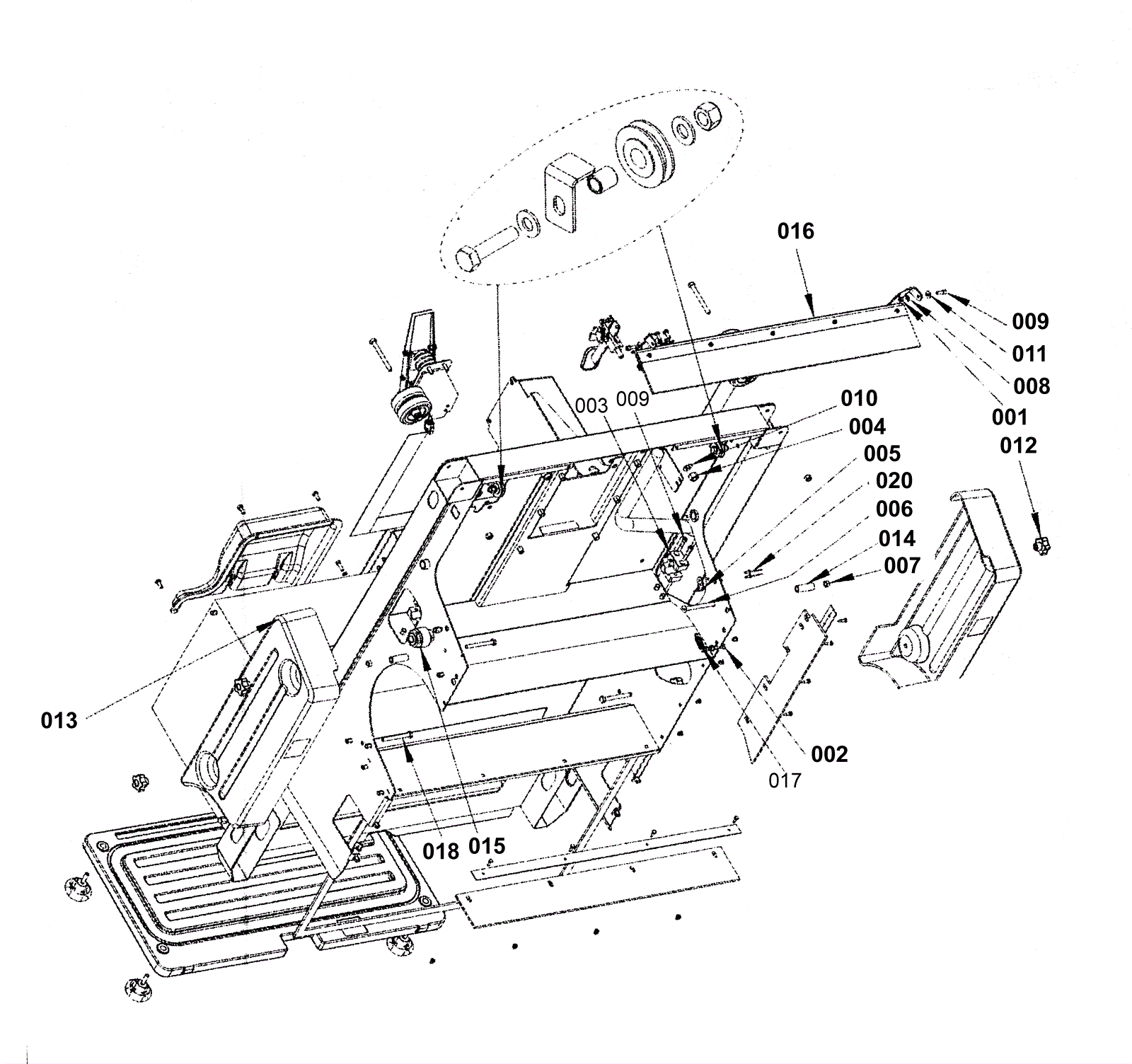

Terra 4300B Lower Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
002 272-8452 Screw M6 X 25 mm (OBSOLETE) Call for price 1 usually ships 1-5 days
003 272-8253 Collar pipe fixing $19.98 2 usually ships 1-5 days
004 272-8254 Nut M10 self lock hex head $10.71 2 usually ships 1-5 days
005 272-8255 Bracket (OBSOLETE) $29.26 1 usually ships 17-28 days
006 999-9079 Screw M8 x 80mm hex head stainless steel $4.41 1 ships same day
007 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 4 ships same day
008 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) $7.59 5 usually ships 1-5 days
009 272-8256 Screw M6 X 16 mm cylindrical head (OBSOLETE) $6.29 1 usually ships 17-28 days
010 999-1262 Washer M10 flat $1.47 1 ships same day
011 272-0785 Washer 6 x 16 flat $9.35 2 usually ships 1-5 days
012 572-3784 KNOB M8 PKD $14.82 4 usually ships 17-28 days
013 272-8239 Right hatch $143.09 1 usually ships 1-5 days
014 272-8404 Spacer 9 X 15 X 42 1/5 $15.48 4 usually ships 1-5 days
015 272-8257 Buzzer $108.94 1 usually ships 1-5 days
017 272-8258 Spring $12.31 1 usually ships 1-5 days
018 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel $3.83 3 ships same day
019 272-8405 Screw M6 X 40 mm cylindrical head $12.31 4 usually ships 1-5 days
020 272-8401 Electrical assemblies hardware kit $206.91 2 usually ships 1-5 days
