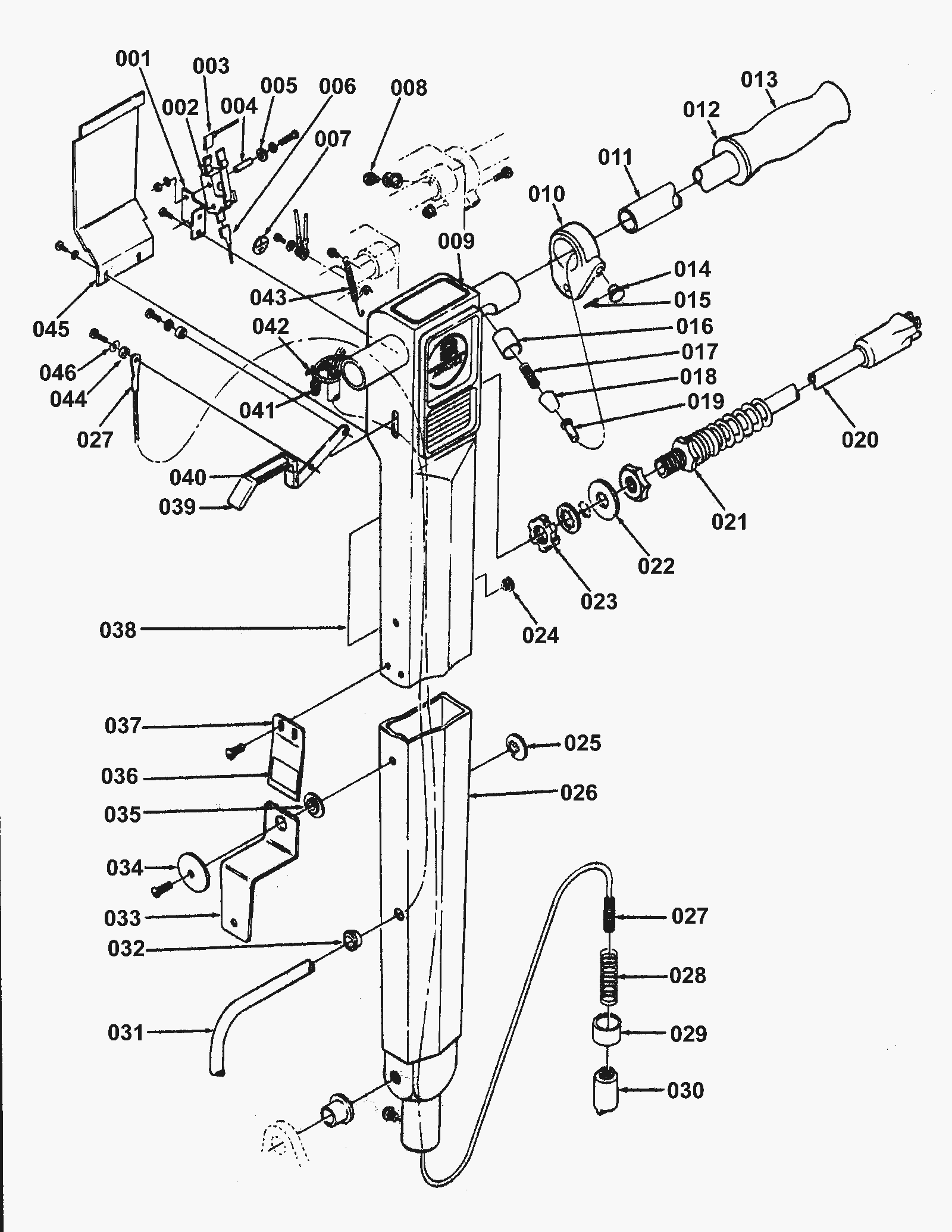

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-4507
|
Bracket |
1 |
|
|
002 |
172-4628
|
Snap switch (OBSOLETE) (SEE NOTE) |
1 |
|
|
002 |
172-0270
|
Snap switch (OBSOLETE) |
1 |
|
|
003 |
172-4509
|
Insulator flag |
1 |
|
|
004 |
172-2869
|
Sleeve (OBSOLETE) |
2 |
|
|
005 |
272-1479
|
Washer fiber |
2 |
|
|
006 |
172-4510
|
Insulator flag (OBSOLETE) |
1 |
|
|
007 |
172-5024
|
Ground symbol decal |
1 |
|
|
008 |
172-4505
|
Screw |
1 |
|
|
009 |
172-5023
|
Warning decal (OBSOLETE) |
1 |
|
|
010 |
N/A
|
Not available |
1 |
|
|
010 |
172-4524
|
Collar assembly |
1 |
|
|
011 |
N/A
|
Not available |
1 |
|
|
011 |
172-4531
|
Handle tube (silver) |
1 |
|
|
012 |
N/A
|
Not available |
2 |
(rubber washer) |
|
013a |
164-0304
|
Handle grip |
2 |
|
|
013b |
991-8571
|
Handle grip |
2 |
(NON-OEM) |
|
014 |
172-4523
|
Saftey lock assembly (OBSOLETE) |
1 |
|
|
015 |
172-4527
|
Spring pin |
1 |
|
|
016 |
172-4529
|
Bushing |
1 |
|
|
017 |
172-4632
|
Spring |
1 |
|
|
018 |
172-3031
|
Plunger |
1 |
|
|
019 |
172-4630
|
Pin |
1 |
|
|
020 |
172-3558
|
14/2 cord set 50 ft (OBSOLETE) |
1 |
|
|
020 |
N/A
|
Not available |
1 |
(230v cordset) |
|
020 |
172-4533
|
14/3 power cord 50 foot |
1 |
|
|
021 |
172-4635
|
Brass insert (OBSOLETE) |
1 |
|
|
021 |
172-4534
|
Strain relief |
1 |
|
|
021 |
174-3053
|
Strain relief |
1 |
|
|
022 |
172-4535
|
Washer flat steel |
1 |
|
|
023 |
172-4536
|
Nut 1/2-14 conduit lock |
1 |
|
|
023 |
N/A
|
Not available |
1 |
|
|
024 |
172-4518
|
Button plug |
4 |
|
|
025 |
172-4516
|
Plug button .656 (OBSOLETE) |
1 |
|
|
026 |
172-3034
|
Handle (OBSOLETE) |
1 |
|
|
026 |
172-3035
|
Handle assembly 115V (OBSOLETE) |
1 |
|
|
026 |
172-3036
|
Handle assembly 230V (OBSOLETE) |
1 |
|
|
026 |
272-0046
|
Handle assembly 100v (OBSOLETE) |
1 |
|
|
027 |
172-4504
|
Wire rope assembly |
1 |
|
|
028 |
172-4521
|
Spring com .75 x 1.68 |
1 |
|
|
029 |
172-4636
|
Bushing |
1 |
|
|
030 |
172-4522
|
Plunger |
1 |
|
|
031 |
N/A
|
Not available |
1 |
|
|
031 |
172-3037
|
Cord assembly 115V (OBSOLETE) |
1 |
|
|
032 |
172-4517
|
Strain relief (OBSOLETE) |
1 |
|
|
033 |
172-4638
|
Cord hook assembly |
1 |
|
|
034 |
272-0103
|
Washer 7/32 flat |
1 |
|
|
035 |
172-2836
|
Bushing (OBSOLETE) |
1 |
|
|
036 |
N/A
|
Not available |
1 |
(Cord hook decal) |
|
037 |
272-0101
|
Spring (OBSOLETE) |
1 |
|
|
038 |
172-5020
|
Warning decal (OBSOLETE) |
1 |
|
|
039 |
N/A
|
Not available |
1 |
|
|
040 |
172-5019
|
Handle decal |
1 |
|
|
041 |
172-4513
|
Wire connector |
1 |
|
|
042 |
178-0188
|
Tube (OBSOLETE) |
1 |
|
|
043 |
172-4506
|
Extension spring (OBSOLETE) |
1 |
|
|
044 |
172-4504
|
Wire rope assembly |
2 |
|
|
045 |
172-4511
|
Cover |
1 |
|
|
046 |
172-4512
|
Washer 17/64 x 1/2 bowed |
1 |
|
|
047 |
172-4094
|
Terminal block |
1 |
|
|
