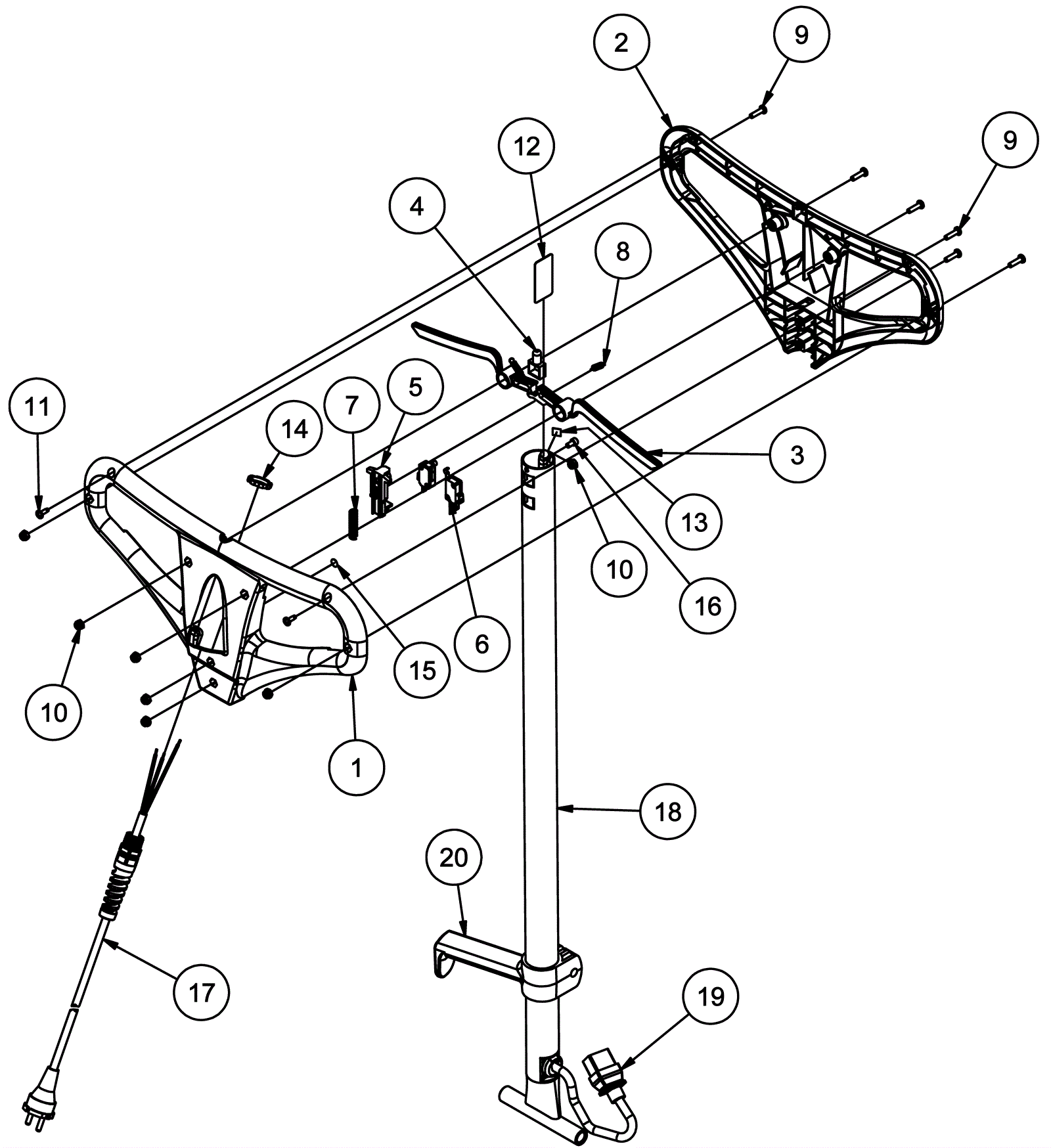

Handle Assembly

#PartDescription ReqNotesAvailability
1 170-1514 Rear handle 1
2 270-0709 Front handle 1
3 170-5815 Switch lever 2
4 170-5816 Interlock button 1
5 170-5819 Main interlock 1
6 170-5571 Switch 2
7 170-5820 Compression spring 1
8 170-5817 Extension spring 2
9 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 6
10 999-0460 Nut 10-32 hex 7
11 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 2
12 170-1538 Cord retainer 1
13 170-6011 Ground symbol decal 1
14 170-2413 Nut lock 1
15 154-5194 Decal 1
16 999-1276 Screw 10-32 x 3/8 hex head stainless steel 1
17 154-5195 Power cord 1
18 154-5196 Handle tube weldment 1
19 154-5193 Interconnect export cord 1
20 170-1517 Handle clamp 1
