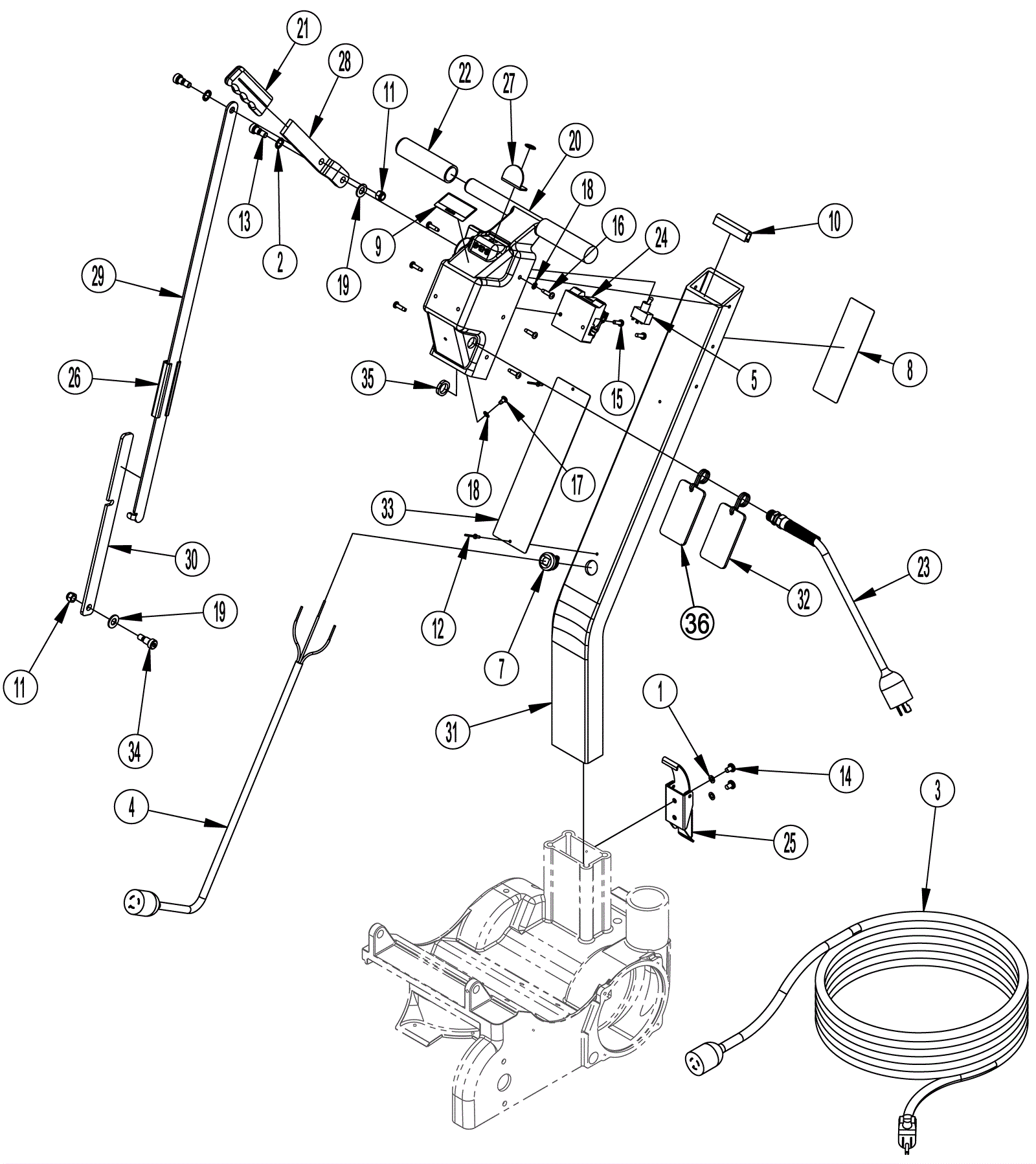

EZ-8 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-6926 Lock helical spring washer 1/4 medium $12.31 2 usually ships 12-18 days
2 372-1734 Wave washer $12.31 2 usually ships 12-18 days
3 154-5171 12/3 powercord 40 foot $308.01 1 (07012A) usually ships 16-22 days
4a 372-1736 Cord interconnect with L6-15R $66.56 1 (07012A) usually ships 16-22 days
4b 270-8059 Interconnect cord $49.42 1 (07058A and 07060A) usually ships 1-5 days
5 270-8057 Control switch $73.22 1 usually ships 16-22 days
7 154-3948 7/8 inch strain relief bushing $1.21 1 usually ships 16-22 days
8 154-5170 Warning decal $2.18 1 (07012A and 07058A) usually ships 16-22 days
9 270-8053 Caution decal $4.11 1 usually ships 1-5 days
10 370-6803 TRIMVINYLBLACK400 FT. SPOOL $7.87 3 inches usually ships 16-22 days
11 154-3956 Nut 5/16 inch lock $1.21 2 usually ships 16-22 days
12 375-7487 Rivet 1/8 x 5/16 inch (OBSOLETE) $10.52 2 usually ships 12-18 days
13 170-1411 Shoulder screw $2.66 2 usually ships 16-22 days
14 170-6635 Screw 1/2-20 x 3/8 pan $1.21 2 usually ships 1-5 days
15 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
16 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 6 ships same day
17 270-8038 Screw 10-24 x 3/8 self tapping pan head phillips $9.27 1 usually ships 12-18 days
18 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
19 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
20 372-1743 Housing control $335.04 1 usually ships 16-22 days
21 372-1744 Lever $9.89 1 usually ships 16-22 days
22 372-1745 Handle grip $9.89 2 usually ships 16-22 days
23a 372-1746 Cord $99.03 1 (07012A) usually ships 16-22 days
23b 372-1747 40 foot cord set $337.25 1 (07058A) usually ships 16-22 days
23c 372-1748 40 foot cable assembly $434.28 1 (07060A) usually ships 16-22 days
24a 270-8056 Contactor $201.30 1 (07012A and 07058A) usually ships 16-22 days
24b 372-1749 Contactor $188.19 1 (07060A) usually ships 16-22 days
25 372-1750 Latch draw $226.72 1 usually ships 16-22 days
26 372-1751 Control link $32.27 1 usually ships 16-22 days
27 372-1752 Switch guard $16.94 1 usually ships 16-22 days
28 372-1753 Control lever (OBSOLETE) Call for price 1 usually ships 12-18 days
29 372-1754 Control link $90.37 1 usually ships 16-22 days
30 372-1755 Control adjuster link $25.41 1 usually ships 16-22 days
31 372-1756 Handle $262.63 1 usually ships 16-22 days
32 270-0652 Warning decal $4.60 1 (07012A and 07058A) usually ships 1-5 days
33 372-1757 Plate $10.89 1 usually ships 16-22 days
34 270-0824 Bolt 3/8 x 1/2 $2.90 1 usually ships 1-5 days
35 372-1759 Conduit lock nut $11.99 1 usually ships 12-18 days
36 372-0068 Decal $4.60 1 usually ships 16-22 days
N/S 372-1760 Wire assembly $11.10 1 usually ships 16-22 days
