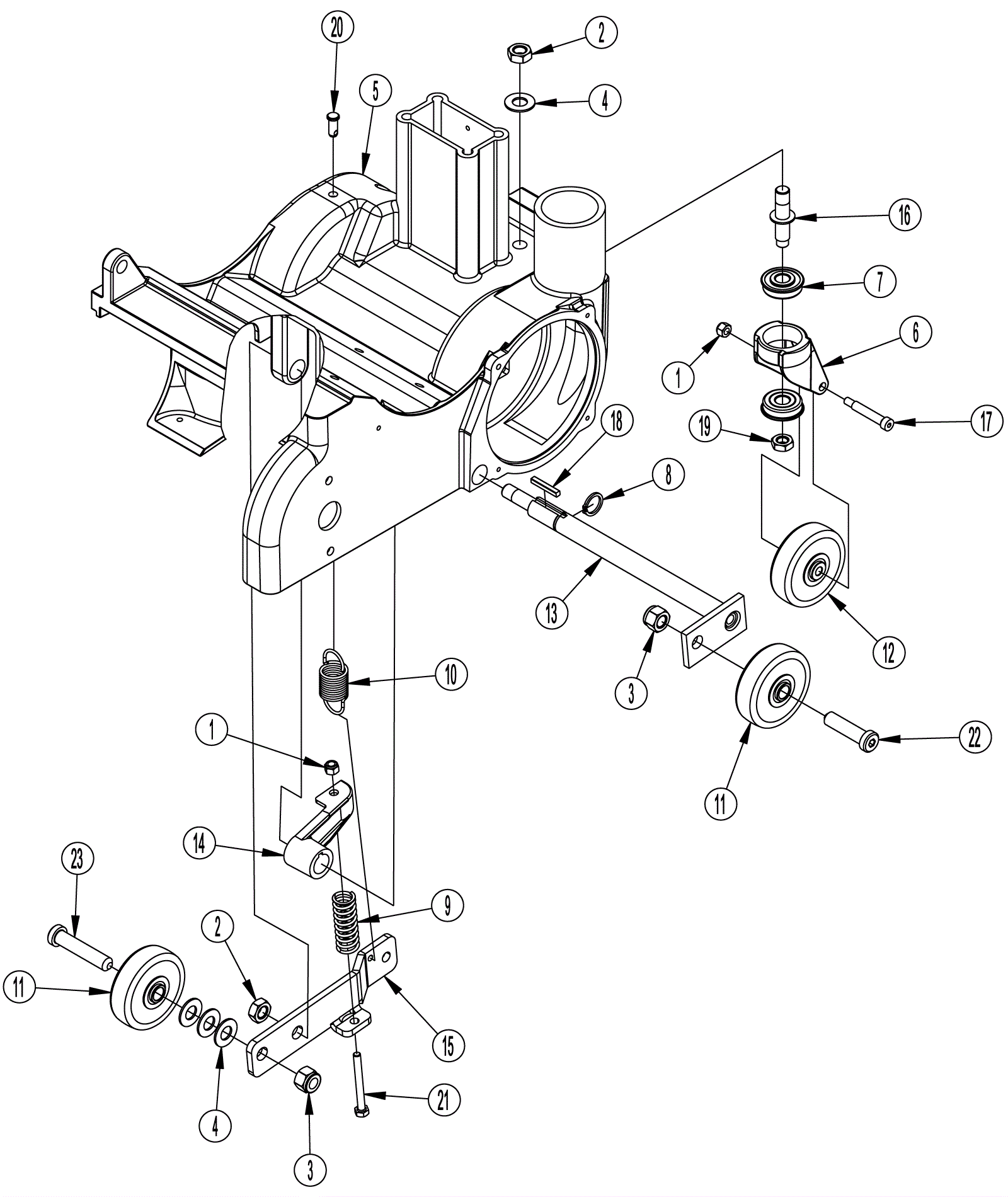

EZ-8 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-7514 Nut 1/4-20 stop $1.87 2 usually ships 1-5 days
2 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
3 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
4 170-5602 Washer $8.07 4 ships same day
5 270-0829 Main frame $1,600.32 1 usually ships 1-5 days
6 270-8069 Caster yoke $103.11 1 usually ships 1-5 days
7 270-8068 Caster bearing $17.36 2 usually ships 4-15 days
8 170-1324 Snap ring $9.58 1 usually ships 4-15 days
9 270-0822 Leveling spring $7.29 1 usually ships 1-5 days
10 270-0823 Drum pressure spring $79.38 1 usually ships 4-15 days
11 270-0814 Wheel $70.13 2 usually ships 4-15 days
12 270-8065 Caster wheel $85.36 1 usually ships 4-15 days
13 270-0813 Axle $101.00 1 usually ships 1-5 days
14 270-0818 Level arm $75.43 1 usually ships 1-5 days
15 270-0820 Lifting arm $40.34 1 usually ships 1-5 days
16 270-8067 Caster shaft $20.17 1 usually ships 1-5 days
17 170-6398 Shoulder bolt 5/16 x 1 1/2 $8.80 1 usually ships 1-5 days
18 170-1421 Shaft key $4.18 1 usually ships 4-15 days
19 999-1870 Nut 7/16-14 hex stainless steel $1.45 1 usually ships 1-5 days
20 270-0828 Clevis pin $3.74 1 usually ships 1-5 days
21 999-1187 Bolt 1/4-20 x 2 1/2 hex head stainless steel $2.22 1 ships same day
22 270-0815 Screw 1/2-13 x 2 $18.32 1 usually ships 1-5 days
23 270-0817 Screw 1/2-13 x 2 1/2 $25.96 1 usually ships 1-5 days
