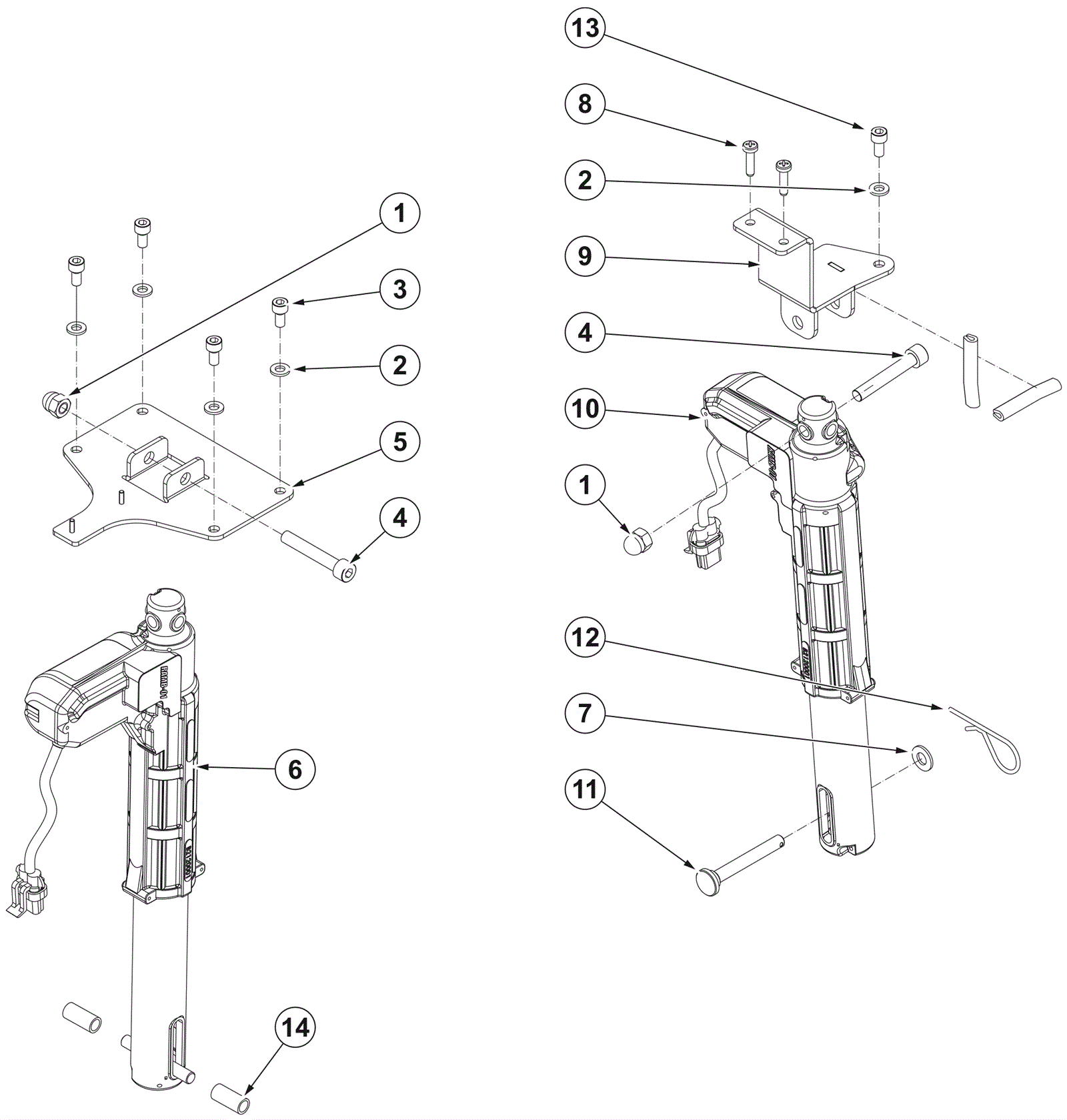

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
Call for price
|
2 |
(M8 nut) (only available with KIT1) |
usually ships 3-26 days |
2 |
999-1261
|
Washer M6 flat stainless steel |
$0.99
|
5 |
(included in KIT1) |
ships same day |
3 |
999-1801
|
Screw M6 X 12mm hex head flange |
$2.79
|
5 |
(included in KIT1) |
ships same day |
4 |
999-1297
|
Screw M8 x 50mm hex head stainless steel |
$2.86
|
2 |
(included in KIT2) |
ships same day |
5 |
572-3587
|
SUPPORT DECK ACTUATOR PKD |
$23.05
|
1 |
|
usually ships 16-41 days |
6 |
572-3591
|
ACTUATOR 24V DC 98MM 16MM |
$325.55
|
1 |
|
usually ships 16-41 days |
7 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
1 |
(included in KIT2) |
ships same day |
8 |
N/A
|
Not available |
Call for price
|
2 |
(screw 5 x 20 cylindrical head) ( only available with KIT1) |
usually ships 3-26 days |
9a |
572-3566
|
SUPPORT SQUEEGEE ACTUATOR PKD |
$33.36
|
1 |
(before SN 3510163404521) |
usually ships 16-41 days |
9b |
572-3703
|
SUPPORT SQG ACTUATOR GALV PKD |
$40.72
|
1 |
(after SN 3510163404520) |
usually ships 16-41 days |
10 |
572-3593
|
ACTUATOR 24V DC STROKE 77.5MM |
$366.27
|
1 |
|
usually ships 16-41 days |
11 |
N/A
|
Not available |
Call for price
|
1 |
(squeegee actuator pin) (only available with KIT2) |
usually ships 3-26 days |
12 |
N/A
|
Not available |
Call for price
|
1 |
(split pin) (only available with KIT2) |
usually ships 3-26 days |
13 |
999-1801
|
Screw M6 X 12mm hex head flange |
$2.79
|
1 |
(included in KIT1) |
ships same day |
14 |
572-3825
|
CAP D.9 PASTIC 10 PCS SET |
$190.31
|
1 |
|
usually ships 16-41 days |
KIT1 |
572-3696
|
HARDWARE ACTUATOR SUPPORT KIT |
$16.27
|
1 |
(includes 2-3, 8, 13) |
usually ships 16-41 days |
KIT2 |
572-3629
|
HARDWARE ACTUATOR KIT |
$23.05
|
1 |
(includes 1, 4, 7, 11-12) |
usually ships 16-41 days |
