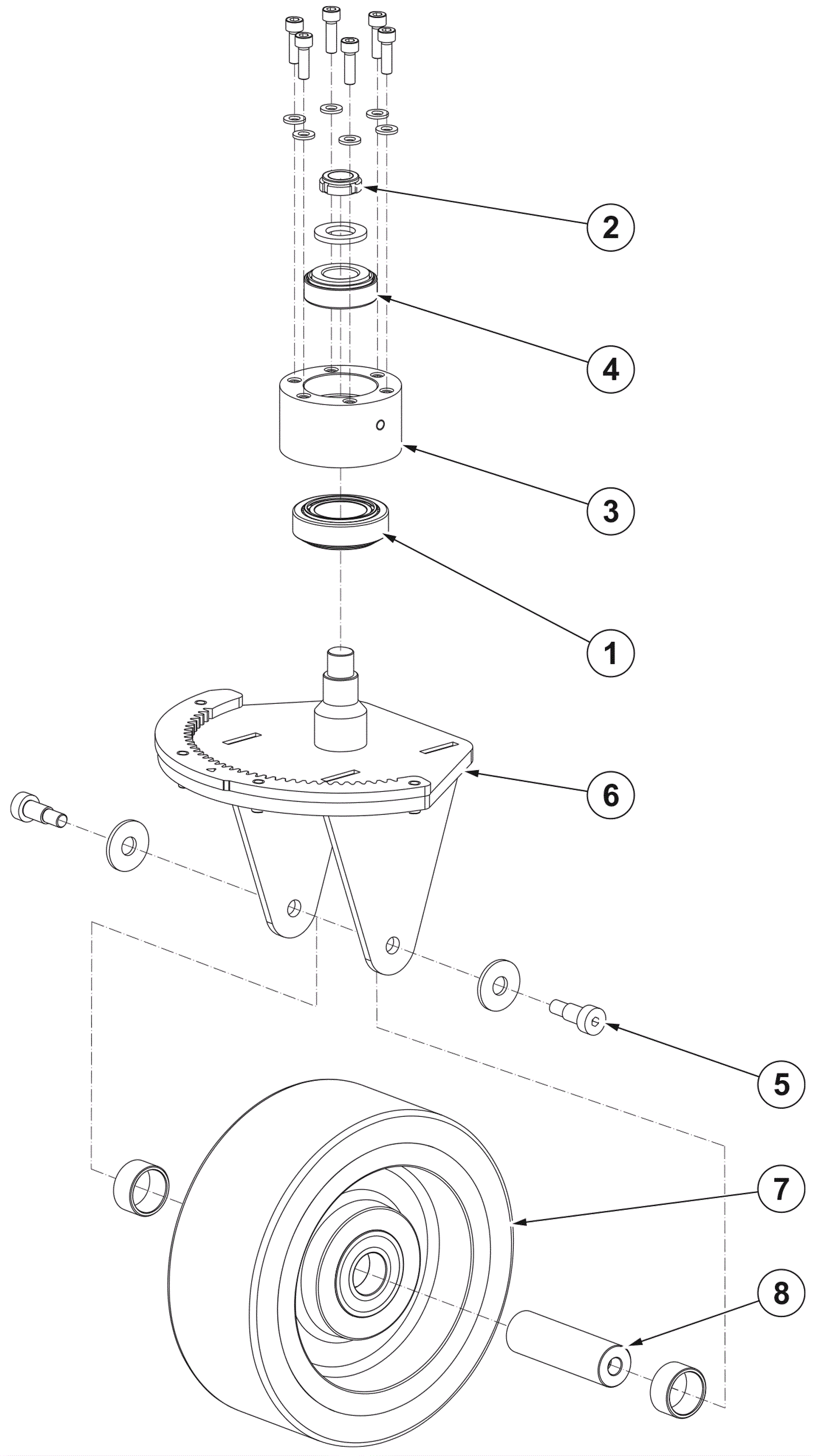

SC2000 Front Wheel System Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-3534 Ball bearing $32.15 1 usually ships 16-41 days
2 272-3536 Ring nut $27.53 1 usually ships 1-5 days
3 272-3537 Ball bearing support $62.38 1 usually ships 16-41 days
4 272-3535 Ball bearing $31.51 1 usually ships 16-41 days
5 572-3616 SCREW 10X16 M8 12.9 10 PCS $36.77 1 usually ships 16-41 days
6 572-3694 SUPPORT FRONT WHEEL ASSMD PKD $169.96 1 usually ships 16-41 days
7 372-3073 Wheel $223.87 1 usually ships 16-41 days
8 572-3564 PIN WHEEL PKD $28.94 1 usually ships 16-41 days
