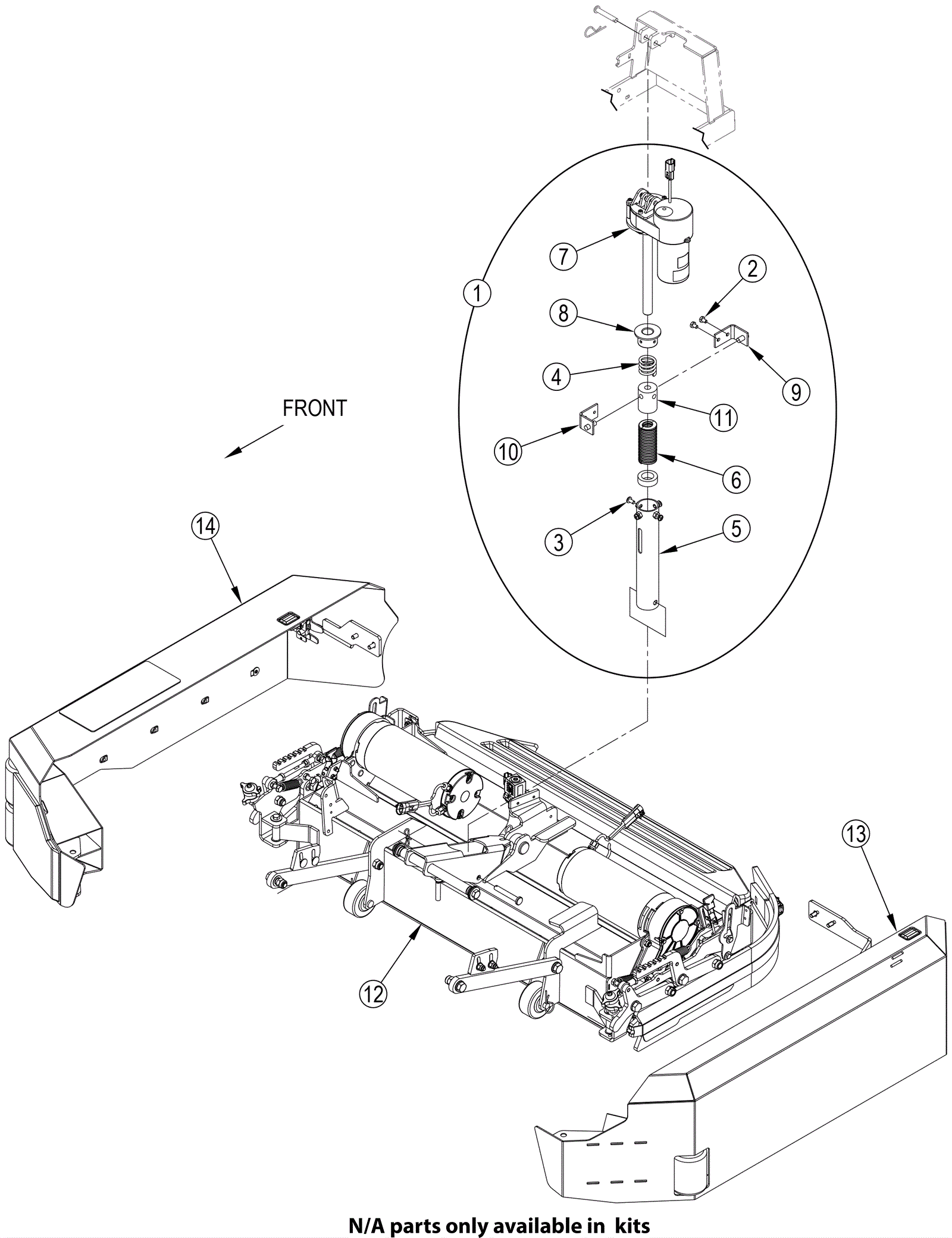

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
Call for price
|
1 |
(complete actuator assembly) (includes 2-11) |
usually ships 3-26 days |
2 |
999-0360
|
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
$0.99
|
2 |
(included in KIT1) |
ships same day |
3 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
$1.03
|
4 |
(included in KIT1) |
ships same day |
4 |
N/A
|
Not available |
Call for price
|
1 |
(compression spring) (only available with KIT1) |
usually ships 3-26 days |
5 |
N/A
|
Not available |
Call for price
|
1 |
(spring housing weldment) (only available with KIT1) |
usually ships 3-26 days |
6 |
N/A
|
Not available |
Call for price
|
1 |
(compression spring) (only available with KIT1) |
usually ships 3-26 days |
7 |
472-5226
|
ACTUATOR ASSEMBLY-HEAVY DUTY |
$327.83
|
1 |
(included in KIT1) |
usually ships 16-41 days |
8 |
N/A
|
Not available |
Call for price
|
1 |
(spring housing guide) (only available with KIT1) |
usually ships 3-26 days |
9 |
N/A
|
Not available |
Call for price
|
1 |
(nut retainer) (only available with KIT1) |
usually ships 3-26 days |
10 |
N/A
|
Not available |
Call for price
|
1 |
(nut retainer) (only available with KIT1) |
usually ships 3-26 days |
11 |
172-8922
|
Plastic drive nut |
$19.45
|
1 |
(included in KIT1) |
usually ships 16-41 days |
12 |
N/A
|
Not available |
Call for price
|
1 |
(cylindrical scrub assembly) |
usually ships 3-26 days |
13 |
N/A
|
Not available |
Call for price
|
1 |
(left hand door assembly) |
usually ships 3-26 days |
14 |
N/A
|
Not available |
Call for price
|
1 |
(right hand door assembly) |
usually ships 3-26 days |
KIT1 |
472-5228
|
SPRING HOUSING KIT-ACTUATOR |
$261.33
|
1 |
(includes 2-11) |
usually ships 16-41 days |
