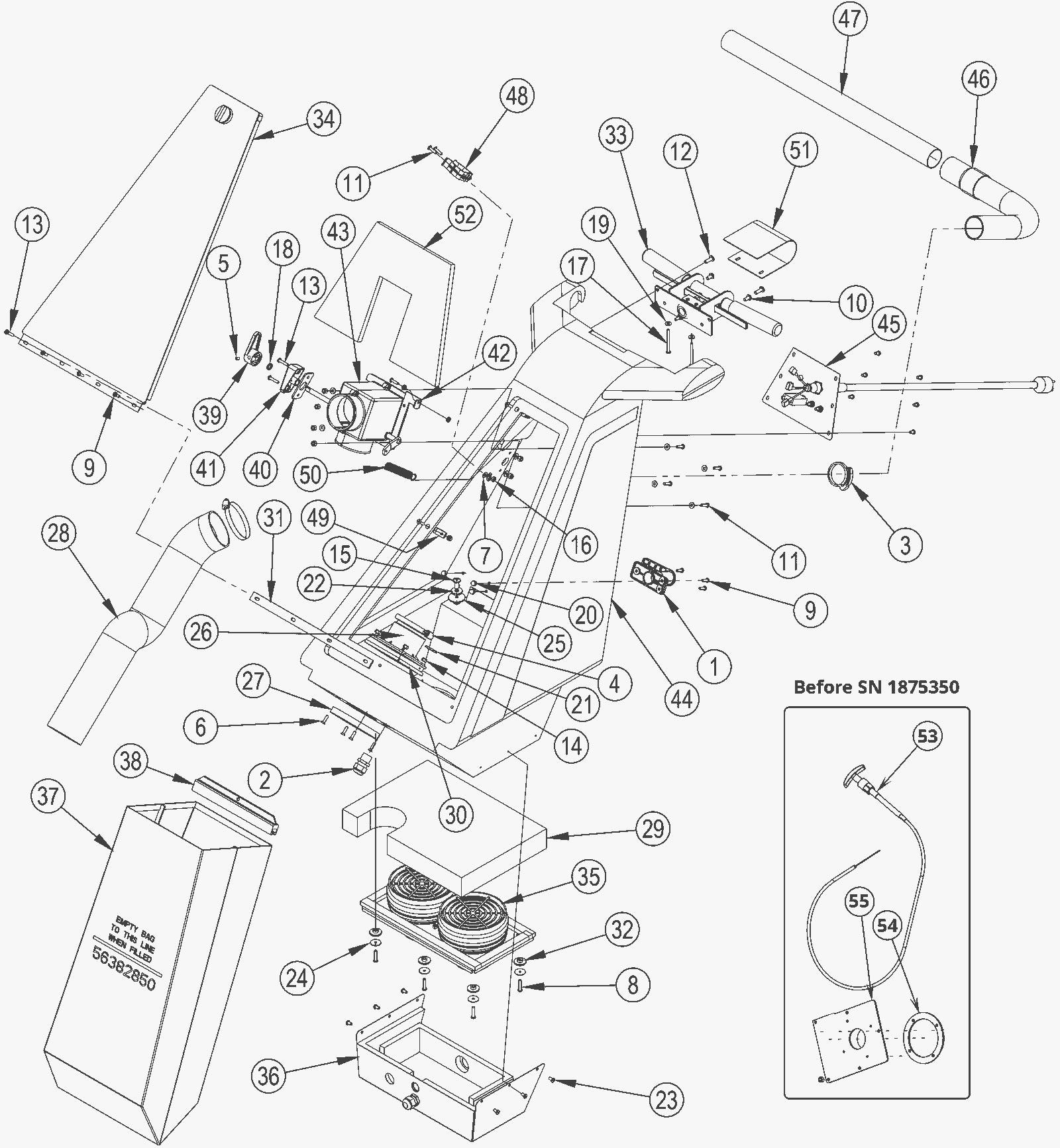

Handle Assembly 1

#PartDescription ReqNotesAvailability
1 172-4638 Cord hook assembly 2
2 172-4018 Strain relief 2
3 272-2872 Hose clamp 1
4 472-7100 CLAMP HOSE SAE 52 E00047 2
5 999-1121 Screw 10-24 x 3/8 set cup point socket black oxide 1 (after SN 1875349)
6 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 6
7 999-1862 Washer #10 flat SAE stainless steel 10 (qty 11 before SN 1875350)
8a 572-4025 Screw 10-14 x 1 pan head phillips plastite 6 (after SN 1875349)
8b 182-0012 Screw 10-14 x .88 phillips pan plastite 6 (before SN 1875350)
9 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 9 (qty 3 before SN 1875350)
10 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2
11 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 6
12 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 2
13 999-0520 Screw 10-24 x 1 pan head phillips stainless steel 3 (qty 4 before SN 1875350)
14 999-0199 Nut 10-24 nylon insert lock zinc plated 16 (qty 17 before SN 1875350)
15 999-9006 Screw 5/16-18 x 3/4 pan head phillips stainless steel 2
16 999-0442 Nut 10-24 nylon insert lock stainless steel 2
17 272-5203 Screw 10-24 X 2 1/4 phillips pan 2
18 472-3506 O-RING SIZE 110 QUAD 1 (after SN 1875349)
19 999-0053 Washer #10 split lock plain finish 2
20 172-4958 Nut 10-24 acorn stainless steel 6
21 172-4536 Nut 1/2-14 conduit lock 2
22 172-2067 Washer 11/32 x 1/8 flat 2
23 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel 12
24a 172-0553 Washer 17/64 x 1/16 flat 6 (after SN 1875349)
24b 999-9118 Washer 3/16 x 1 1/16 fender 6 (before SN 1875350)
25 272-5204 Washer 1/4 x 1 3/8 x 15/16 neoprene 2
26 181-0274 Hose connector weldment 1
27 181-0279 Foam gasket 1
28 181-0280 Vac hose 1
29 181-0298 Bag guard 1
30 181-0271 Foam gasket 1
31 172-7968 Foam Gasket 1
32 181-0299 Bushing 6
33 181-0283 Handle assembly 1
34a 181-0300 Door assembly 1 (includes 34b-34f)
34b 181-0301 Twist latch 1
34c 181-1234 Foam Gasket 1
34d 181-1235 Foam Gasket 1
34e 181-0303 Gasket 2
34f 181-0302 Door Weldment 1
35 272-5210 Vacuum motor assembly 1
36 181-0309 Muffler assembly 1
37a 172-2882 Cloth bag 1 (includes 37b)
37b 172-6255 Paper bags (pkg of 6) 1
38 172-2883 Bag clip for cloth bag 1 (for 37a)
39 272-8820 Lever 1 (after SN 1875349)
40 472-7053 GASKET BASE 1 (after SN 1875349)
41 472-7054 BASE LEVER MOUNT 1 (after SN 1875349)
42 472-7056 BRACKET SPRING MOUNT 1
43 272-5360 Vacuum diverter assembly 1 (after SN 1875349)
44 372-3744 Upper tank 1
45a 181-0292 Electrical assembly 1
45b 272-2877 Electrical assembly 1 (before SN 1875350)
46a 272-2882 Vac hose assembly 1
46b 272-2879 Vacuum motor assembly 1 (before SN 1875350)
47 272-2883 Tube wand 1
48 272-0547 Plastic clamp 1
49 181-0269 P clamp 3
50 172-2341 Extension spring 1 (after SN 1875349)
51 181-0267 Switchbox weldment 1
52 472-7251 GUARD PANEL FOAM 1 (after SN 1875349)
53 172-2845 Cable 1 (before SN 1875350)
54 272-2873 Gasket 1 (before SN 1875350)
55 272-2881 Tube weldment 1 (before SN 1875350)
N/S 999-1069 Bolt 10-24 x 1/2 hex head stainless steel 1 (before SN 1875350)
N/S 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 6 (before SN 1875350)
N/S 172-9023 Cable clamp 1 (before SN 1875350)
N/S 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 4 (before SN 1875350)
N/S 272-2874 Plate (OBSOLETE) 1 (before SN 1875350)
