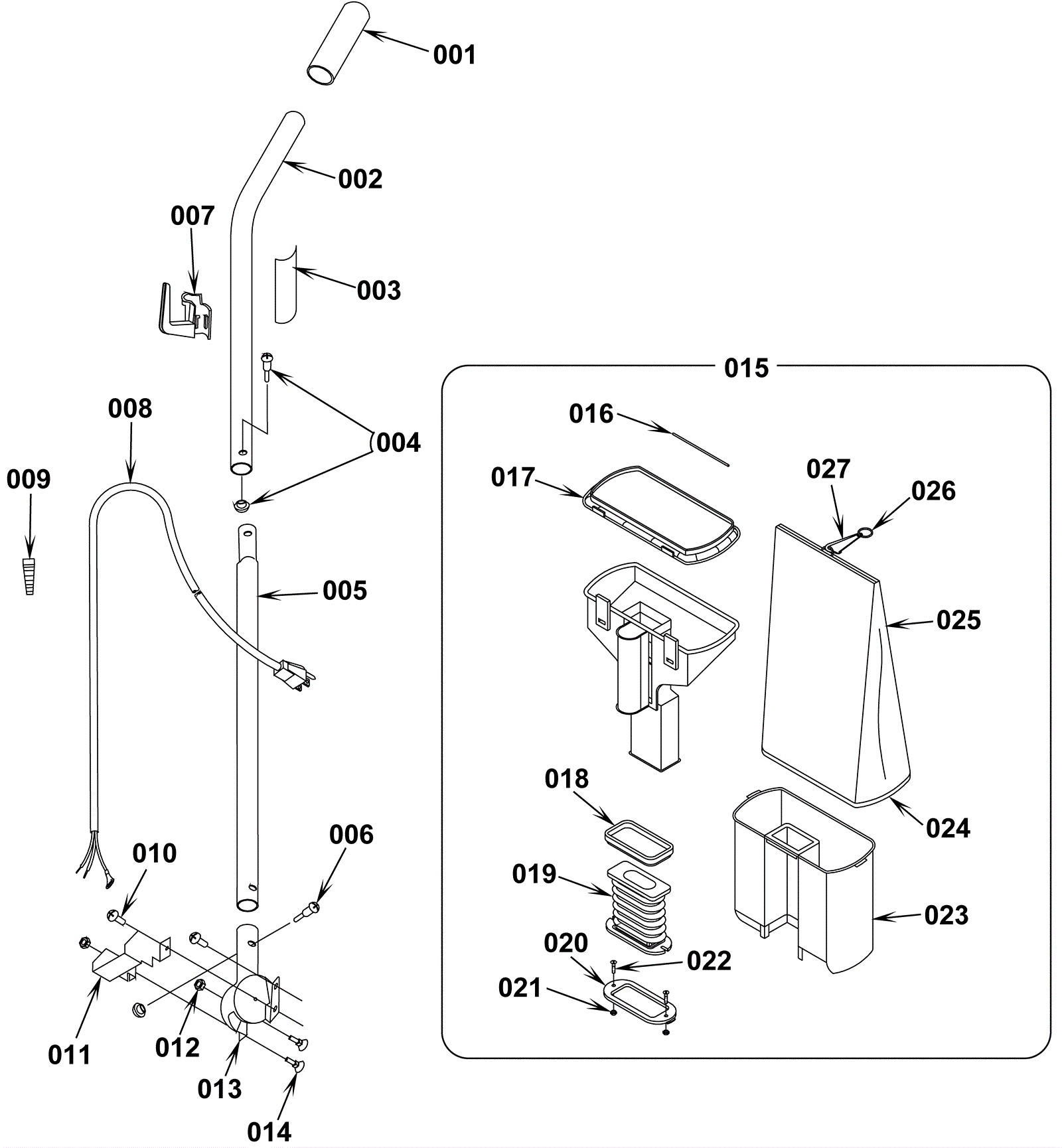

SM18G Handle Assembly - Dust Cup

#PartDescriptionPriceReqNotesAvailability
001 182-0082 Handle grip $4.61 1 usually ships 12-18 days
002 182-0074 Upper handle assembly $22.07 1 usually ships 12-20 days
003 181-0297 Warning decal $12.31 1 usually ships 1-5 days
004 182-0075 Screw and nut assembly $5.50 2 ships same day
005 182-0138 Lower handle tube $13.79 1 usually ships 12-20 days
006 182-0075 Screw and nut assembly $5.50 2 ships same day
007 182-0073 Cord retainer $4.80 1 usually ships 12-20 days
008a 272-0592 18/3 power cord 50 foot (yellow) $49.63 1 usually ships 17-28 days
008b 991-5007 18/3 replacement power cord 50 foot (black) $32.10 1 ships same day
009 182-0140 Strain relief $0.99 1 ships same day
010 182-0008 Motor mounting screw $4.61 2 usually ships 12-20 days
011 182-0175 Handle socket shield $2.75 1 usually ships 12-20 days
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
013 182-0079 Handle socket assembly $10.44 1 ships same day
014 182-0081 Bolt 10-24 x 5/8 carriage head $5.50 2 ships same day
015 182-0095 Dust cup assembly $131.71 1 (Includes items 016-027) usually ships 12-20 days
016 182-0085 Pin $4.61 1 usually ships 12-20 days
017 182-0086 Bag lid $7.69 1 ships same day
018 182-0089 Clamp $4.61 1 usually ships 12-20 days
019 182-0026 Bellows $23.84 1 usually ships 12-20 days
020 182-0025 Bellows clamp $7.81 1 ships same day
021 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
022 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
023 182-0094 Dust cup $24.77 1 usually ships 12-20 days
024 182-0093 Bag gasket $8.28 1 usually ships 12-20 days
025 182-0092 Bag assembly (black) (dust cup) $44.72 1 usually ships 12-20 days
026 182-0090 Steel ring $3.29 1 usually ships 1-5 days
027 182-0091 Snap hook $4.61 1 usually ships 12-20 days
