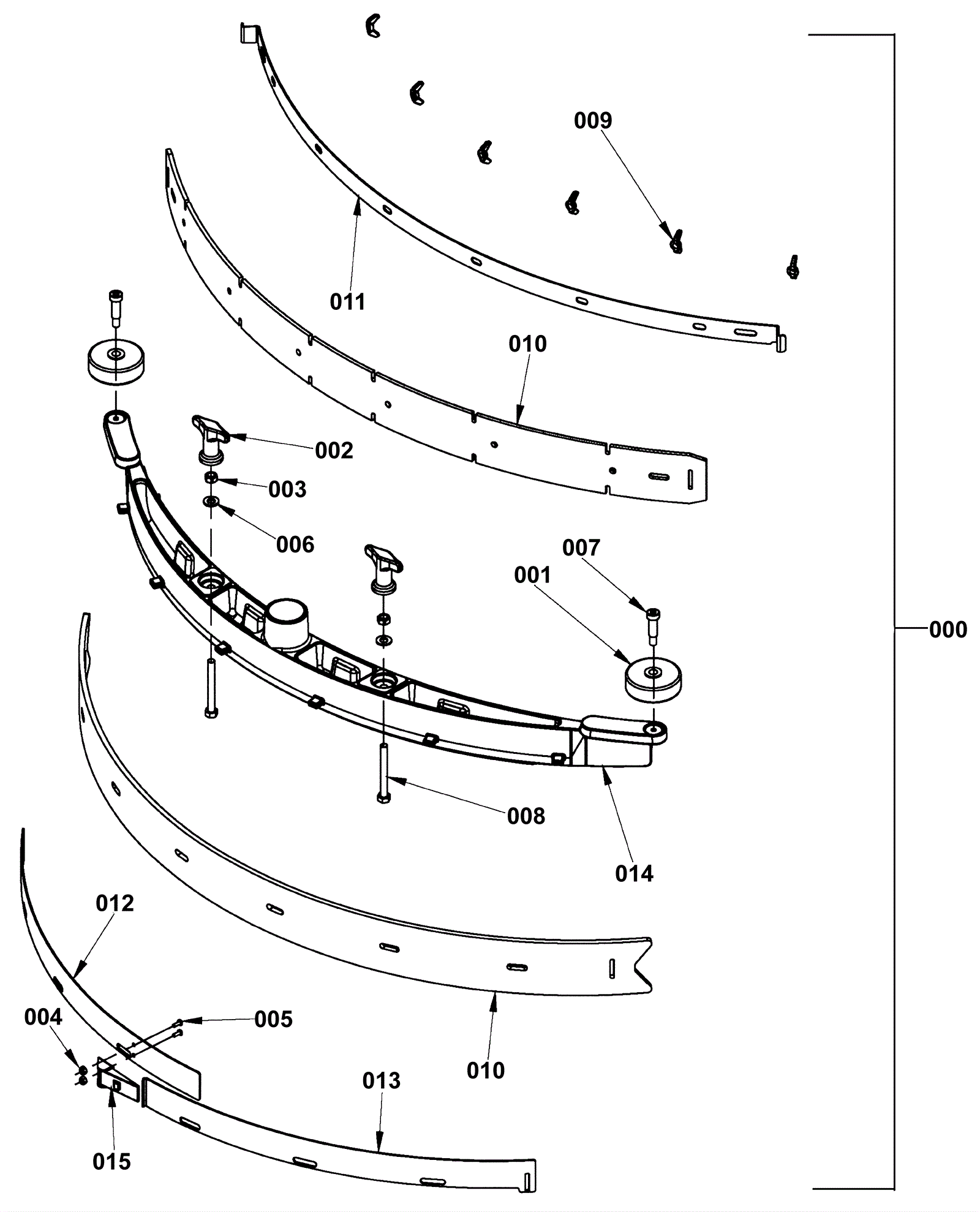

CONVERTAMATIC X26D-C Squeegee Assembly

#PartDescription ReqNotesAvailability
000a 272-2349 24 inch squeegee assembly 1 (includes 001-015) usually ships 13-16 days
000b 272-2350 26 inch squeegee assembly 1 (includes 001-015) usually ships 13-16 days
001a 172-0045 Guide wheel 2 (OEM) usually ships 13-16 days
001b 991-3051 Guide wheel 2 (NON-OEM) usually ships 13-17 days
002 172-4099 Nut 5/16-18 thumb 2 usually ships 13-16 days
003 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2 usually ships 11-14 days
004 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2 usually ships 11-14 days
005 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2 usually ships 11-14 days
006 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2 usually ships 11-14 days
007 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder 2 usually ships 11-14 days
008 272-2754 Screw 5/16-18 x 3 hex head full thread 2 usually ships 13-16 days
009 999-0603 Nut 1/4-20 wing stainless steel 6 usually ships 11-14 days
010a 272-2352 Squeegee blade kit 24 inch gum rubber 1 usually ships 13-16 days
010b 272-2353 Squeegee blade kit 24 inch linatex 1 usually ships 13-16 days
010c 172-3479 Squeegee blade kit 24 inch neoprene 1 usually ships 13-16 days
010d 272-2354 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) 1 (OEM) usually ships 13-16 days
010e 994-0057 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) 1 (NON-OEM) usually ships 7-8 days
010f 272-2355 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) 1 (OEM) usually ships 13-16 days
010g 994-0058 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) 1 (NON-OEM) usually ships 13-17 days
010h 172-3482 Squeegee blade kit 26 and 28 inch neoprene 1 usually ships 13-16 days
011a 172-3463 Front strap 1 (24 inch) usually ships 13-16 days
011b 172-3464 Front strap 1 (26 inch) usually ships 13-16 days
012a 172-3457 Left rear strap 1 (24 inch) usually ships 13-16 days
012b 172-3458 Left rear strap 1 (26 inch) usually ships 13-16 days
013a 172-3460 Right rear strap 1 (24 inch) usually ships 13-16 days
013b 172-3461 Right rear strap 1 (26 inch) usually ships 13-16 days
014a 172-3472 Squeegee weldment 1 (24 inch) usually ships 13-16 days
014b 172-3473 Squeegee weldment 1 (26 inch) usually ships 13-16 days
015 172-0094 Latch 1 usually ships 13-16 days
